Toyota 651220 — METER

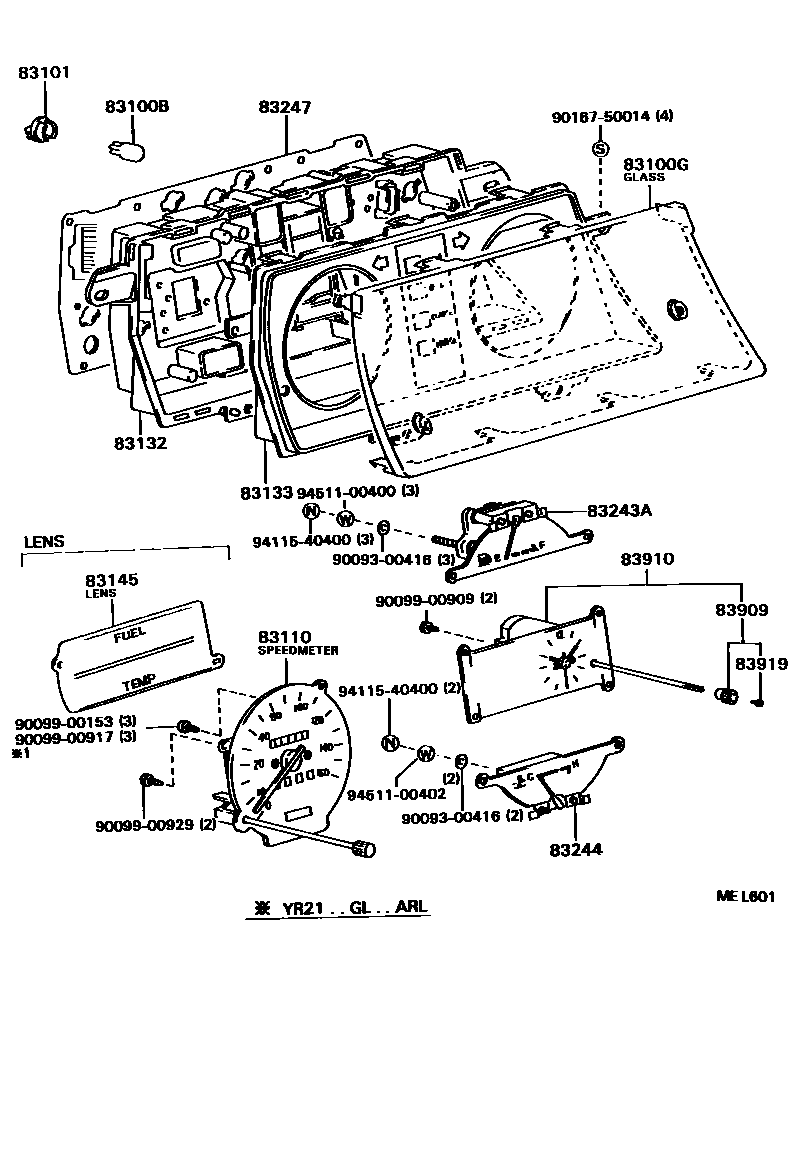

Parts diagram

83100BBULB, COMBINATION METER, NO.1

83100GGLASS, COMBINATION METER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

83110SPEEDOMETER ASSY

83132CASE, COMBINATION METER

83133PLATE, COMBINATION METER, NO.1

83145LENS, METER, NO.1

83243AGAUGE SUB-ASSY, FUEL RECEIVER

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83247PLATE, METER CIRCUIT

83909KNOB, CLOCK

83910CLOCK ASSY

83919SCREW, CLOCK

9009300416

9009900153

9009900909

9009900917

9009900929

9016750014

9411540400

9451100400

9451100402

22 parts on this diagram · 3 diagrams in section

METER for Toyota 651220

This section contains 38 genuine Toyota parts for the METER system of the Toyota 651220. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, KNOB, TRIP COUNTER.
