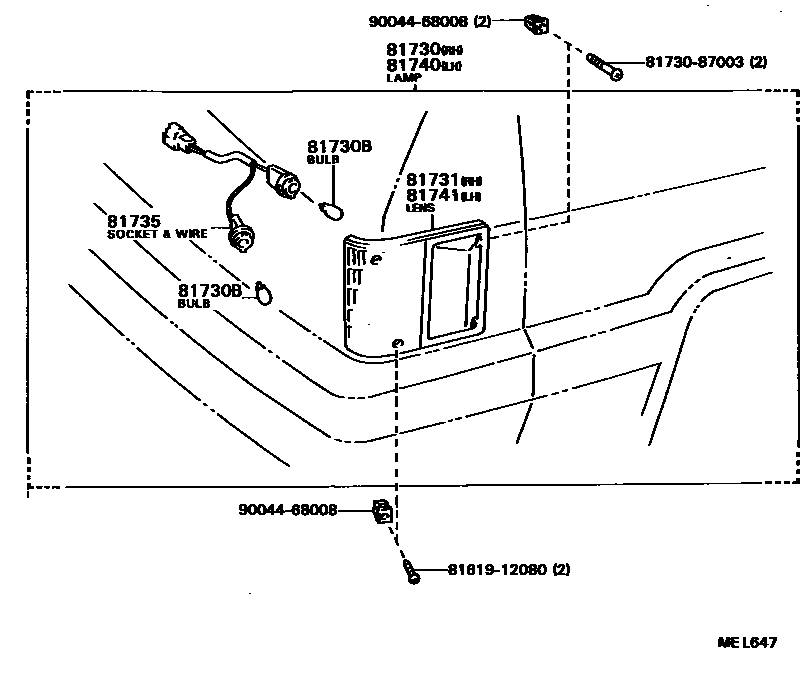

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-87004iYR21..GEN198808-199001

main81730-87007iYR2#,31..ARL198808-199001

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iYR2#,31..ARL; YR21..GEN198808-199001

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-87004iYR21..GEN198808-199001

main81731-87007iYR2#,31..ARL198808-199001

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iYR2#,31..ARL198808-199001

main81735-87004×2iYR21..GEN198808-199001

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-87004iYR21..GEN198808-199001

main81740-87007iYR2#,31..ARL198808-199001

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-87004iYR21..GEN198808-199001

main81741-87007iYR2#,31..ARL198808-199001

8161912080

main81619-12080

8173087003LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-87003

9004468008

main90044-68008

9 parts on this diagram · 2 diagrams in section
