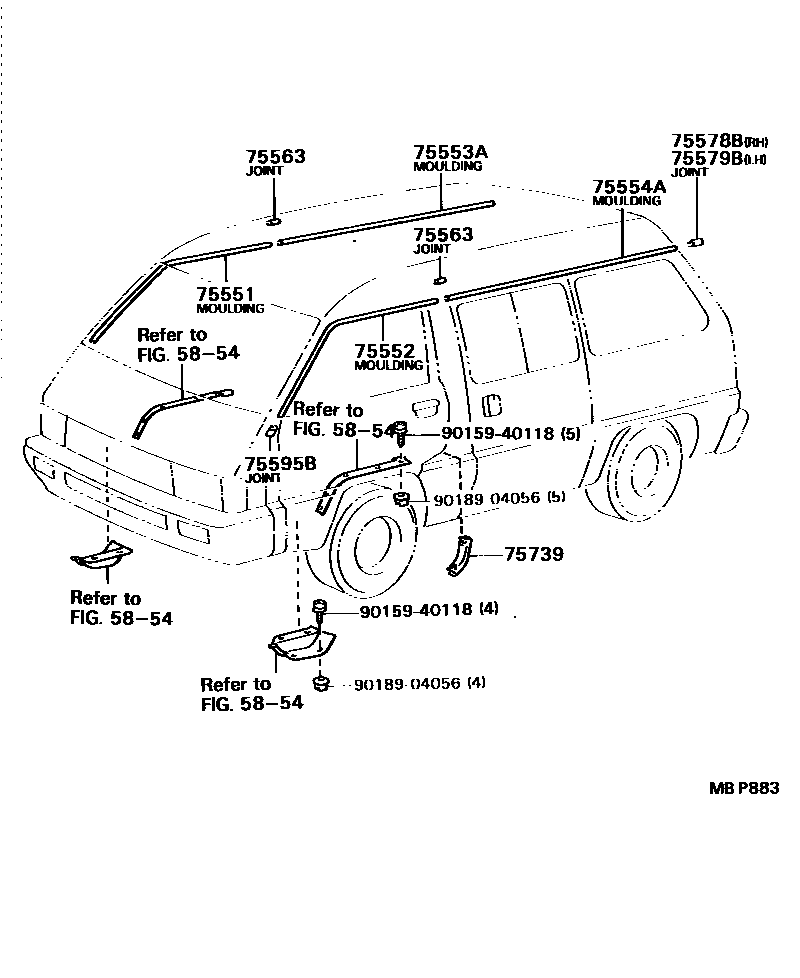

MOULDING

0001 1 0002 1

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-87005iYR2#,31..GL; YR2#..DLX198808-199001

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-87005iYR2#,31..GL; YR2#..DLX198808-199001

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-87005iYR2#,31..GL; YR2#..DLX198808-199001

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-87005iYR2#,31..GL; YR2#..DLX198808-199001

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-87001iYR2#,31..GL..ARL; YR2#..DLX; YR21..GEN198808-199001

RH

main75563-87002iYR2#,31..GL..ARL; YR2#..DLX; YR21..GEN198808-199001

LH

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-87001iYR2#..DLX198808-199001

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-87001iYR2#..DLX198808-199001

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iYR2#..DLX198808-199001

RH

main75596-95J00iYR2#..DLX198808-199001

LH

75739MOULDING, DOOR EDGE PROTECTION

main75739-30030iYR2#,31198808-199001

9015940118

main90159-40118

9018904056

main90189-04056

12 parts on this diagram · 2 diagrams in section
