LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87007iYR2#,31198808-199001

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87007iYR2#,31198808-199001

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-87009iYR2#,31198808-199001

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-87005iYR2#,31..ARL198808-199001

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-87007iYR21..GEN198808-199001

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-87004iYR2#,31198808-199001

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-87001-13iYR2#,31..MRF..GL198808-199001

GRAY,TRIM1#

main69056-87001-16iYR2#,31..GL198808-199001

BROWN,TRIM4#

69503CYLINDER SET, LOCK

main69005-28013-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main69005-28013-16iYR21..GEN198808-199001

BROWN,TRIM4#

main69005-87041-03iYR2#,31..MRF..GL..ARL198808-199001

GRAY,TRIM1#

main69005-87041-16iYR2#,31..GL..ARL198808-199001

BROWN,TRIM4#

main69005-87042iYR2#..DLX198808-199001

69503AKEY, BLANK

main90999-00067iYR2#,31198808-199001

MASTER KEY

main90999-00071iYR2#,31..GL198808-199001

SUB KEY

main90999-00124iYR2#,31198808-199001

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iYR2#,31198808-199001

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iYR2#,31198808-199001

69685PAD, LOCK CYLINDER

main69513-87001iYR2#,31198808-199001

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-20090iYR2#,31198808-198811

main69759-30050iYR21..GEN198810-199001

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iYR2#,31198808-198811

main69759-30050iYR2#,31198810-199001

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iYR21..GEN198808-198810

LH

main69759-20090iYR2#,31198808-198811

RH

main69759-30040iYR21..GEN198810-199001

LH

main69759-30050iYR2#,31198810-199001

RH

9015140005

main90151-40005

9356815012

main93568-15012

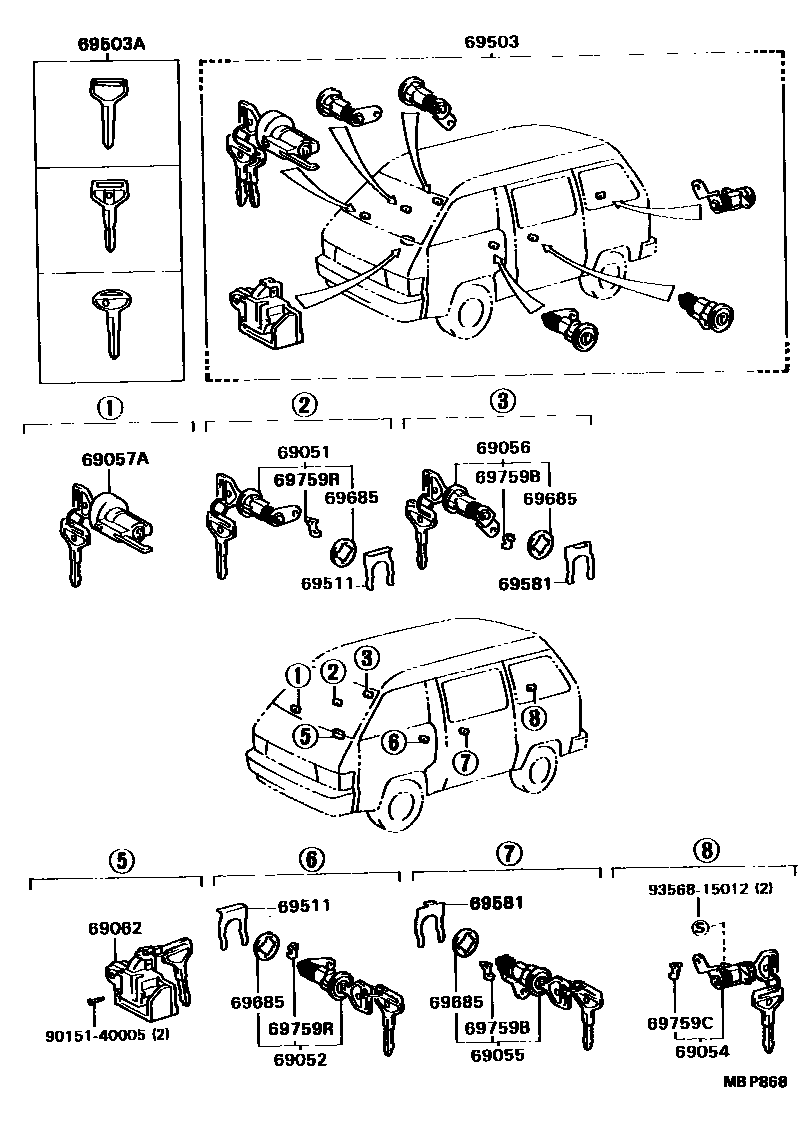

17 parts on this diagram · 1 diagram in section
