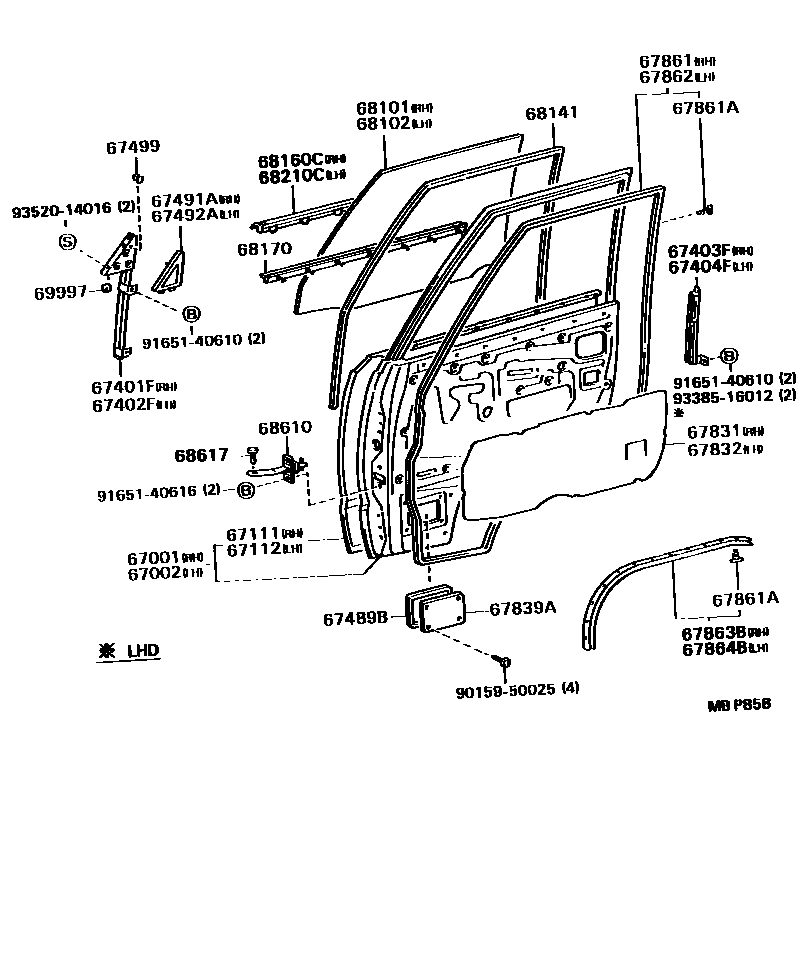

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-87013iYR2#,31198808-199001

main67001-87015iYR22..4FC198808-199001

W(LARGE SIDE PROTECTIVE M0ULDING)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-87013iYR2#,31198808-199001

main67002-87015iYR22..4FC198808-199001

W(LARGE SIDE PROTECTIVE M0ULDING)

67111PANEL, FRONT DOOR, OUTER RH

main67111-87004iYR2#,31198808-199001

main67111-87006iYR22..4FC198808-199001

W(LARGE SIDE PROTECTIVE M0ULDING)

67112PANEL, FRONT DOOR, OUTER LH

main67112-87003iYR2#,31198808-199001

main67112-87004iYR22..4FC198808-199001

W(LARGE SIDE PROTECTIVE M0ULDING)

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-87003iYR2#,31198808-199001

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-87002iYR2#,31198808-199001

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-28010iYR2#,31198808-199001

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-28010iYR2#,31198808-199001

67489BPACKING, FRONT DOOR LOWER COVER

main67489-87001×2iYR2#,31198808-199001

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-87001iYR2#,31198808-199001

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-87001iYR2#,31198808-199001

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iYR2#,31198808-199001

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-28020iYR21..GEN198808-199001

W(POWER WINDOW)

main67801-87004iYR2#,31..GL198808-199001

main67801-87005iYR31;YR2#..4FC..GL..ARL198808-199001

W(POWER WINDOW)

main67831-87002iYR2#..DLX198808-199001

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-28030iYR2#,31..GL198808-199001

main67802-87002iYR31;YR2#..4FC..GL..ARL198808-199001

W(POWER WINDOW)

main67831-87002iYR2#..DLX198808-199001

67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER

main67839-87001×2iYR2#,31198808-199001

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-87003iYR2#,31198808-199001

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×42iYR2#,31198808-199001

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-87003iYR2#,31198808-199001

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-87001iYR2#,31198808-199001

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-87001iYR2#,31198808-199001

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-87002iYR2#..DLX;YR21..GEN198808-199001

*TEM,T=4.0

main68111-87004iYR2#,31..MRF..GL..ARL; YR2#..DLX; YR21..GEN198808-199001

*TT,T=4.0

main68111-87005iYR2#,31..MRF..GL..ARL; YR21..GEN; YR22..HRF198808-199001

*TT,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-87002iYR2#..DLX;YR21..GEN198808-199001

*TEM,T=4.0

main68112-87003iYR2#,31..MRF..GL..ARL; YR2#..DLX; YR21..GEN198808-199001

*TT,T=4.0

main68112-87004iYR2#,31..MRF..GL..ARL; YR21..GEN; YR22..HRF198808-199001

*TT,T=4.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-87006×2iYR2#,31198808-199001

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-87001iYR2#,31198808-199001

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-87007iYR2#,31..GL198808-199001

RH

main68171-87005×2iYR2#..DLX198808-199001

main68220-87005iYR2#,31..GL198808-199001

LH

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-87001iYR2#,31198808-199001

68610CHECK ASSY, FRONT DOOR

main68610-12030×2iYR2#,31198808-199001

68617PIN, FRONT DOOR CHECK

main68617-90A00×2iYR2#,31198808-199001

69997SPACER, FRONT DOOR GLASS GUIDE

main69997-87001×2iYR2#,31198808-199001

9015950025

main90159-50025

9165140610

main91651-40610

9165140616

main91651-40616

9338516012

main93385-16012

9352014016

main93520-14016

34 parts on this diagram · 2 diagrams in section
