INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-08065-03iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#,TYPE A

sub90467-08065

main90467-08065-16iYR2#,31..GL198808-199001

BROWN,TRIM4#,TYPE A

sub90467-08065

main90467-12078-13iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#,TYPE B

sub90467-12078

main90467-12078-56iYR2#,31..GL198808-199001

BROWN,TRIM4#,TYPE B

sub90467-12078

62111CBOARD, COWL SIDE TRIM, RH

main62111-28010-13iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

sub62111-28010

main62111-28010-16iYR21..GEN198808-199001

SABLE,TRIM4#

sub62111-28010

main62111-87005-13iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

sub62111-87005

main62111-87005-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

sub62111-87005

62112BOARD, COWL SIDE TRIM, LH

main62112-87003-13iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#

sub62112-87003

main62112-87003-16iYR2#,31..GL198808-199001

SABLE,TRIM4#

sub62112-87003

62211GARNISH, FRONT PILLAR, RH

main62211-87004-06iYR2#..MRF..GL198808-199001

SABLE,TRIM4#

sub62211-87004

main62211-87004-13iYR2#..MRF..GL198808-199001

GRAY,TRIM1#

sub62211-87004

62212GARNISH, FRONT PILLAR, LH

main62212-87004-06iYR2#..MRF..GL198808-199001

SABLE,TRIM4#

sub62212-87004

main62212-87004-13iYR2#..MRF..GL198808-199001

GRAY,TRIM1#

sub62212-87004

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-28030-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

main62311-28030-06iYR2#,31..GL198808-199001

LIGHT SABLE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-28030-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

main62312-28030-06iYR2#,31..GL198808-199001

LIGHT SABLE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-28010-06iYR21..GEN198808-199001

W(TWIN SUN ROOF),SABLE,TRIM4#

sub62410-28010

main62410-28010-13iYR21..GEN198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62410-28010

main62410-87010-06iYR21..GL..ARL198808-199001

W(TWIN SUN ROOF),SABLE,TRIM4#

sub62410-87010

main62410-87010-13iYR21..GL..ARL198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62410-87010

main62410-87016-06iYR22..HRF198808-199001

SABLE,TRIM4#

sub62410-87016

main62410-87017-03iYR22..MRF..4FC198808-199001

W(TWIN SUN ROOF & CAPTAIN SEAT),GRAY,TRIM1#

sub62420-87017

main62410-87017-06iYR22..MRF..4FC198808-199001

W(TWIN SUN ROOF & CAPTAIN SEAT),SABLE,TRIM4#

sub62420-87017

main62410-87018-06iYR22..HRF198808-199001

W(CAPTAIN SEAT),SABLE,TRIM4#

sub62410-87018

main62411-28020-06iYR21..GEN198808-199001

SABLE,TRIM4#

sub62411-28020

main62411-28020-13iYR21..GEN198808-199001

GRAY,TRIM1#

sub62411-28020

main62411-28050-06iYR21..GEN198808-199001

W(DUAL AIR CONDITIONER),SABLE,TRIM4#

sub62411-28050

main62411-28050-13iYR21..GEN198808-199001

W(DUAL AIR CONDITIONER),GRAY,TRIM1#

sub62411-28050

main62411-87016-03iYR2#..DLX198808-199001

GRAY,TRIM1#

main62411-87021-06iYR2#,31..MRF..GL..ARL198808-199001

SABLE,TRIM4#

sub62411-87021

main62411-87021-13iYR2#,31..MRF..GL..ARL198808-199001

GRAY,TRIM1#

sub62411-87021

main62411-87029-03iYR21..DLX198808-199001

W(DUAL AIR CONDITIONER),GRAY,TRIM1#

sub62411-87029

main62411-87030-06iYR22..MRF..GL198808-199001

W(DUAL AIR CONDITIONER),SABLE,TRIM4#

sub62411-87030

main62411-87030-06iYR22..MRF..GL198808-199001

NEW ZEALAND SPEC OR W(DUAL AIR CONDITIONER),SABLE,TRIM4#

sub62411-87030

main62411-87030-13iYR22..MRF..GL198808-199001

W(DUAL AIR CONDITIONER),GRAY,TRIM1#

sub62411-87030

main62411-87030-13iYR22..MRF..GL198808-199001

NEW ZEALAND SPEC OR W(DUAL AIR CONDITIONER),GRAY,TRIM1#

sub62411-87030

main62411-87031-03iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT),GRAY,TRIM1#

sub62411-87031

main62411-87031-06iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT),SABLE,TRIM4#

sub62411-87031

main62411-87032-03iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#

sub62411-87032

main62411-87032-06iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT & DUAL AIR CONDITIONER),SABLE,TRIM4#

sub62411-87032

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-28020-06iYR21..GEN198808-199001

SABLE,TRIM4#

sub62412-28020

main62412-28020-13iYR21..GEN198808-199001

GRAY,TRIM1#

sub62412-28020

main62412-87013-03iYR2#..DLX198808-199001

GRAY,TRIM1#

main62412-87017-06iYR2#,31..MRF..GL..ARL198808-199001

SABLE,TRIM4#

sub62412-87017

main62412-87017-13iYR2#,31..MRF..GL..ARL198808-199001

GRAY,TRIM1#

sub62412-87017

main62412-87018-03iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT),GRAY,TRIM1#

sub62412-87018

main62412-87018-06iYR22..MRF..4FC198808-199001

W(CAPTAIN SEAT),SABLE,TRIM4#

sub62412-87018

main62420-28010-06iYR21..GEN198808-199001

W(TWIN SUN ROOF),SABLE,TRIM4#

sub62420-28010

main62420-28010-13iYR21..GEN198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62420-28010

main62420-87009-03iYR21..GL..ARL198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62420-87009

main62420-87009-06iYR21..GL..ARL198808-199001

W(TWIN SUN ROOF),SABLE,TRIM4#

sub62420-87009

main62420-87015-06iYR22..HRF198808-199001

SABLE,TRIM4#

sub62420-87015

main62420-87016-03iYR22..MRF..4FC198808-199001

W(TWIN SUN ROOF & CAPTAIN SEAT),GRAY,TRIM1#

sub62420-87016

main62420-87016-06iYR22..MRF..4FC198808-199001

W(TWIN SUN ROOF & CAPTAIN SEAT),SABLE,TRIM4#

sub62420-87016

main62420-87017-06iYR22..HRF198808-199001

W(CAPTAIN SEAT),SABLE,TRIM4#

sub62420-87017

62413AGARNISH, CENTER PILLAR, LOWER RH

main62041-28010-06iYR21..GEN198808-199001

SABLE,TRIM4#

main62041-28010-23iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main62041-87001iYR22..HRF198808-199001

main62041-87001-06iYR2#,31..MRF..GL..ARL198808-199001

SABLE,TRIM4#

main62041-87001-23iYR2#,31..MRF..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

main62413-87001-03iYR2#..DLX198808-199001

GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90044-68035-06iYR2#,31..GL198808-199001

BROWN,TRIM4#

sub90044-68035

main90044-68035-13iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#

sub90044-68035

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-28010-06iYR21..GEN198808-199001

SABLE,TRIM4#

main62042-28010-23iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main62042-87001iYR22..HRF198808-199001

main62042-87001-06iYR2#,31..MRF..GL..ARL198808-199001

SABLE,TRIM4#

main62042-87001-23iYR2#,31..MRF..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

main62414-87004-03iYR2#..DLX198808-199001

GRAY,TRIM1#

62425BCOVER, CENTER PILLAR GARNISH, NO.3 RH

main62425-87001-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62425-87001

main62425-87001-13iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#

sub62425-87001

main62425-87001-16iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

sub62425-87001

main62425-87001-26iYR2#,31..GL198808-199001

SABLE,TRIM4#

sub62425-87001

62426BCOVER, CENTER PILLAR GARNISH, NO.3 LH

main62426-87001-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62426-87001

main62426-87001-13iYR2#,31..MRF198808-199001

SHADOW GRAY,TRIM1#

sub62426-87001

main62426-87001-16iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

sub62426-87001

main62426-87001-26iYR2#,31..GL198808-199001

SABLE,TRIM4#

sub62426-87001

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-87017-06iYR22..HRF198808-199001

LIGHT SABLE,TRIM4#

sub62471-87017

main62471-87018-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62471-87018

main62471-87018-06iYR2#,31..MRF..GL198808-199001

LIGHT SABLE,TRIM4#

sub62471-87018

main62471-87024-03iYR2#..MRF..GL198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62471-87024

main62471-87024-06iYR2#..MRF..GL198808-199001

W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#

sub62471-87024

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-87017-06iYR22..HRF198808-199001

LIGHT SABLE,TRIM4#

sub62472-87017

main62472-87018-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62472-87018

main62472-87018-06iYR2#,31..MRF..GL198808-199001

LIGHT SABLE,TRIM4#

sub62472-87018

main62472-87024-03iYR2#..MRF..GL198808-199001

W(TWIN SUN ROOF),GRAY,TRIM1#

sub62472-87024

main62472-87024-06iYR2#..MRF..GL198808-199001

W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#

sub62472-87024

62473ABOARD, REAR PILLAR, RH

main62473-87001-03iYR21..GEN198808-199001

GRAY,TRIM1#

sub62473-87001

main62473-87001-06iYR21..GEN198808-199001

LIGHT SABLE,TRIM4#

sub62473-87001

main62473-87003-03iYR2#,31..MRF..ARL198808-199001

GRAY,TRIM1#

sub62473-87003

main62473-87003-06iYR2#,31..GL..ARL198808-199001

LIGHT SABLE,TRIM4#

sub62473-87003

62474ABOARD, REAR PILLAR, LH

main62474-87001-03iYR21..GEN198808-199001

GRAY,TRIM1#

sub62474-87001

main62474-87001-06iYR21..GEN198808-199001

LIGHT SABLE,TRIM4#

sub62474-87001

main62474-87003-03iYR2#,31..MRF..ARL198808-199001

GRAY,TRIM1#

sub62474-87003

main62474-87003-06iYR2#,31..GL..ARL198808-199001

LIGHT SABLE,TRIM4#

sub62474-87003

62571EGARNISH, REAR PILLAR, LOWER RH

main62571-87002-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62571-87002

main62571-87002-06iYR2#,31..GL198808-199001

LIGHT SABLE,TRIM4#

sub62571-87002

62572EGARNISH, REAR PILLAR, LOWER LH

main62572-87002-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub62572-87002

main62572-87002-06iYR2#,31..GL198808-199001

LIGHT SABLE,TRIM4#

sub62572-87002

62638AGARNISH, QUARTER PILLAR, RH

main62638-28040-06iYR21..GEN198808-199001

SABLE,TRIM4#

sub62638-28040

main62638-28040-13iYR21..GEN198808-199001

GRAY,TRIM1#

sub62638-28040

main62638-87004-06iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

sub62638-87004

main62638-87004-13iYR2#,31..MRF..GL..ARL198808-199001

GRAY,TRIM1#

sub62638-87004

main62638-87005-03iYR2#..DLX198808-199001

GRAY,TRIM1#

sub62638-87005

62639AGARNISH, QUARTER PILLAR, LH

main62639-28040-06iYR21..GEN198808-199001

SABLE,TRIM4#

sub62639-28040

main62639-87003-06iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

sub62639-87003

main62639-87003-13iYR2#,31..MRF..GL..ARL198808-199001

GRAY,TRIM1#

sub62639-87003

main62639-87004-03iYR2#..DLX198808-199001

GRAY,TRIM1#

sub62639-87004

6777287002WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87002

9016740025

main90167-40025

9046708038

main90467-08038

9046708047

main90467-08047

9046805011

main90468-05011

9356056016

main93560-56016

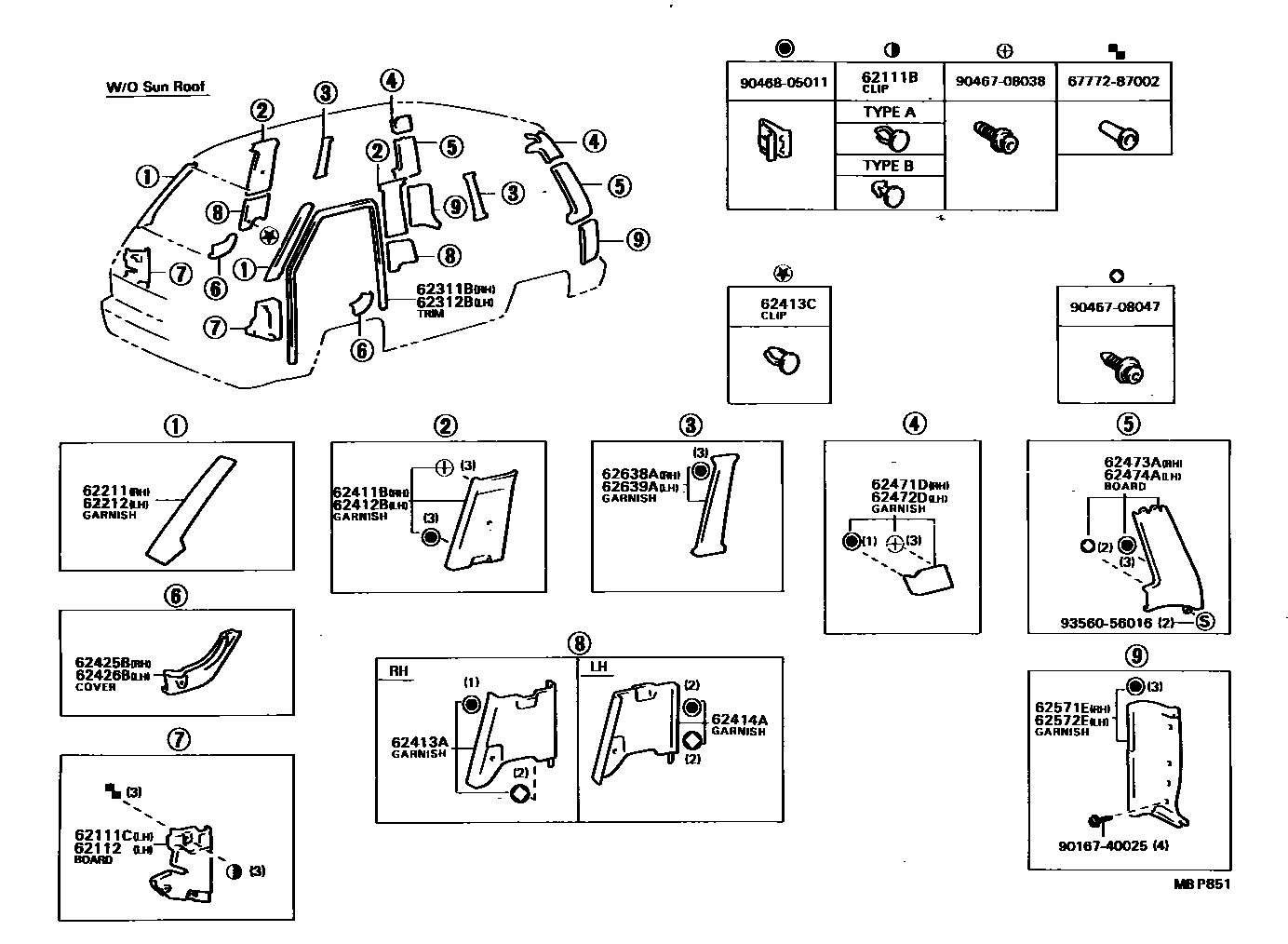

28 parts on this diagram · 4 diagrams in section
