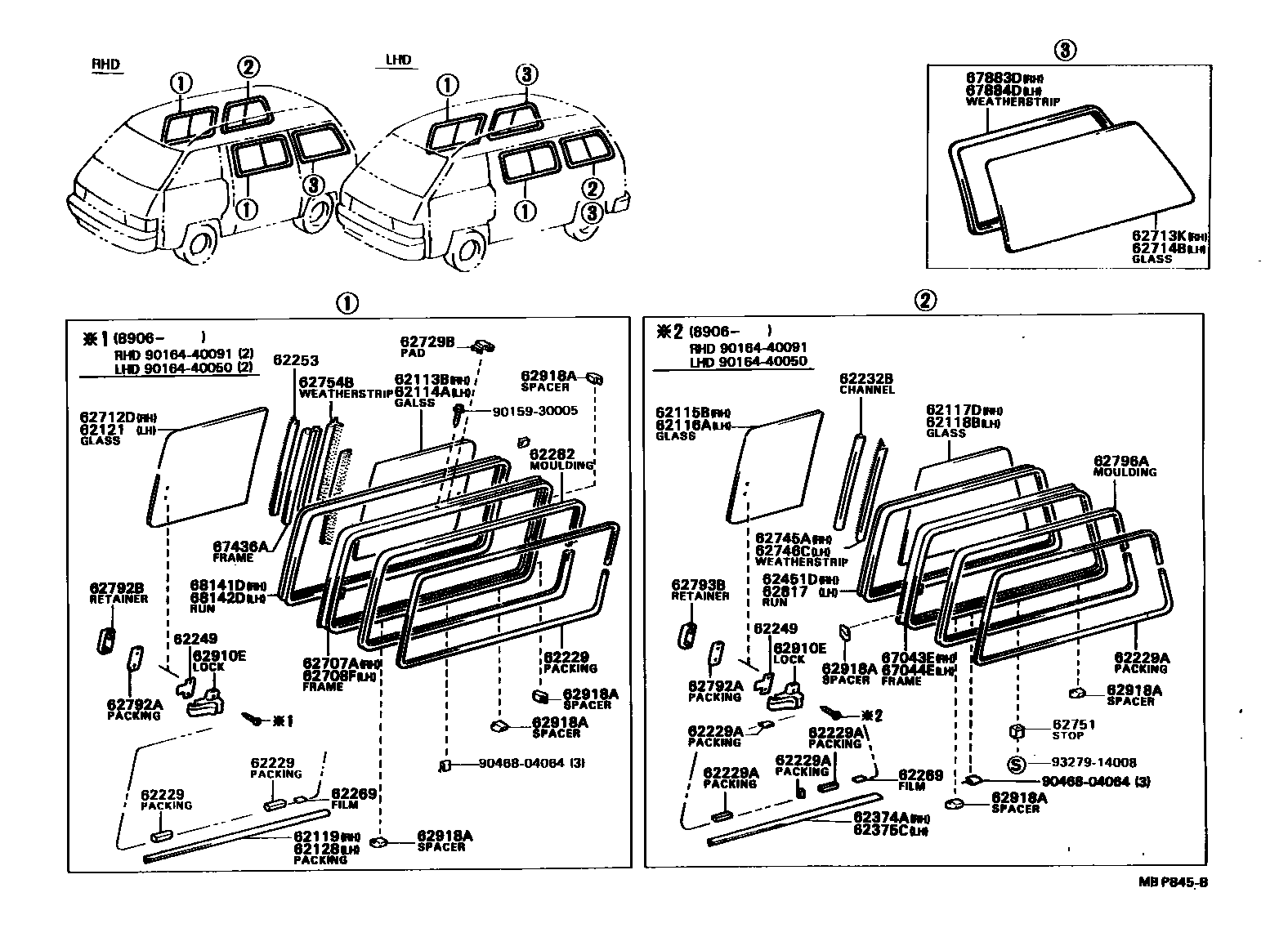

SIDE WINDOW
62113BGLASS, SIDE FRONT WINDOW, REAR RH
*TT,T=4.0
*TT,T=4.0,BRONZE
*TEM,T=4.0
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0,BRONZE
62114AGLASS, FRONT SIDE WINDOW, REAR LH
62115BGLASS, REAR SIDE WINDOW, FRONT RH
62116AGLASS, REART SIDE WINDOW, FRONT LH
62117DGLASS, REART SIDE WINDOW, REAR RH
62118BGLASS, REART SIDE WINDOW, REAR LH
62119PACKING, SIDE FRONT WINDOW, RH
62121GLASS, FRONT SIDE WINDOW, FRONT LH
*TT,T=4.0
*TEM,T=4.0
*TT,T=4.0,BRONZE
*TT,T=4.0
*TT,T=4.0,BRONZE
*TEM,T=4.0
62128PACKING, SIDE FRONT WINDOW, LH
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
L=20
L=15
L=50
62232BCHANNEL, SIDE WINDOW GLASS
62249PLATE, SIDE WINDOW, RH
62253WEATHERSTRIP, SIDE WINDOW, CENTER
62269FILM, SIDE WINDOW FRAME, RH
62282MOULDING, SIDE FRONT WINDOW
W(TWIN SUN ROOF)
W(TWIN SUN ROOF)
62374APACKING, SIDE REAR WINDOW, RH
62375CPACKING, SIDE REAR WINDOW, LH
62451DRUN, REAR SIDE WINDOW, RH
62712DGLASS, SIDE FRONT WINDOW, FRONT RH
62713KGLASS, SIDE WINDOW, REAR RH
*TT,T=3.5
*TT,T=4.0,BRONZE
*TEM,T=3.5
62714BGLASS, SIDE WINDOW, REAR LH
*TT,T=3.5
*TT,T=4.0,BRONZE
*TEM,T=3.5
62729BPAD, WINDOW CENTER SASH
62745AWEATHERSTRIP, SIDE WINDOW GLASS, RH
62746CWEATHERSTRIP, SIDE WINDOW GLASS, LH
62751STOP, SIDE WINDOW FIX GLASS
62754BWEATHERSTRIP, SIDE FRONT WINDOW, CENTER NO.2
62792APACKING, SIDE WINDOW LOCK, RH
62792BRETAINER, SIDE WINDOW LOCK
62793BRETAINER, SIDE WINDOW LOCK, RH
62796AMOULDING, SIDE REAR WINDOW
W(TWIN SUN ROOF)
62817RUN, SIDE REAR WINDOW, LH
62910ELOCK ASSY, SIDE WINDOW
62918ASPACER, SIDE WINDOW FRAME
SIDE
LOWER
67043EFRAME SUB-ASSY, SIDE REAR WINDOW, RH
sub67043-87004
67044EFRAME SUB-ASSY, SIDE REAR WINDOW, LH
67436AFRAME, SIDE FRONT WINDOW, CENTER
67883DWEATHERSTRIP, QUARTER WINDOW, REAR
67884DWEATHERSTIP, SIDE WINDOW, REAR LH
68141DRUN, SIDE FRONT WINDOW, RH
68142DRUN, SIDE FRONT WINDOW, LH
9015930005
main90159-30005
9016440050
main90164-40050
9016440091
main90164-40091
9046804064
main90468-04064
9327914008
main93279-14008
48 parts on this diagram · 1 diagram in section
