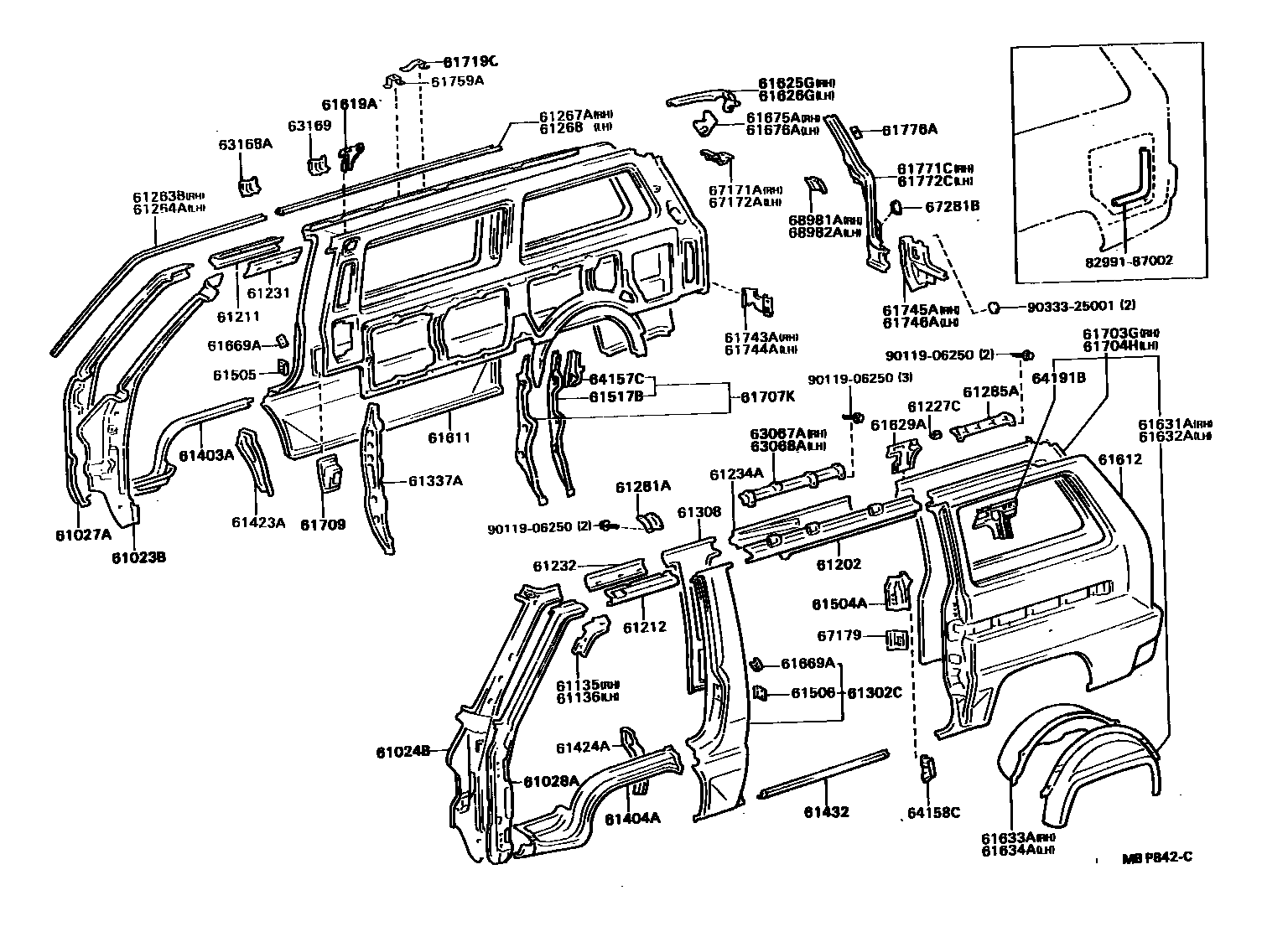

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(RADIO)
61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61227CBRACKET, REAR DOOR RAIL
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
W(TWIN SUN ROOF)
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
W(LARGE SIDE PROTECTIVE M0ULDING)
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
W(CAPTAIN SEAT)
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61403APANEL SUB-ASSY, FENDER, RH
61404APANEL SUB-ASSY, FENDER, LH
61423APANEL, FENDER, INNER LOWER RH
61424APANEL, FENDER, INNER LOWER LH
61432PANEL, ROCKER, OUTER REAR LH
61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61517BREINFORCEMENT, QUARTER LOCK PILLAR, RH
61619AREINFORCEMENT, QUARTER PANEL
61626GEXTENSION, QUARTER PANEL, REAR LH
61629AREINFORCEMENT, QUARTER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
sub61632-87005
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(TWIN SUN ROOF)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61669ARETAINER, FRONT DOOR OPEN SWITCH SET
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
W(TWIN SUN ROOF)
W(TWIN SUN ROOF)
W(TWIN SUN ROOF & CAPTAIN SEAT)
W(CAPTAIN SEAT)
W(CAPTAIN SEAT)
61707KREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH
61709BOX SUB-ASSY, FUEL INLET
61719CBRACKET, ROOF SIDE RAIL, RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61759ABRACKET, ROOF SIDE REINFORCEMENT
61771CFRAME, BACK DOOR OPENING SIDE, RH
61772CFRAME, BACK DOOR OPENING SIDE, LH
63067ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, RH
63068ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, LH
63168ARETAINER, ROOF REINFORCEMENT, NO.1
63169RETAINER, ROOF REINFORCEMENT, NO.2
64157CREINFORCEMENT, REAR PILLAR, LOWER RH
64158CREINFORCEMENT, REAR PILLAR, LOWER LH
64191BREINFORCEMENT, REAR PILLAR, UPPER RH
sub64191-87001
67171AREINFORCEMENT, DOOR HINGE, RH
67172AREINFORCEMENT, DOOR HINGE, LH
67179RETAINER, REAR DOOR SWITCH, LH
67281BSTOPPER, BACK DOOR, LOWER
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
8299187002WIRE, FUSIBLE LINK REPAIR
main82991-87002
9011906250
main90119-06250
9033325001
main90333-25001
73 parts on this diagram · 3 diagrams in section
