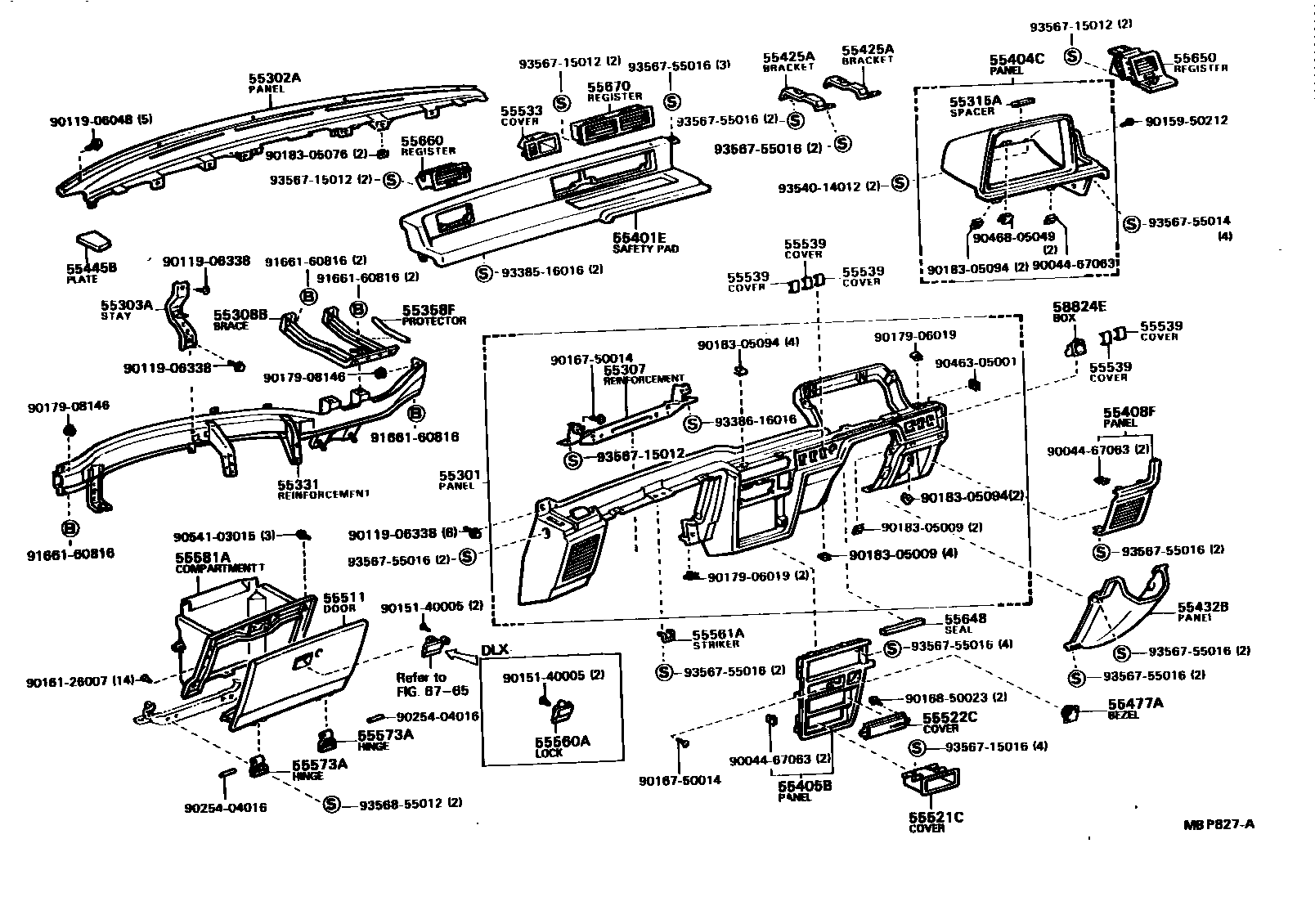

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28020-13iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55301-28020-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55301-87006-13iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55301-87006-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28030iYR21..GEN198808-199001

main55302-87002iYR2#,31..ARL198808-199001

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-28010iYR21..GEN198808-199001

main55303-87003iYR2#,31..ARL198808-199001

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-87001iYR2#,31198808-199001

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-87002iYR2#,31..ARL198808-199001

55315ASPACER, INSTRUMENT PANEL, NO.1

main55316-87001×2iYR2#,31198808-199001

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-28040iYR21..GEN198808-199001

main55330-87002iYR2#,31..ARL198808-199001

55358FPROTECTOR, EDGE

main55358-28010×2iYR2#,31..ARL; YR21..GEN198808-199001

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-28030-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55401-28030-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55401-87007-03iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55401-87007-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28010-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55404-28010-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55404-87023-03iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55404-87023-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28011-01iYR21..GEN198808-199001

BLACK,TRIM1#,4#

main55405-87010-01iYR2#,31..MRF..ARL198808-199001

BLACK,TRIM1#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-28020-13iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55408-28020-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55408-87001-13iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55408-87001-16iYR2#,31..MRF..GL..ARL198808-199001

SABLE,TRIM4#

55425ABRACKET, METER HOOD SET

main55425-87001×2iYR2#,31198808-199001

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-87005-13iYR2#,31..MRF..GL; YR2#..DLX198808-199001

SHADOW GRAY,TRIM1#; W(TILT STEERING),SHADOW GRAY,TRIM1#

main55432-87005-16iYR2#,31..GL198808-199001

SABLE,TRIM4#

main55432-87006-03iYR2#..DLX198808-199001

SHADOW GRAY,TRIM1#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-87001×2iYR2#,31..ARL; YR21..GEN198808-199001

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-87001iYR2#,31198808-199001

55511DOOR, GLOVE COMPARTMENT

main55511-28010-13iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55511-28010-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55511-87006-03iYR2#..DLX198808-199001

SHADOW GRAY,TRIM1#

main55511-87007-13iYR2#,31..MRF..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

main55511-87007-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-87002iYR2#,31..MRF198808-199001

55522CCOVER, RADIO RECEIVER OPENING

main55522-20060iYR21..GEN198808-199001

55533COVER, AUTO CLOCK HOLE

main55423-28020-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55423-28020-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55423-87002-03iYR22,31..MRF;YR21..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

main55423-87002-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

main55533-87002-03iYR21..DLX198808-199001

SHADOW GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iYR2#,31198808-199001

BLACK,TRIM1#,4#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-13iYR2#..DLX198808-199001

GRAY,TRIM1#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iYR2#,31198808-199001

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-32010iYR2#,31198808-199001

LH

main55573-87001iYR2#,31198808-199001

RH

55581ACOMPARTMENT, GLOVE

main55581-87002iYR21..GEN198808-199001

main55581-87003iYR2#,31..ARL198808-199001

55648SEAL, INSTRUMENT PANEL UNDER COVER, NO.1

main55648-87001iYR2#,31..GL; YR2#..DLX198808-199001

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28020-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55650-28020-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55650-87002-03iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55650-87002-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28020-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55660-28020-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55660-87002-03iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55660-87002-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28010-03iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#

main55670-28010-16iYR21..GEN198808-199001

SABLE,TRIM4#

main55670-87002-03iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

main55670-87002-16iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

58824EBOX, INSTRUMENT PANEL COIN

main58824-87002iYR2#,31..MRF198808-199001

6765LOCK CYLINDER SET

→ Go to FIG 67-65

9004467063

main90044-67063

9011906048

main90119-06048

9011906338

main90119-06338

9015140005

main90151-40005

9015950212

main90159-50212

9016126007

main90161-26007

9016750014

main90167-50014

9016850023

main90168-50023

9017906019

main90179-06019

9017908146

main90179-08146

9018305009

main90183-05009

9018305076

main90183-05076

9018305094

main90183-05094

9025404016

main90254-04016

9046305001

main90463-05001

9046805049

main90468-05049

9054103015

main90541-03015

9166160816

main91661-60816

9338516016

main93385-16016

9338616016

main93386-16016

9354014012

main93540-14012

9356715012

main93567-15012

9356715016

main93567-15016

9356755014

main93567-55014

9356755016

main93567-55016

9356855012

main93568-55012

57 parts on this diagram · 2 diagrams in section
