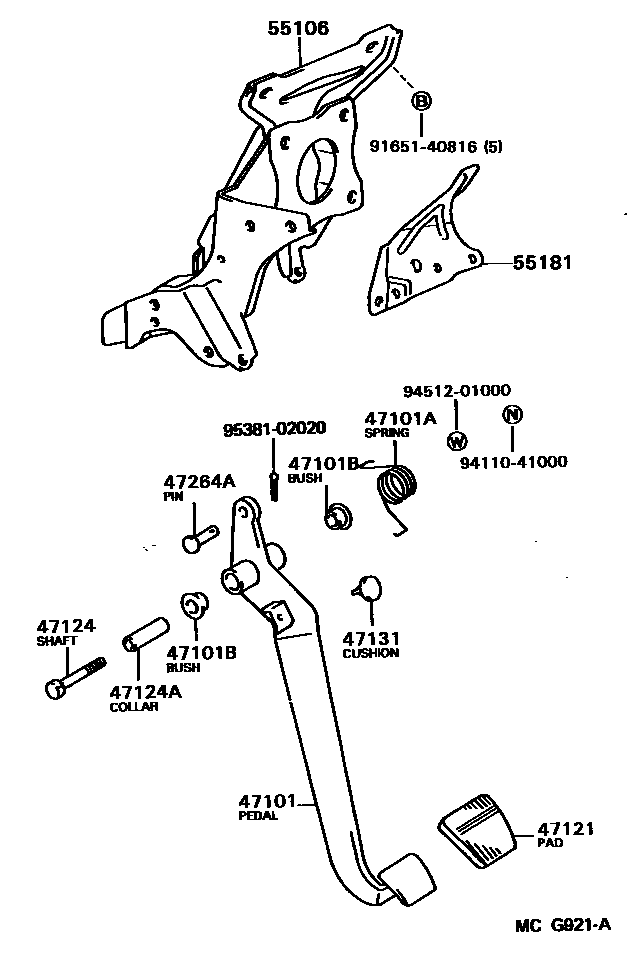

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-28070iYR2#,31198808-199001

main47101-28090iYR22..4FC198808-199001

W(CRUISE CONTROL)

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35131iYR2#,31198808-199001

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iYR2#,31198808-199001

47121PAD, BRAKE PEDAL

main31321-14020iYR2#,31198808-199001

47124SHAFT, BRAKE PEDAL

main91121-51070iYR2#,31198808-199001

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iYR2#,31198808-199001

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iYR2#,31; YR22..4FC198808-199001

W(CRUISE CONTROL)

47264APIN(FOR PUSH ROD)

main90240-08070iYR2#,31198808-199001

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28010iYR21..5F..GEN198808-199001

main55106-28020iYR21..4FC..GEN198808-199001

main55106-87006iYR2#,31..5F..ARL198808-199001

main55106-87007iYR2#,31..4FC..ARL198808-199001

main55106-87009iYR22..4FC198808-199001

W(CRUISE CONTROL)

55181SUPPORT, CLUTCH PEDAL

main55181-28010iYR21..5F..GEN198808-199001

9165140816

main91651-40816

9411041000

main94110-41000

9451201000

main94512-01000

9538102020

main95381-02020

14 parts on this diagram · 1 diagram in section
