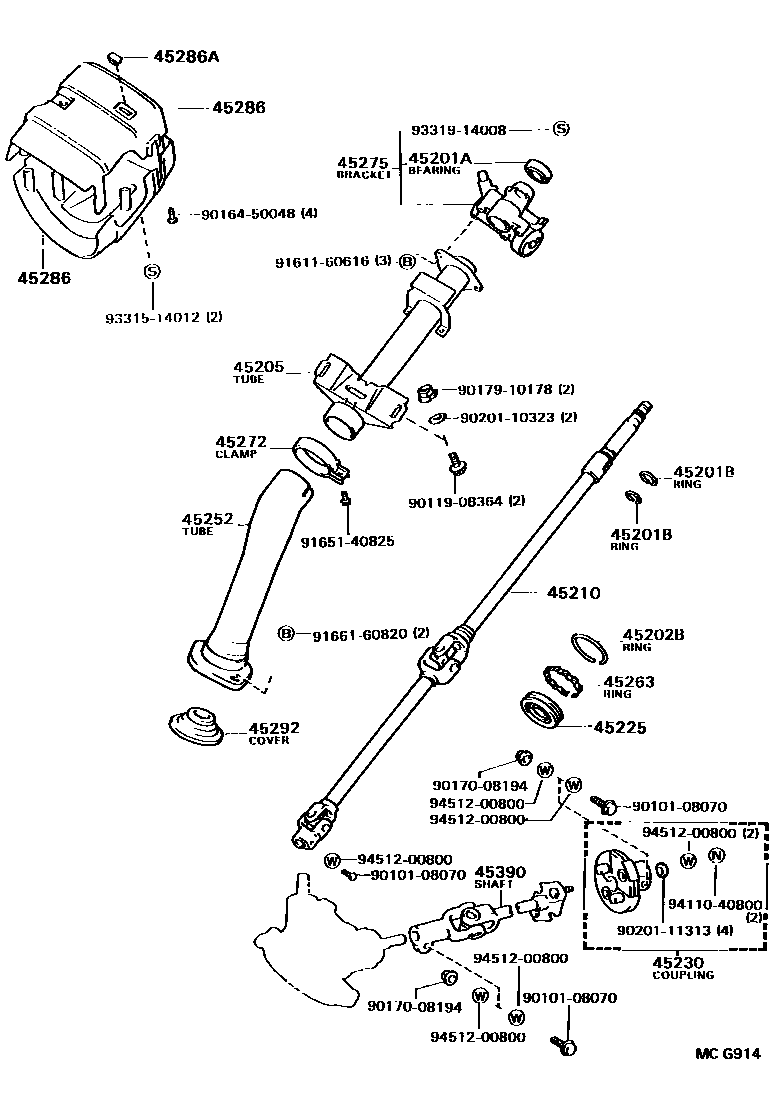

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iYR2#,31..GL; YR2#..DLX198808-199001

UPR

main90363-18038iYR2#..DLX198808-199001

main90363-28001iYR2#,31..GL; YR2#..DLX198808-199001

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iYR2#,31198808-199001

T=1.20

main90520-17269iYR2#,31198808-198902

T=1.20

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iYR2#,31198808-199001

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28060iYR2#..DLX198808-199001

main45205-28070iYR2#,31..GL; YR2#..DLX198808-199001

W(TILT STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-22050iYR2#,31..GL; YR2#..DLX198808-199001

W(TILT STEERING)

main45210-28060iYR2#..DLX198808-199001

45225BLOCK, BEARING

main45225-26010iYR2#,31198808-199001

45230COUPLING ASSY, FLEXIBLE

main45230-27080iYR2#..MRF198808-199001

main45230-27090iYR2#..MRF; YR22..HRF198808-199001

W(POWER STEERING)

main45230-27100iYR31198808-199001

45252TUBE, STEERING COLUMN, LOWER

main45252-28070iYR2#,31..ARL198808-199001

main45252-28090iYR21..GEN198808-199001

45263RING, STEERING COLUMN, NO.1

main45263-32010iYR2#,31198808-199001

45272CLAMP, STEERING COLUMN, LOWER

main45272-28030iYR2#,31198808-199001

45275BRACKET, STEERING COLUMN, UPPER

main45280-28041iYR2#,31..GL..ARL; YR2#..DLX198808-199001

W(TILT STEERING)

main45280-28051iYR2#..DLX198808-199001

main45280-28061iYR21..GEN198808-199001

45286COVER, STEERING COLUMN

main45286-28051-06iYR2#,31..GL..ARL198808-199001

BROWN,TRIM4#,UPR

main45286-28051-13iYR2#,31..MRF..GL..ARL; YR2#..DLX198808-199001

SHADOW GRAY,TRIM1#,UPR; W(TILT STEERING),SHADOW GRAY,TRIM1#,UPR

main45286-28060-03iYR2#..DLX198808-199001

SHADOW GRAY,TRIM1#,UPR

main45286-28082-06iYR21..GEN198808-199001

BROWN,TRIM4#,UPR

main45286-28082-23iYR21..GEN198808-199001

SHADOW GRAY,TRIM1#,UPR

main45287-28051-06iYR2#,31..GL..ARL198808-199001

BROWN,TRIM4#,LWR

main45287-28051-13iYR2#,31..MRF..GL..ARL; YR2#..DLX198808-199001

SHADOW GRAY,TRIM1#,LWR; W(TILT STEERING),SHADOW GRAY,TRIM1#,LWR

main45287-28060-03iYR2#..DLX198808-199001

SHADOW GRAY,TRIM1#,LWR

main45287-28082-03iYR21..GEN198808-199001

GRAY,TRIM1#,LWR

main45287-28082-06iYR21..GEN198808-199001

BROWN,TRIM4#,LWR

45286ACOVER, STEERING COLUMN, NO.2

main45286-28100-06iYR2#,31..GL..ARL198808-199001

BROWN,TRIM4#

main45286-28100-13iYR2#,31..MRF..ARL198808-199001

SHADOW GRAY,TRIM1#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-28030iYR2#,31198808-199001

45390SHAFT ASSY, STEERING TORQUE

main45390-28040iYR2#..MRF198808-199001

main45390-28050iYR2#..MRF; YR22..HRF198808-199001

W(POWER STEERING)

main45390-28060iYR31198808-199001

9010108070

main90101-08070

9011908364

main90119-08364

9016450048

main90164-50048

9017008194

main90170-08194

9017910178

main90179-10178

9020110323

main90201-10323

9020111313

main90201-11313

9161160616

main91611-60616

9165140825

main91651-40825

9166160820

main91661-60820

9331514012

main93315-14012

9331914008

main93319-14008

9411040800

main94110-40800

9451200800

main94512-00800

29 parts on this diagram · 4 diagrams in section
