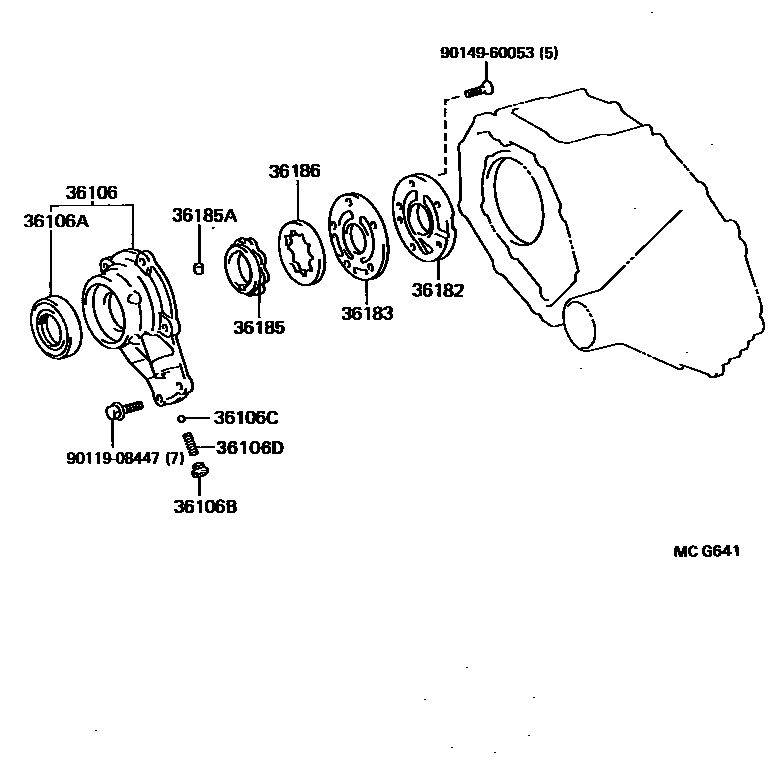

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-28010iYR31..5F198808-199001

main36106-28020iYR31..4FC198808-199001

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iYR31..4FC198808-199001

main90316-40002iYR31..5F198808-199001

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iYR31198808-199001

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iYR31198808-199001

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iYR31198808-199001

36182COVER, TRANSFER OIL PUMP

main36182-28010iYR31198808-199001

36183PLATE, TRANSFER OIL PUMP

main36183-28010iYR31198808-199001

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-28010iYR31198808-199001

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025×2iYR31198808-199001

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-28010iYR31198808-199001

9011908447

main90119-08447

9014960053

main90149-60053

12 parts on this diagram · 1 diagram in section
