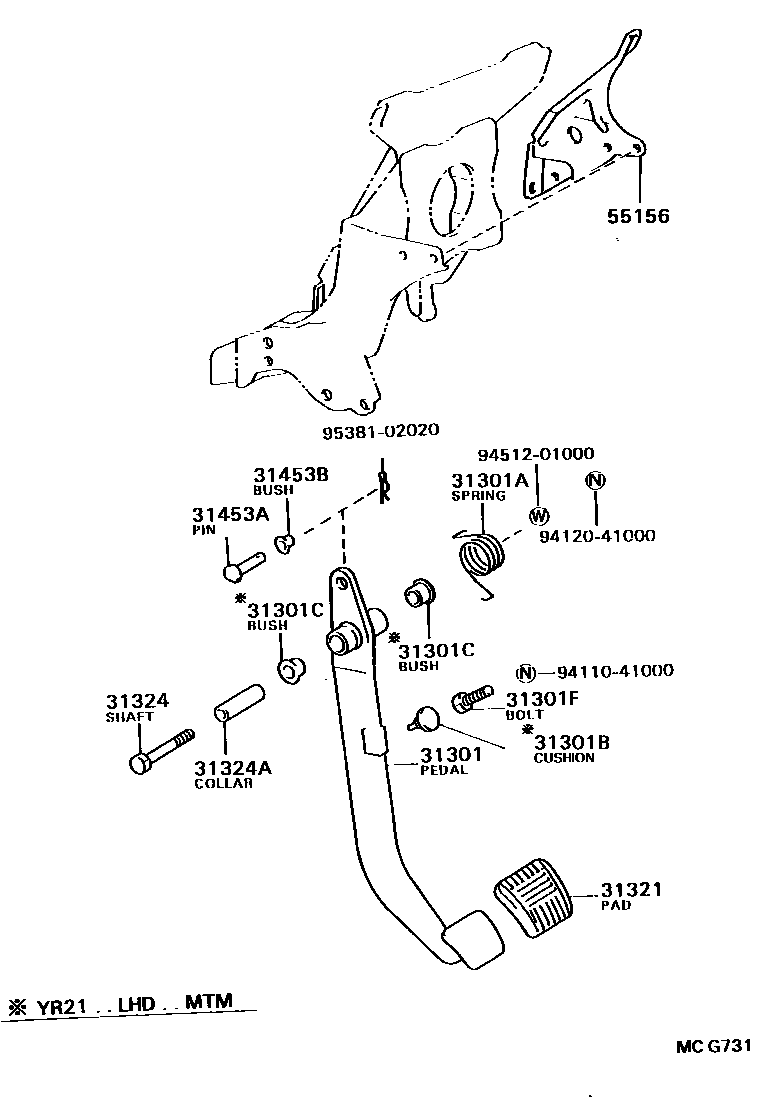

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28060iYR2#,31..5F..ARL198808-199001

main31301-28080iYR21..5F..GEN198808-199001

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32012iYR2#,31..5F..ARL198808-199001

main90508-35021iYR21..5F..GEN198808-199001

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iYR21..5F..GEN198808-199001

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iYR21..5F..GEN198808-199001

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iYR2#,31..5F198808-199001

31321PAD, CLUTCH PEDAL

main31321-14020iYR2#,31..5F198808-199001

31324SHAFT, CLUTCH PEDAL

main90101-10043iYR21..5F..GEN198808-199001

main91121-51060iYR2#,31..5F..ARL198808-199001

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iYR21..5F..GEN198808-199001

main90387-10003iYR2#,31..5F..ARL198808-199001

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iYR2#,31..5F198808-199001

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iYR2#,31..5F198808-199001

55156BRACKET, CLUTCH PEDAL

main55156-87002iYR2#,31..5F..ARL198808-199001

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

9538102020

main95381-02020

15 parts on this diagram · 2 diagrams in section
