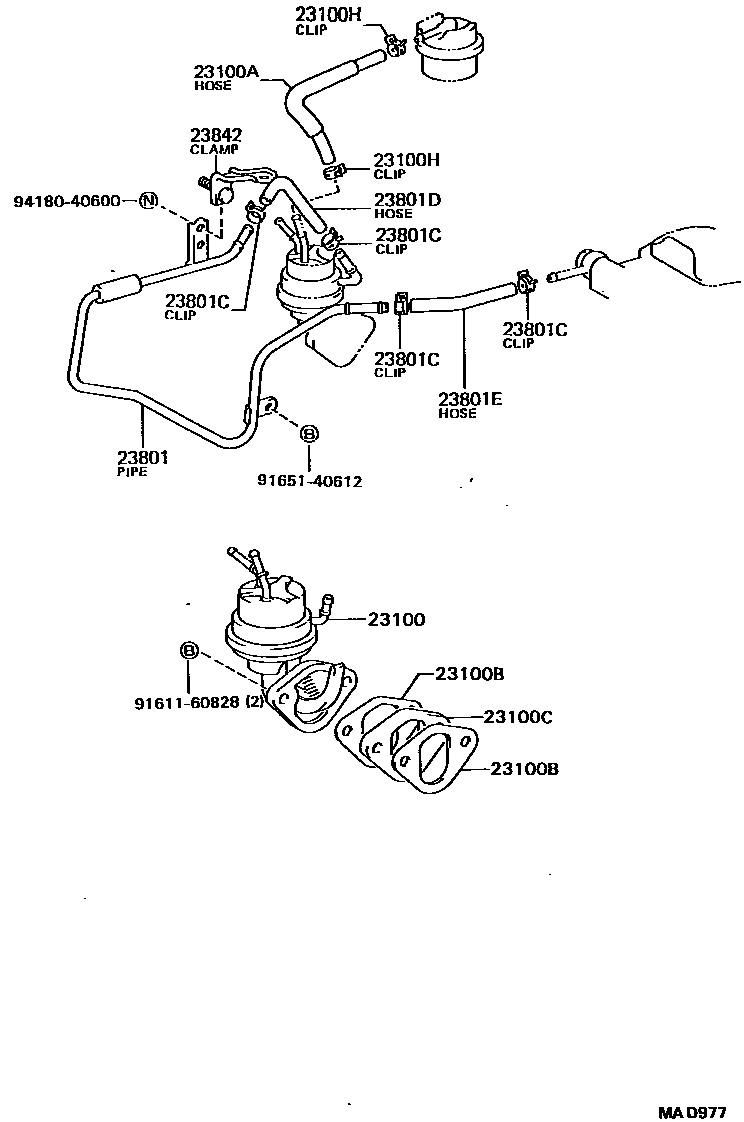

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-73031i3Y#..YR21198808-199001

23100AHOSE, FUEL

main90447-12081i3Y#..YR21198808-199001

23100BGASKET, FUEL PUMP

main90923-05016×2i3Y#..YR21198808-199002

23100CINSULATOR, FUEL PUMP

main90923-06008i3Y#..YR21198808-199001

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3Y#..YR21198808-199001

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i3Y#..YR21198808-199001

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×4i3Y#..YR21198808-199001

23801DHOSE, FUEL PIPE, NO.1

main95333-06010i3Y#..YR21198808-199001

L=100

23801EHOSE, FUEL PIPE, NO.2

main95333-06010i3Y#..YR21198808-199001

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-71012i3Y#..YR21198808-199001

9161160828

main91611-60828

9165140612

main91651-40612

9418040600

main94180-40600

13 parts on this diagram · 1 diagram in section
