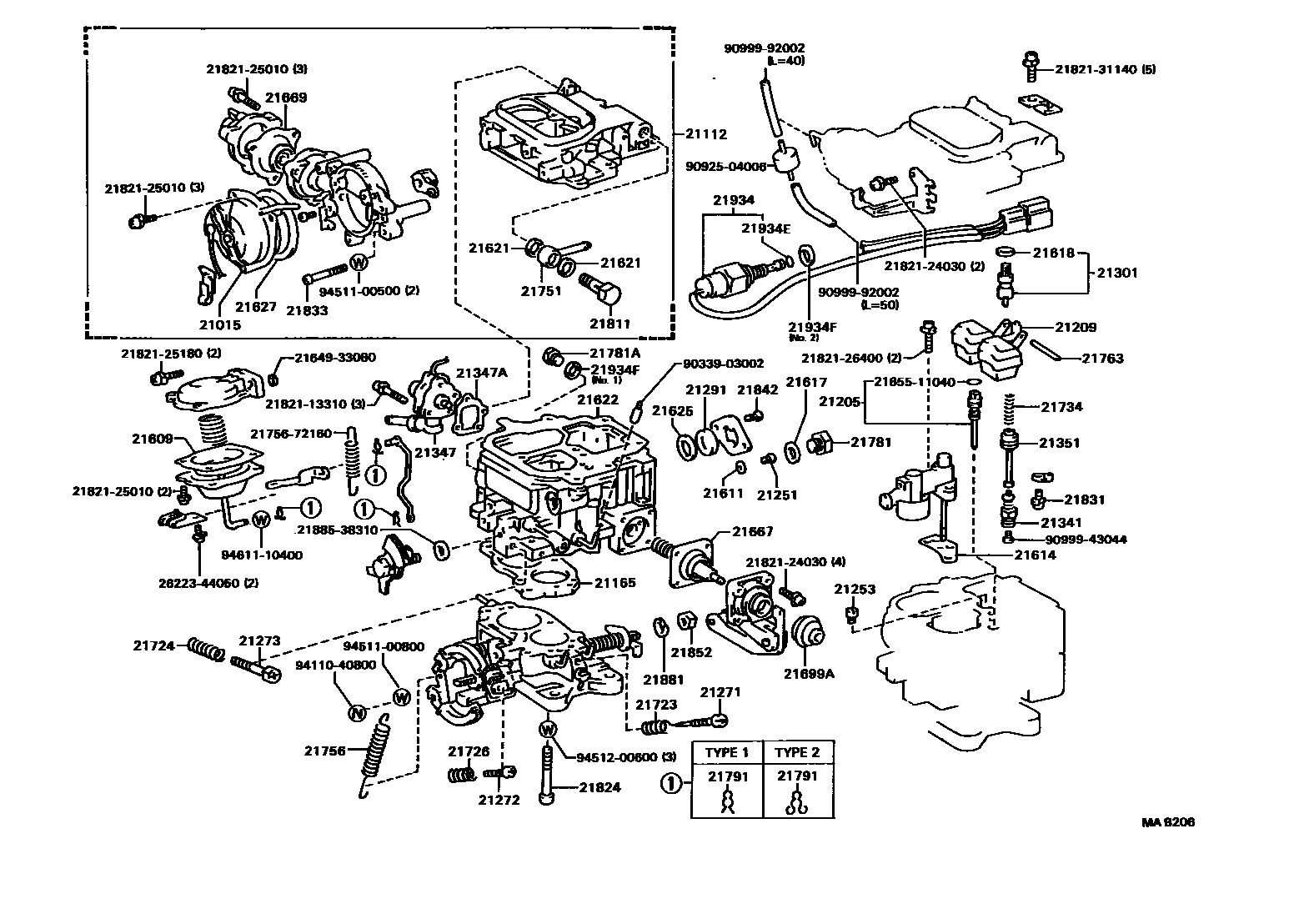

CARBURETOR
21015HOUSING SUB-ASSY, COIL
NEW ZEALAND SPEC
21112HORN, AIR
sub21112-73371
21165INSULATOR
sub21165-72200
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
21253JET, 2ND MAIN
NEW ZEALAND SPEC
21271SCREW, IDLE ADJUSTING
NEW ZEALAND SPEC
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21341VALVE, POWER
21347VALVE, SOLENOID
NO.1
21347AGASKET(FOR VALVE, SOLENOID)
sub21641-35510
21351PISTON, POWER
21609DIAPHRAGM SUB-ASSY
21611GASKET, MAIN JET
21614GASKET, VENTURI
sub21614-72200
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
sub21622-73330
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21667DIAPHRAGM
21669DIAPHRAGM
sub21669-73370
21699ABOOT(FOR ACCELERATION PUMP)
21723SPRING, IDLE ADJUSTING
NEW ZEALAND SPEC
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
NEW ZEALAND SPEC
21734SPRING, POWER PISTON
NEW ZEALAND SPEC
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781APLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
NEW ZEALAND SPEC
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
TYPE 2
21811BOLT, UNION NIPPLE
21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21831SCREW, POWER PISTON STOP
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
sub21062-72310
21934ERING, O(FOR SOLENOID VALVE)
2164933080GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
main21649-33080
2165511040RING, O(FOR LIFTER ROD)
main21655-11040
2175672160SPRING, BACK(FOR THROTTLE SHAFT)
main21756-72160
2182113310SCREW, 2ND THROTTLE VALVE SET
main21821-13310
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2188538310
main21885-38310
2622344050SCREW, SET(FOR POWER VALVE CAM)
main26223-44050
9033903002
main90339-03002
9092504006
main90925-04006
9099943044
main90999-43044
9099992002
main90999-92002
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110400
main94611-10400
68 parts on this diagram · 2 diagrams in section
