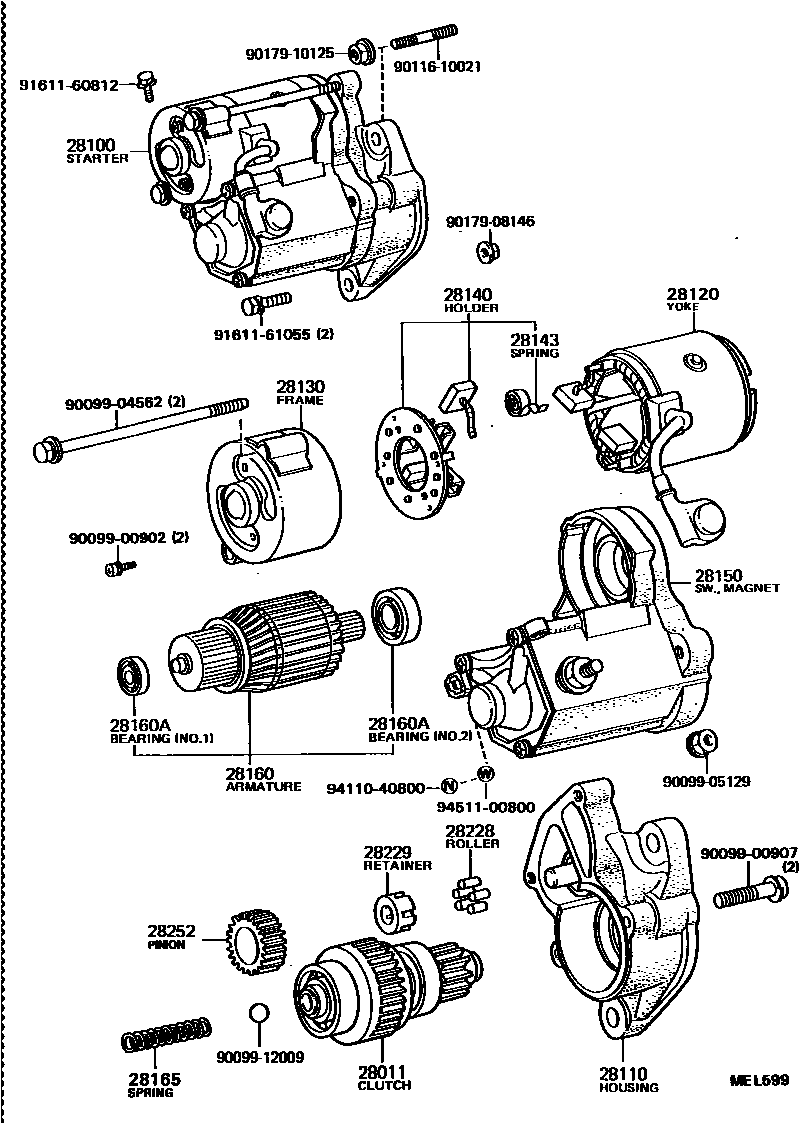

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28252GEAR, STARTER IDLE
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9011610021
main90116-10021
9017908146
main90179-08146
9017910125
main90179-10125
9161160812
main91611-60812
9161161055
main91611-61055
9411040800
main94110-40800
9451100800
main94511-00800
26 parts on this diagram · 2 diagrams in section
