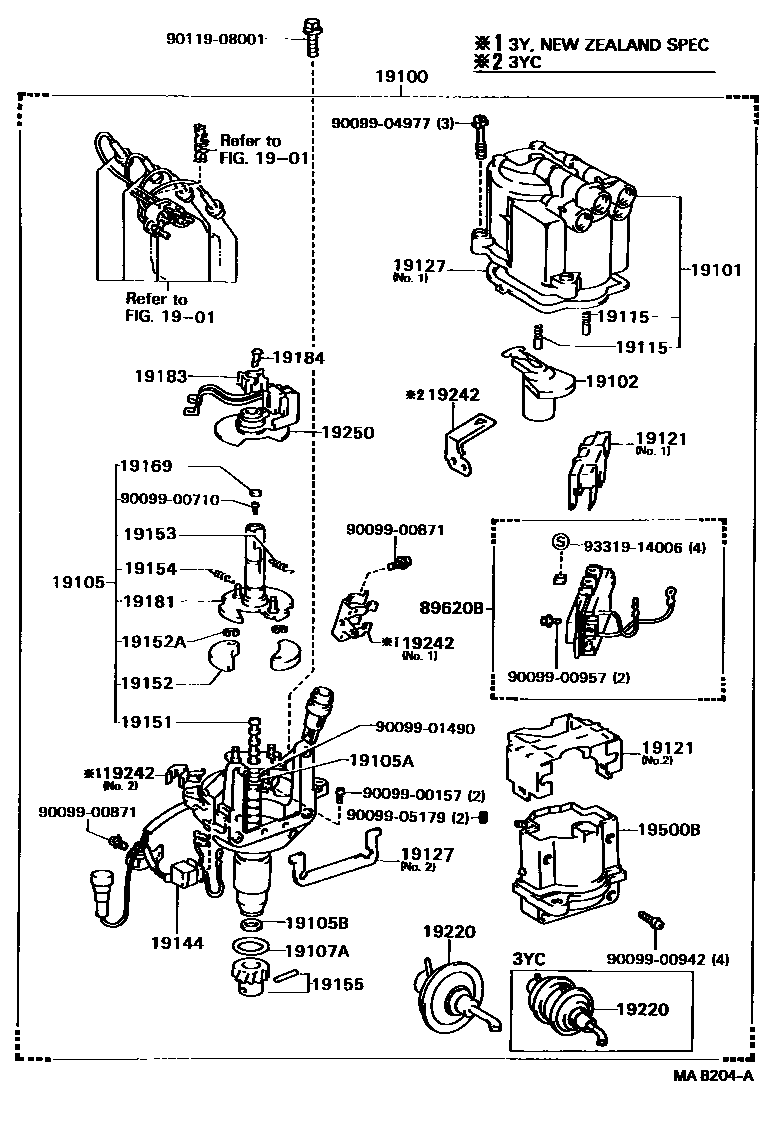

DISTRIBUTOR
1901
19101CAP SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
NEW ZEALAND SPEC
19105AWASHER(FOR GOVERNOR SHAFT THRUST)
T=0.3
T=0.4
T=0.6
T=0.5
19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
19107ARING, O, DISTRIBUTOR HOUSING
sub90099-14090
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
NO.1
NO.2
19127PACKING, DUST PROOF
NO.1
NO.2
19144LEAD, DISTRIBUTOR BREAKER
NEW ZEALAND SPEC
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
NEW ZEALAND SPEC
19154SPRING, GOVERNOR, B
NEW ZEALAND SPEC
19155GEAR, SPIRAL, DISTRIBUTOR
sub19195-72090
19169STOPPER, CAM GREASE
19183ROTOR, SIGNAL
19184SPRING, ROTOR SET
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
NEW ZEALAND SPEC
19242CLAMP, CORD
NEW ZEALAND SPEC,NO.1
NO.1
NO.2
NO.2
NEW ZEALAND SPEC,NO.2
NO.1
19250GENERATOR ASSY, SIGNAL
19500BCOIL ASSY, IGNITION
89620BIGNITER ASSY
9009900157
main90099-00157
9009900710
main90099-00710
9009900871
main90099-00871
9009900942
main90099-00942
9009900957
main90099-00957
9009901490
main90099-01490
9009904977
main90099-04977
9009905179
main90099-05179
9011908001
main90119-08001
9331914006
main93319-14006
37 parts on this diagram · 2 diagrams in section
