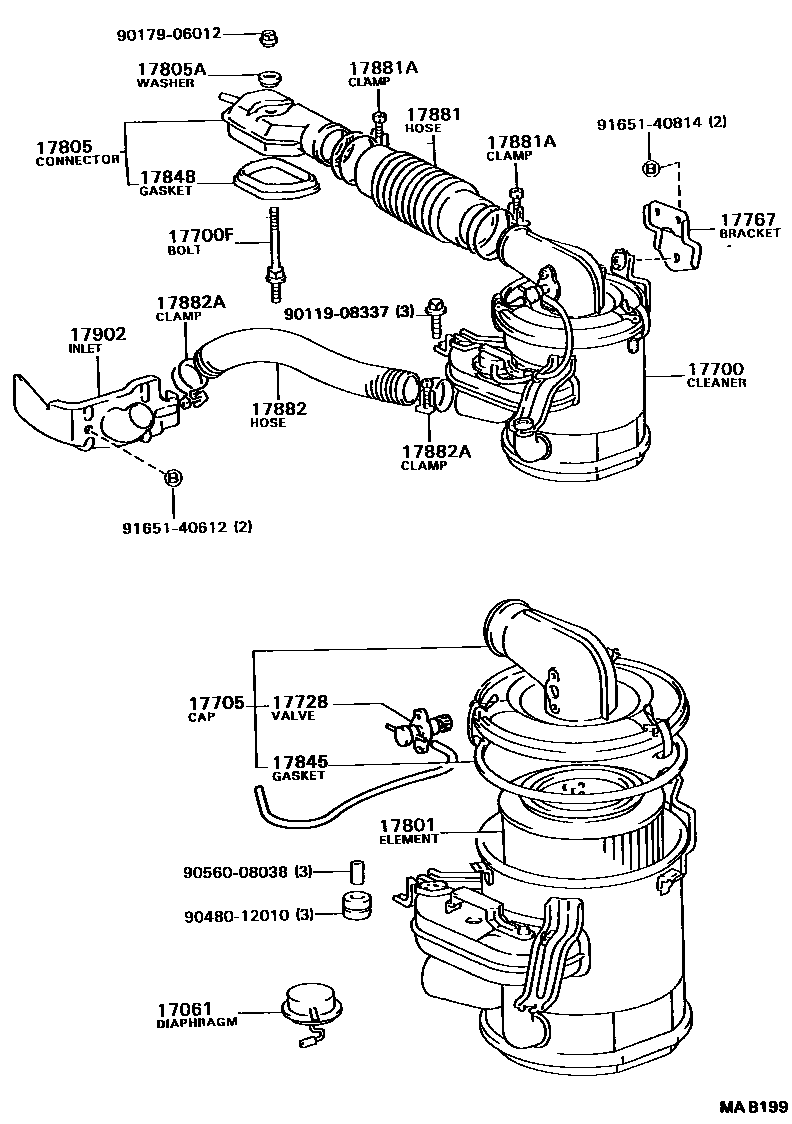

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17061DIAPHRAGM SUB-ASSY

main17061-15020i3Y..YR21198808-199001

main17061-72020i3YC..YR21198808-199001

17700CLEANER ASSY, AIR

main17700-71011i3Y..YR21198808-199001

main17700-72091i3YC..YR21198808-199001

main17700-73042i4YEC..YR22,31198808-199001

sub17700-73043

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06018i3Y#..YR21198808-199001

17705CAP SUB-ASSY, AIR CLEANER

main17705-71010i3Y..YR21198808-199001

main17705-72030i3YC..YR21198808-199001

main17705-73011i4YEC..YR22,31198808-199001

17728VALVE, THERMOSTATIC

main17728-71010i3Y#..YR21198808-199001

17767BRACKET, AIR CLEANER

main17771-28010i3Y..YR21198808-199001

main17771-28020i3YC..YR21198808-199001

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16010i3YC..YR21198808-199001

main17801-54050i3Y..YR21198808-199001

main17801-70010i4YEC..YR22,31198808-199001

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-71011i3Y..YR21198808-199001

main17805-72010i3YC..YR21198808-199001

17805AGASKET & WASHER, SEAL

main90210-09026i3Y#..YR21198808-199001

17845GASKET, AIR CLEANER CAP

main17845-71010i3Y..YR21198808-199001

sub17845-61011

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-35010i3Y#..YR21198808-199001

17881HOSE, AIR CLEANER, NO.1

main17881-71020i3Y..YR21198808-199001

main17881-71060i3YC..YR21198808-199001

main17881-73020i4YEC..YR22,31198808-199001

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i3YC..YR21198808-199001

sub90460-80006

main96111-10690i3Y..YR21198808-199001

main96111-10710i4YEC..YR22,31198808-199001

THROTTLE BODY SIDE

main96111-10800i4YEC..YR22,31198808-199001

AIR FLOW METER SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-71021i3Y#..YR21198808-199001

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036i3Y#..YR21198808-199001

17902INLET SUB-ASSY, HOT AIR INTAKE, NO.1

main17895-71010i3Y#..YR21198808-199001

9011908337

main90119-08337

9017906012

main90179-06012

9048012010

main90480-12010

9056008038

main90560-08038

9165140612

main91651-40612

9165140814

main91651-40814

22 parts on this diagram · 4 diagrams in section
