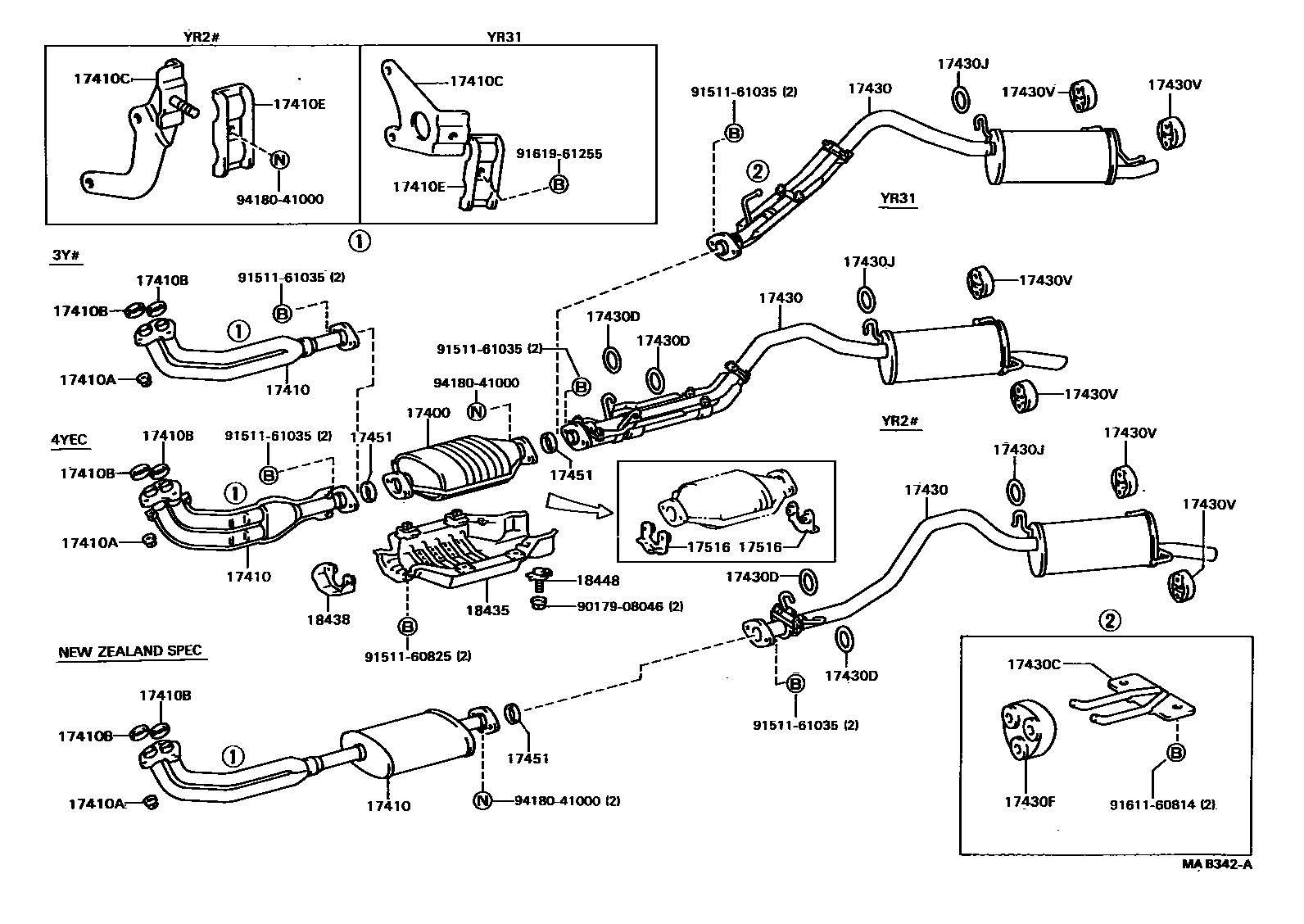

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
NEW ZEALAND SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17430PIPE ASSY, EXHAUST, TAIL
NEW ZEALAND SPEC
17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
NEW ZEALAND SPEC
RR
FR
NEW ZEALAND SPEC
FR
RR
RR
17516RETAINER, EXHAUST PIPE, NO.2
18435PROTECTOR, CATALYTIC CONVERTER
18438BRACKET, CONNECTOR PROTECTOR, FRONT
18448BRACKET, CONVERTER PROTECTOR, CENTER
9017908046
main90179-08046
9151160825
main91511-60825
9151161035
main91511-61035
9161160814
main91611-60814
9161961255
main91619-61255
9418041000
main94180-41000
23 parts on this diagram · 2 diagrams in section
