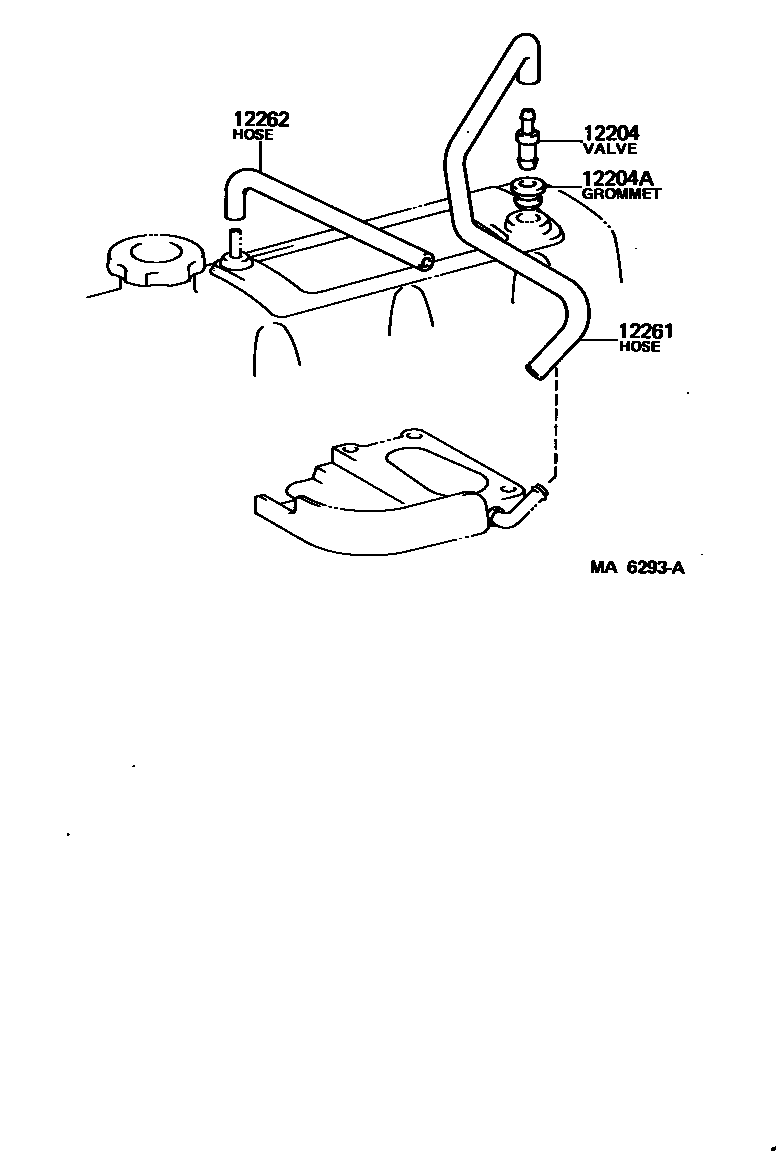

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i3Y#,4YEC..YR2#,31198808-199001

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i3Y#,4YEC..YR2#,31198808-199001

12261HOSE, VENTILATION

main12261-72020i3Y#..YR21198808-199001

main12261-73021i4YEC..YR22,31198808-199001

12262HOSE, VENTILATION, NO.2

main12262-71010i3Y#..YR21198808-199001

main12262-73010i4YEC..YR22,31198808-199001

4 parts on this diagram · 2 diagrams in section
