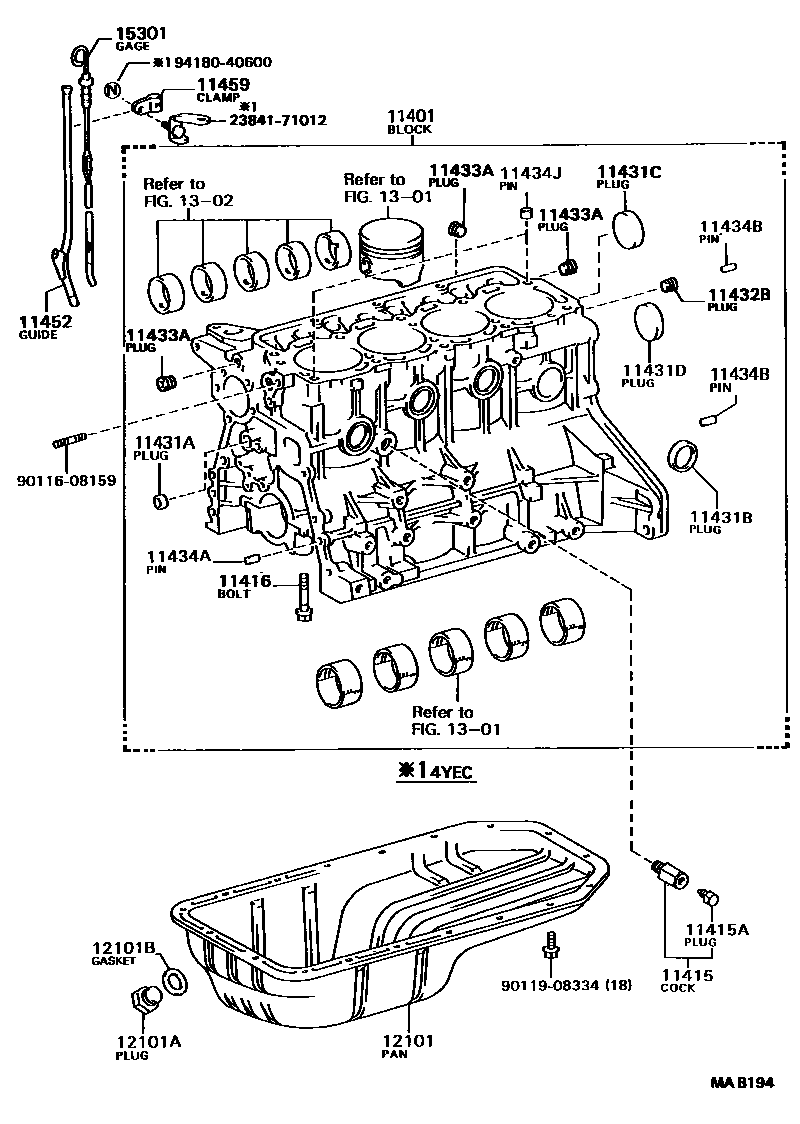

CYLINDER BLOCK
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11432BPLUG, W/HEAD TAPER SCREW, NO.2
11433APLUG, STRAIGHT, NO.1
sub90344-51005
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=18,OD=8
L=22,OD=10
11434JPIN, RING (FOR CYLINDER HEAD SET)
11452GUIDE, OIL LEVEL GAGE
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-12028
1301
1302
15301GAGE SUB-ASSY, OIL LEVEL
2384171012CLAMP, FUEL PIPE(HOSE), NO.1
main23841-71012
9011608159
main90116-08159
9011908334
main90119-08334
9418040600
main94180-40600
25 parts on this diagram · 1 diagram in section
