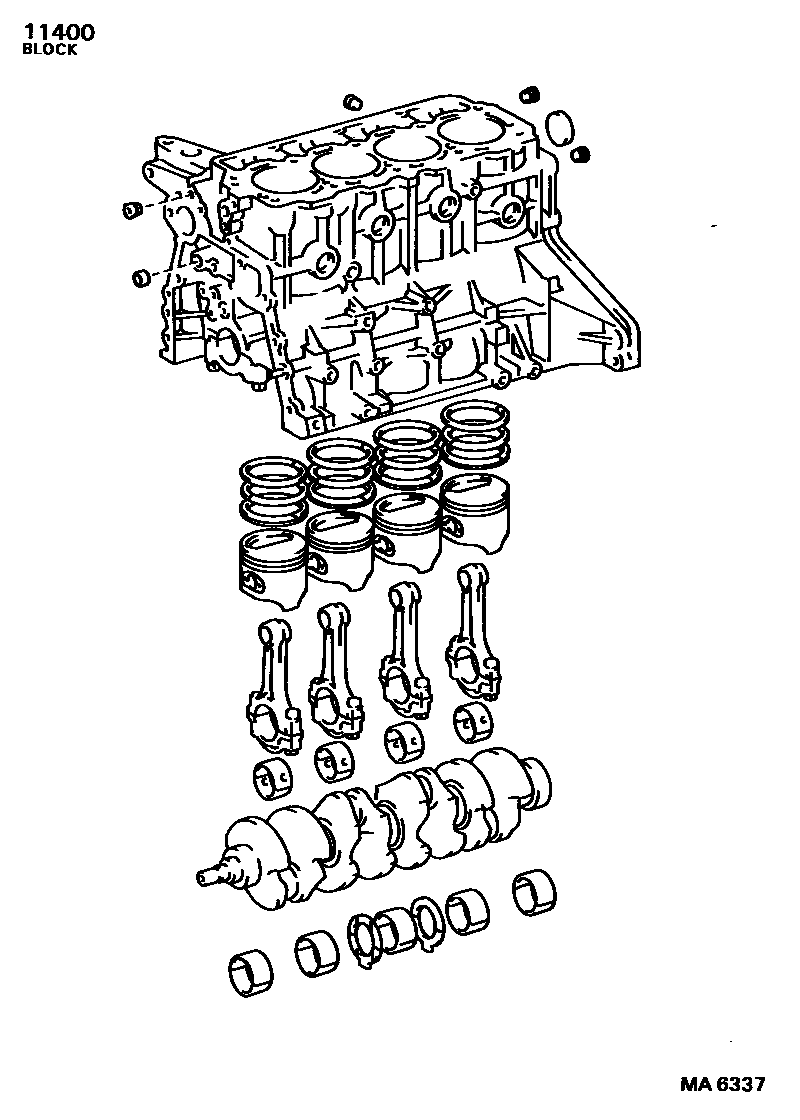

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-73011i198808-198908

main11400-73012i198908-199001

main11400-73021i198808-198908

NEW ZEALAND SPEC

main11400-73022i198908-199001

NEW ZEALAND SPEC

main11400-73050i198808-199001

1 parts on this diagram · 1 diagram in section
