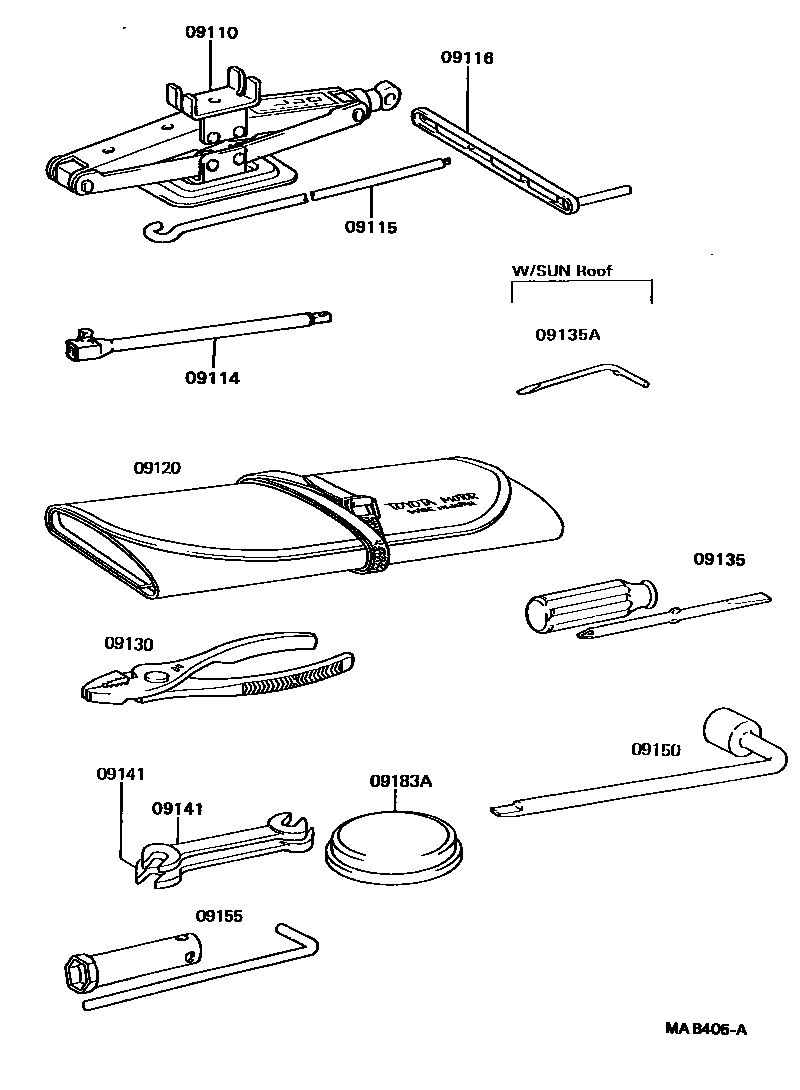

STANDARD TOOL

09110JACK ASSY

main09110-28050iYR2#,31..ARL198808-199001

main09110-28070iYR21..GEN198808-199001

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60050iYR2#,31198904-199001

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-27040iYR2#,31198808-198904

main09115-28030iYR2#,31198904-199001

09116LEVER, JACK HANDLE

main09116-35041iYR2#,31198808-199001

09120BAG, TOOL

main09120-26021iYR2#198808-199001

sub09120-35170

main09120-28010iYR31198808-199001

09130PLIERS

main99913-11500iYR2#,31198808-199001

09135DRIVER, SCREW

main99915-10700iYR2#,31198808-199001

09135ABIT, SCREW DRIVER

main09135-00012iYR2#..MRF..GL198808-199001

09141SPANNER

main99914-10810iYR2#,31198808-199001

8 X 10

main99914-11214iYR2#,31198808-199001

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35020iYR2#,31198808-199001

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-41010iYR2#,31198808-199001

09183AREPLACER, WHEEL CAP

main09183-28010iYR31198808-199001

sub09183-28020

12 parts on this diagram · 1 diagram in section
