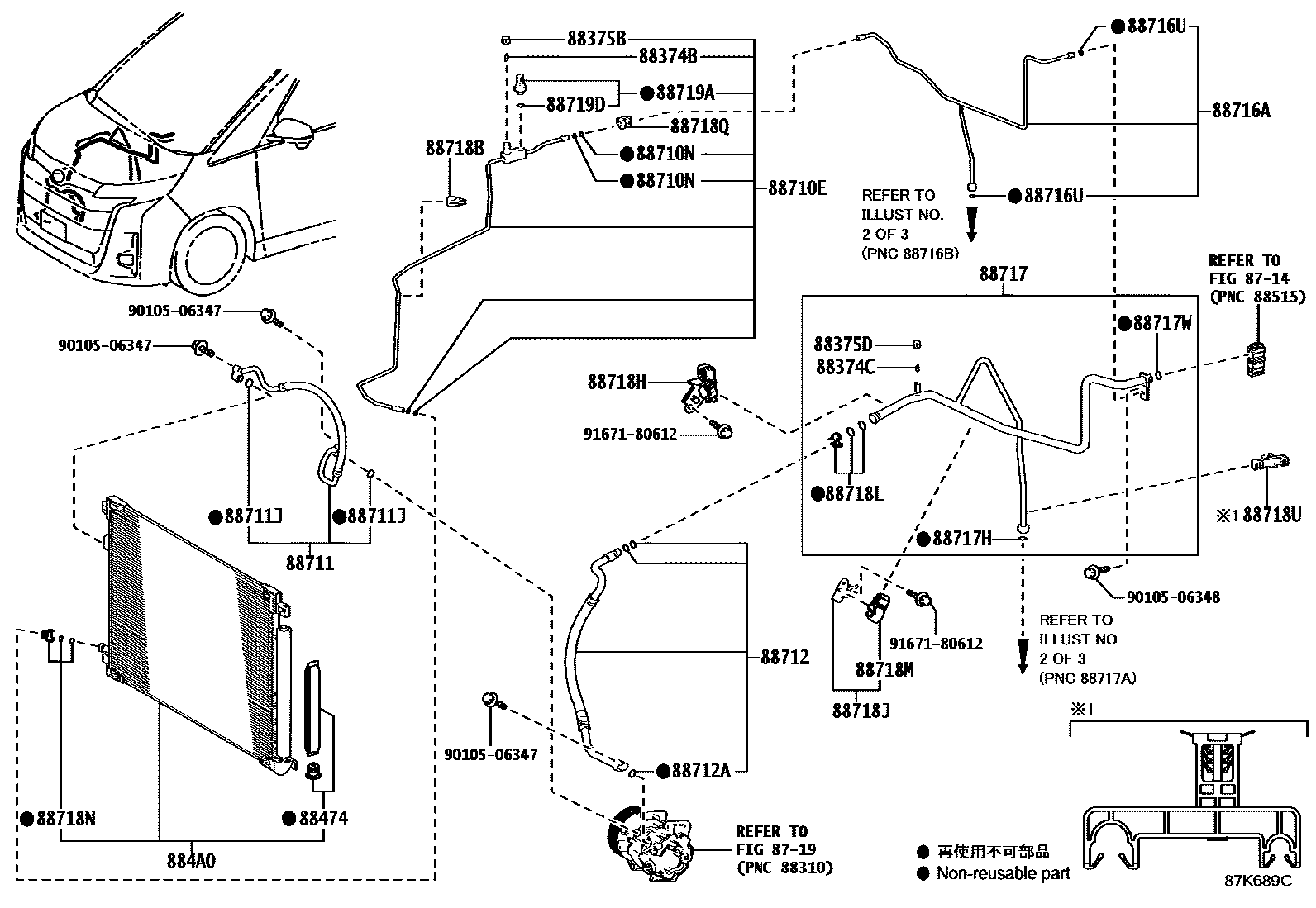

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3
88717PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717HRING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
ID=10.8,OD=15.6
88717WRING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2
ID=13.4,OD=18.2
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718HCLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)
88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
88718QCLAMP, PIPING
88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
9010506347
main90105-06347
9010506348
main90105-06348
9167180612
main91671-80612
32 parts on this diagram · 5 diagrams in section
