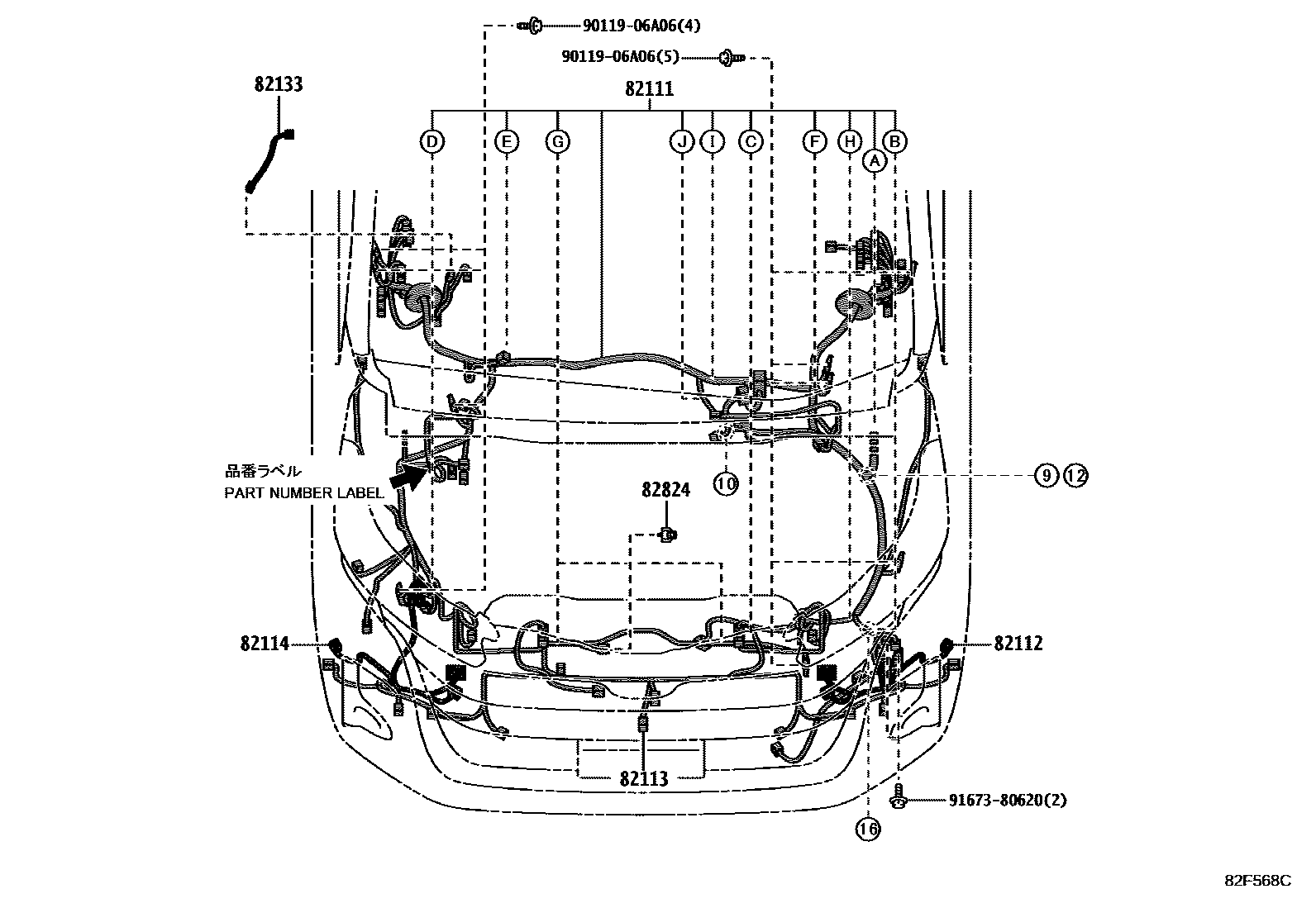

82111WIRE, ENGINE ROOM MAIN

main82111-V1040iMZRA90..NOAH202201-202211

P/N LABEL=82111V1040

main82111-V1041iMZRA90..R202310-202501

P/N LABEL=82111V1041

main82111-V1042iMZRA90..R202501

P/N LABEL=82111V1042

main82111-V1530iMZRA90..NOAH202211-202404

P/N LABEL=82111V1530

main82111-V1590iMZRA90..NOAH202404-202501

P/N LABEL=82111V1590

main82111-V1591iMZRA90..G202501

P/N LABEL=82111V1591

82112WIRE, ENGINE ROOM, NO.2

main82112-V1010iMZRA90..S202201-202501

main82112-V1020iMZRA90..R202201

82113WIRE, ENGINE ROOM, NO.3

main82113-V1010iMZRA90..G202201

main82113-V1100iMZRA90..S202201-202501

main82113-V1140iMZRA90..R202201

82114WIRE, ENGINE ROOM, NO.4

main82114-V1010iMZRA90..S202201-202501

main82114-V1020iMZRA90..R202201

82133WIRE, COWL, NO.3

main82133-V1010iMZRA90..R202201

82824CONNECTOR, WIRING HARNESS

main82824-60C30iMZRA90..R202201-202502

9011906A06

main90119-06A06

9167380620

main91673-80620

8 parts on this diagram · 13 diagrams in section
