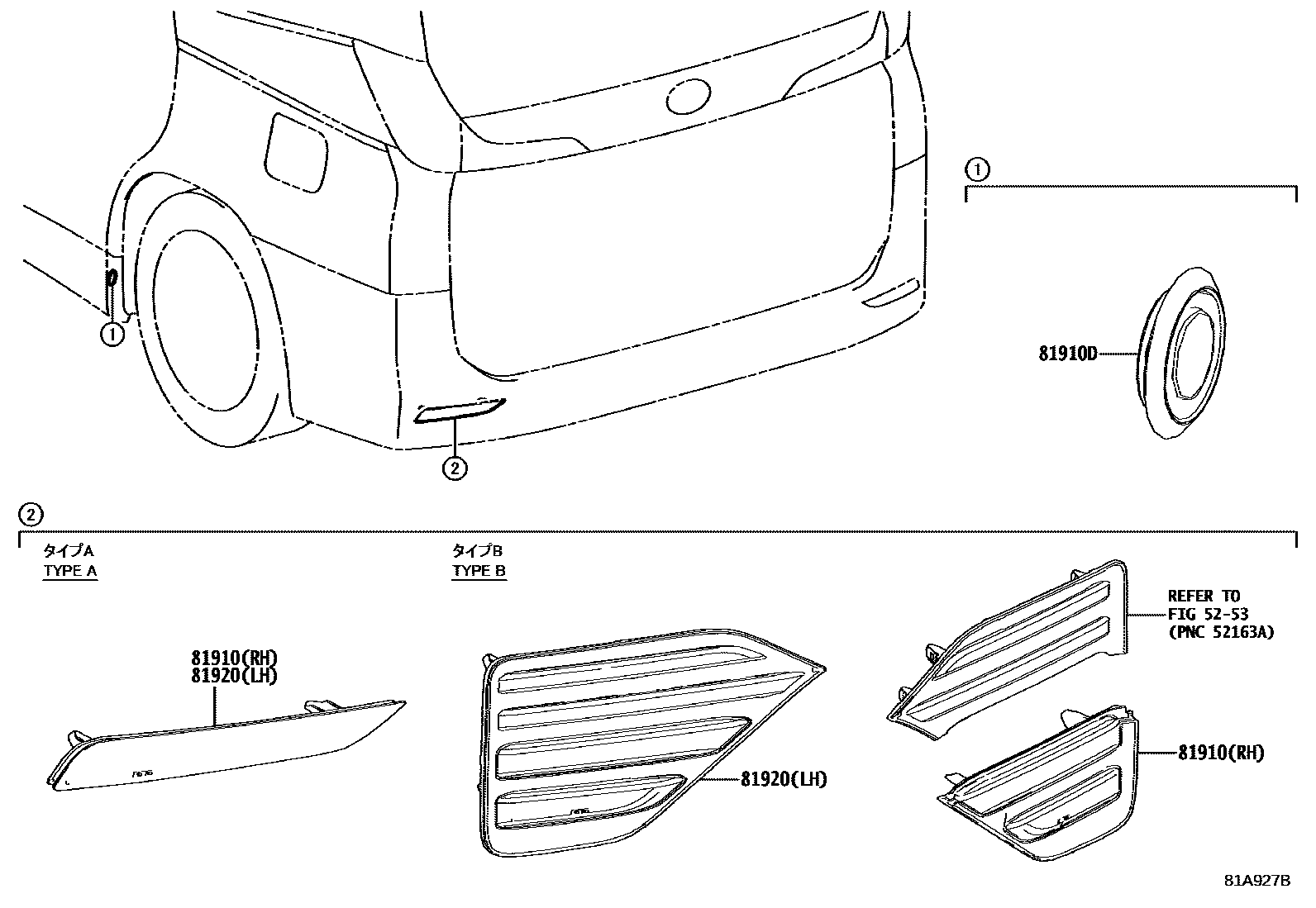

REFLEX REFLECTOR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

81910REFLECTOR ASSY, REFLEX, RH

main81910-28030iMZRA90..G202201

TYPE A:REFER ILLUST.

main81910-28040iMZRA90..S202201-202501

TYPE B:REFER ILLUST.

81910DREFLECTOR ASSY, REFLEX, REAR

main81580-V1040×2iMZRA90..G,R202201

81920REFLECTOR ASSY, REFLEX, LH

main81920-28030iMZRA90..G202201

TYPE A:REFER ILLUST.

main81920-28040iMZRA90..S202201-202501

TYPE B:REFER ILLUST.

4 parts on this diagram · 1 diagram in section
