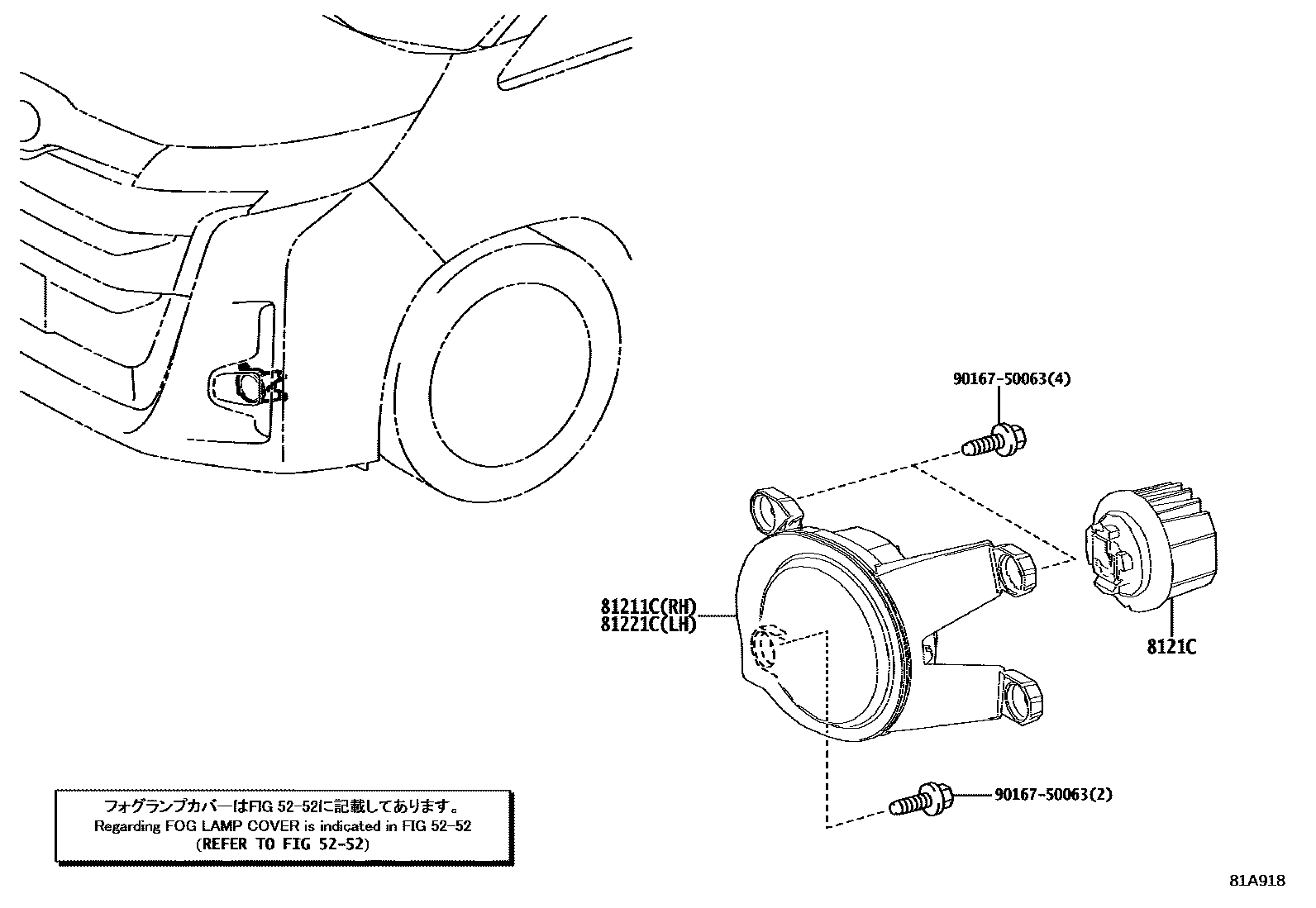

FOG LAMP

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81211CLAMP UNIT, FOG LAMP, RH

main81211-52140iMZRA90..G202201

8121CLED, FOG LAMP

main8121C-52140×2iMZRA90..G202201-202204

main81965-52050×2iMZRA90..G202204

81221CLAMP UNIT, FOG LAMP, LH

main81221-52120iMZRA90..G202201

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
