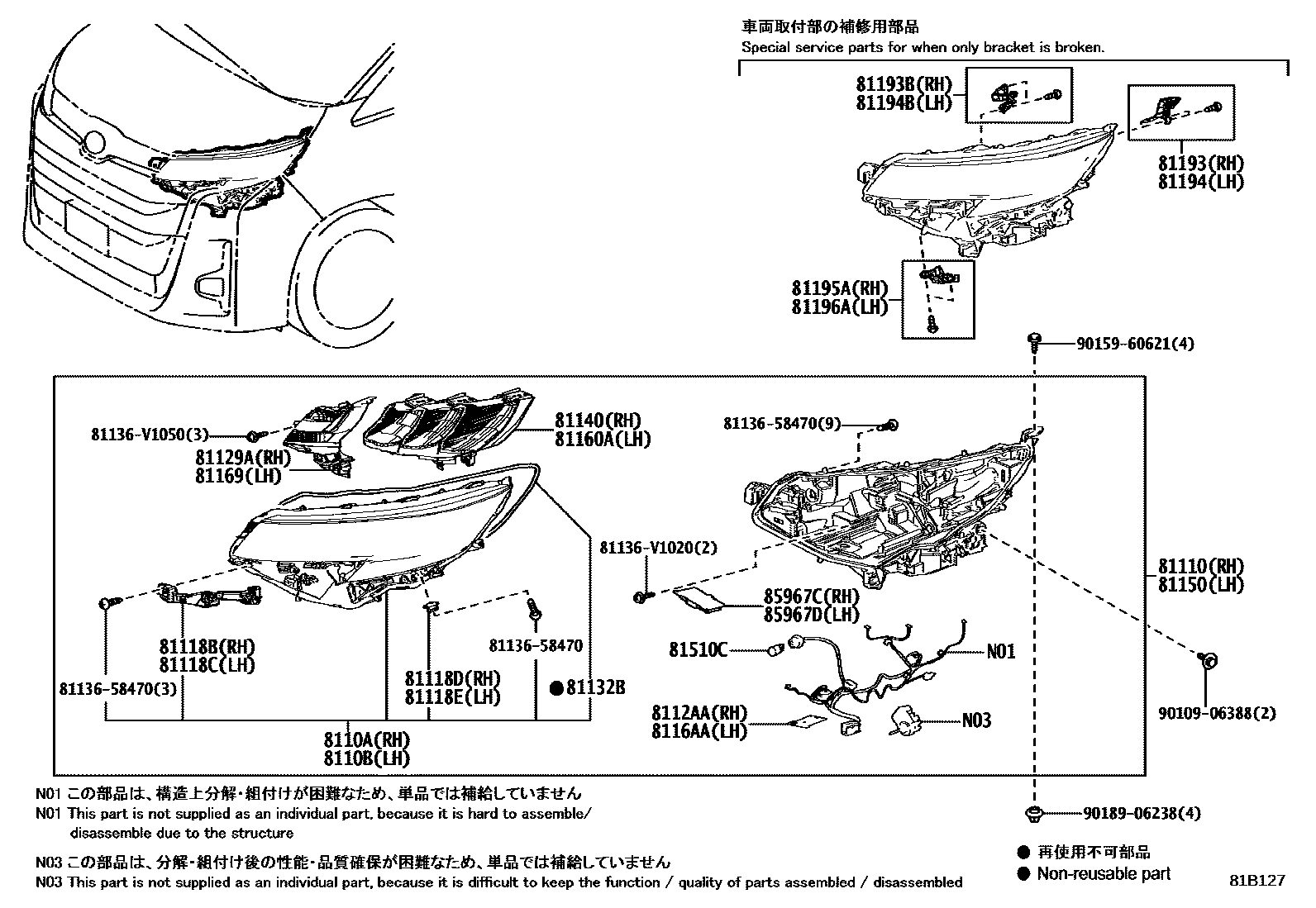

HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
81110HEADLAMP ASSY, RH
81118BBRACKET, HEADLAMP, RH NO.1
81118CBRACKET, HEADLAMP, LH NO.1
81118EBRACKET, HEADLAMP, LH NO.2
81129AREFLECTOR, HEADLAMP, RH
8112AAUNIT, HEADLAMP CLEARANCE LED, RH
81132BGASKET, HEADLAMP LENS
81140UNIT ASSY, HEADLAMP LED, RH
81150HEADLAMP ASSY, LH
81169REFLECTOR, HEADLAMP, LH
8116AAUNIT, HEADLAMP CLEARANCE LED, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER,LIFE ELECS
12V 21W,AMBER,LIFE
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
8113658470PROTECTOR, HEADLAMP, NO.1 RH
main81136-58470
81136V1020PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1020
81136V1050PROTECTOR, HEADLAMP, NO.1 RH
main81136-V1050
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
30 parts on this diagram · 2 diagrams in section
