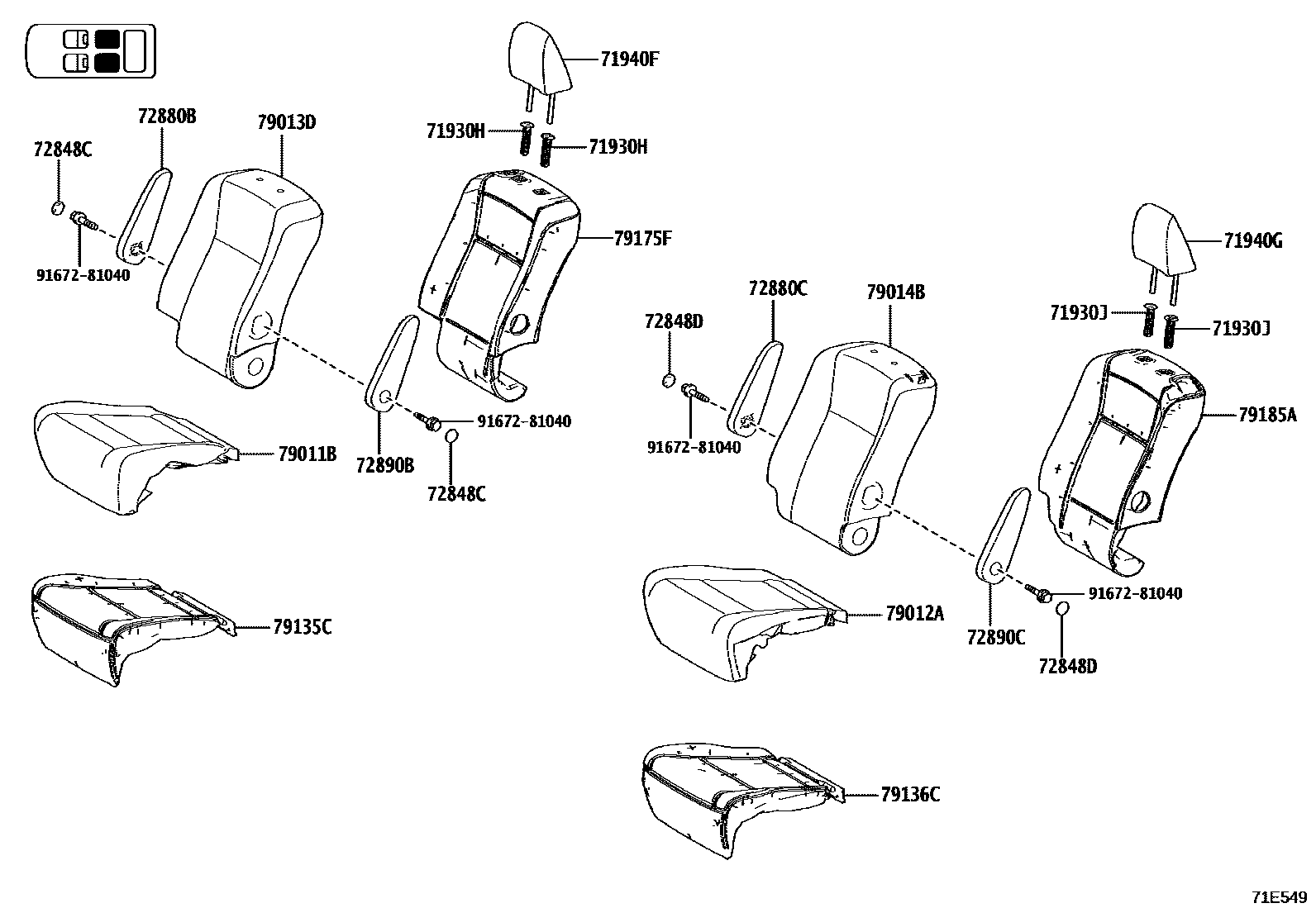

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT 0002 1REAR NO.1 SEAT(RH) 0003 1REAR NO.1 SEAT(RH) 0004 1REAR NO.1 SEAT(LH) 0005 1REAR NO.1 SEAT(LH) 0006 1REAR NO.1 SEAT(RH) 0007 1REAR NO.1 SEAT(RH) 0008 1REAR NO.1 SEAT(RH) 0009 1REAR NO.1 SEAT(LH) 0010 1REAR NO.1 SEAT(LH) 0011 1REAR NO.2 SEAT 0012 1REAR NO.2 SEAT(RH) 0013 1REAR NO.2 SEAT(LH) 0014 1REAR NO.2 SEAT 0015 1SEAT EDGE WIRE

71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH

main71930-28050-C0iMZRA90..G; MZRA90..R202201

W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#

main71931-28060-C0iMZRA90..G; MZRA90..R202201

W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#

71930JSUPPORT ASSY, NO.1 SEAT HEADREST, LH

main71930-28050-C0iMZRA90..G; MZRA90..R202201

W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#

main71931-28060-C0iMZRA90..G; MZRA90..R202201

W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#

71940FHEADREST ASSY, NO.1 SEAT, RH

main71940-V1040-A1iMZRA90..G202201-202501

FROMAGE,TRIM0#

main71940-V1040-C0iMZRA90..G202201

BLACK,TRIM2#

main71940-V1060-C0iMZRA90..R202201

BLACK,TRIM2#

71940GHEADREST ASSY, NO.1 SEAT, LH

main71940-V1040-A1iMZRA90..G202201-202501

FROMAGE,TRIM0#

main71940-V1040-C0iMZRA90..G202201

BLACK,TRIM2#

main71940-V1060-C0iMZRA90..S202201-202501

BLACK,TRIM2#

72848CCAP, NO.1 SEAT ARMREST, NO.1 RH

main72848-28030-C3×2iMZRA90..S202201-202501

BLACK,TRIM2#

72848DCAP, NO.1 SEAT ARMREST, NO.1 LH

main72848-28030-C3×2iMZRA90..S202201-202501

BLACK,TRIM2#

72880BARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)

main72880-V1020-C0iMZRA90..S202201-202501

BLACK,TRIM2#

72880CARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

main72880-V1020-C0iMZRA90..S202201-202501

BLACK,TRIM2#

72890BARMREST ASSY, NO.1 SEAT, C LH(FOR RH SEAT)

main72890-V1020-C0iMZRA90..R202201

BLACK,TRIM2#

72890CARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

main72890-V1020-C0iMZRA90..S202201-202501

BLACK,TRIM2#

79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-V1020-A3iMZRA90..G202201-202501

FROMAGE,TRIM0#

main79011-V1020-C3iMZRA90..G202201-202502

BLACK,TRIM2#

main79011-V1040-C5iMZRA90..S202201-202501

BLACK,TRIM2#

79012ACOVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main79012-V1020-A3iMZRA90..G202201-202501

FROMAGE,TRIM0#

main79012-V1020-C3iMZRA90..G202201-202502

BLACK,TRIM2#

main79012-V1040-C5iMZRA90..S202201-202501

BLACK,TRIM2#

79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-V1020-A1iMZRA90..G202201-202501

FROMAGE,TRIM0#

main79013-V1020-C1iMZRA90..G202201-202502

BLACK,TRIM2#

main79013-V1040-C1iMZRA90..S202201-202501

BLACK,TRIM2#

79014BCOVER SUB-ASSY, NO.1 SEATBACK, LH

main79014-V1020-A1iMZRA90..G202201-202501

FROMAGE,TRIM0#

main79014-V1020-C1iMZRA90..G202201-202502

BLACK,TRIM2#

main79014-V1040-C1iMZRA90..S202201-202501

BLACK,TRIM2#

79135CPAD, NO.1 SEAT CUSHION, RH

main79135-V1010iMZRA90..G202201

main79135-V1020iMZRA90..S202201-202501

79136CPAD, NO.1 SEAT CUSHION, LH

main79136-V1010iMZRA90..G202201

main79136-V1020iMZRA90..S202201-202501

79175FPAD, NO.1 SEATBACK, RH

main79175-V1010iMZRA90..G202201

main79175-V1020iMZRA90..S202201-202501

79185APAD, NO.1 SEATBACK, LH

main79185-V1010iMZRA90..G202201

main79185-V1020iMZRA90..S202201-202501

9167281040

main91672-81040

19 parts on this diagram · 15 diagrams in section
