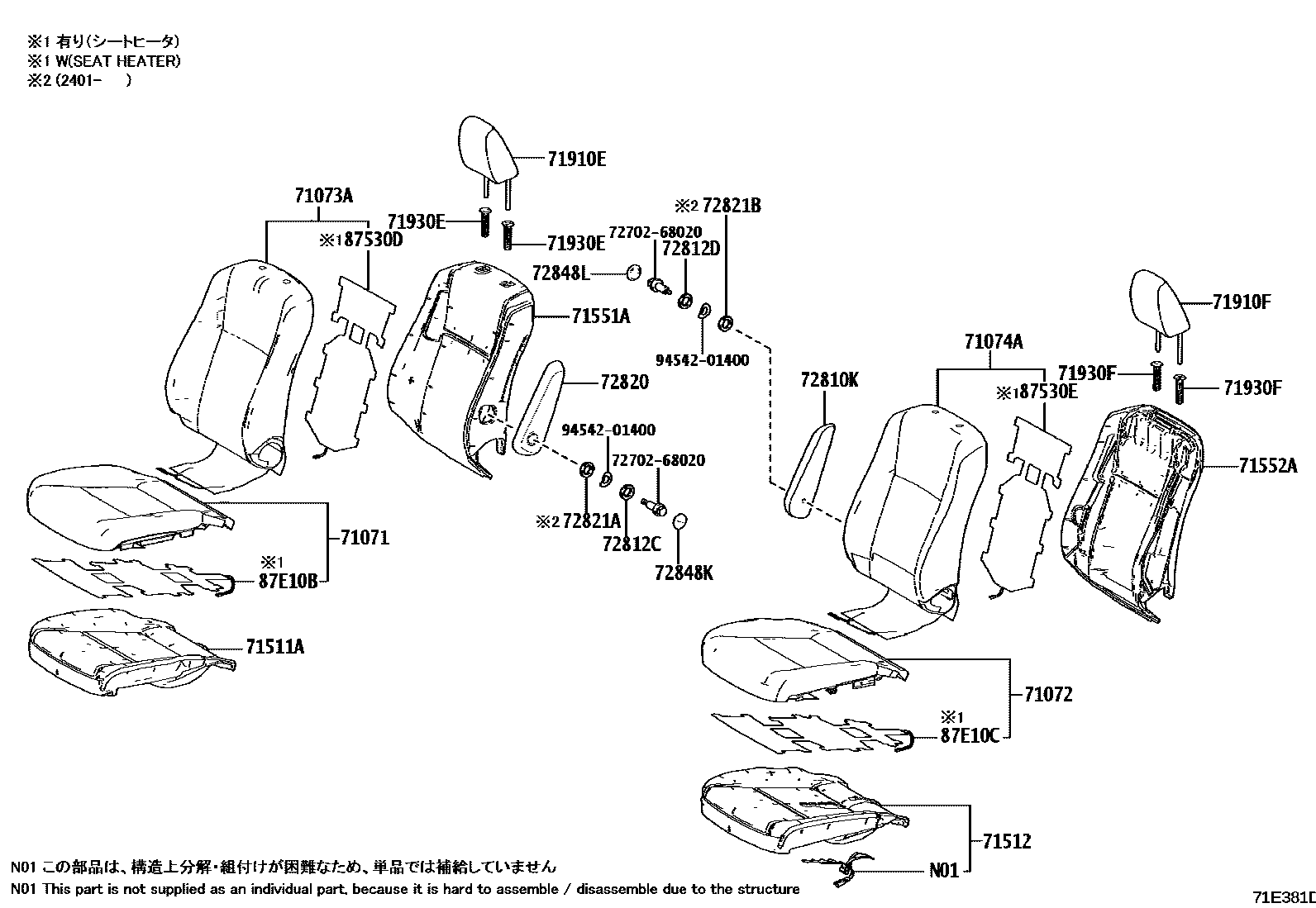

FRONT SEAT & SEAT TRACK
71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
71073ACOVER SUB-ASSY, FRONT SEATBACK, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
71074ACOVER SUB-ASSY, FRONT SEATBACK, LH
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
71511APAD, FRONT SEAT CUSHION, RH
71512PAD, FRONT SEAT CUSHION, LH
71551APAD, FRONT SEATBACK, RH
71910EHEADREST ASSY, FRONT SEAT, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
71910FHEADREST ASSY, FRONT SEAT, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH
W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#
72810KARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)
BLACK,TRIM2#
72812CPLATE, FRONT SEAT ARMREST, NO.1 RH
72812DPLATE, FRONT SEAT ARMREST, NO.1 LH
72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)
BLACK,TRIM0#,2#; BLACK,TRIM2#
72821APLATE, SEAT ARMREST, RH
72821BPLATE, SEAT ARMREST, LH
72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)
BLACK,TRIM0#,2#; BLACK,TRIM2#
72848LCAP, SEAT ARMREST, NO.1(FOR LH SEAT)
BLACK,TRIM2#
87530DHEATER ASSY, FRONT SEATBACK, RH
87530EHEATER ASSY, FRONT SEATBACK, LH
87E10BHEATER ASSY, FRONT SEAT CUSHION, RH
87E10CHEATER ASSY, FRONT SEAT CUSHION, LH
7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-68020
9454201400
main94542-01400
26 parts on this diagram · 4 diagrams in section
