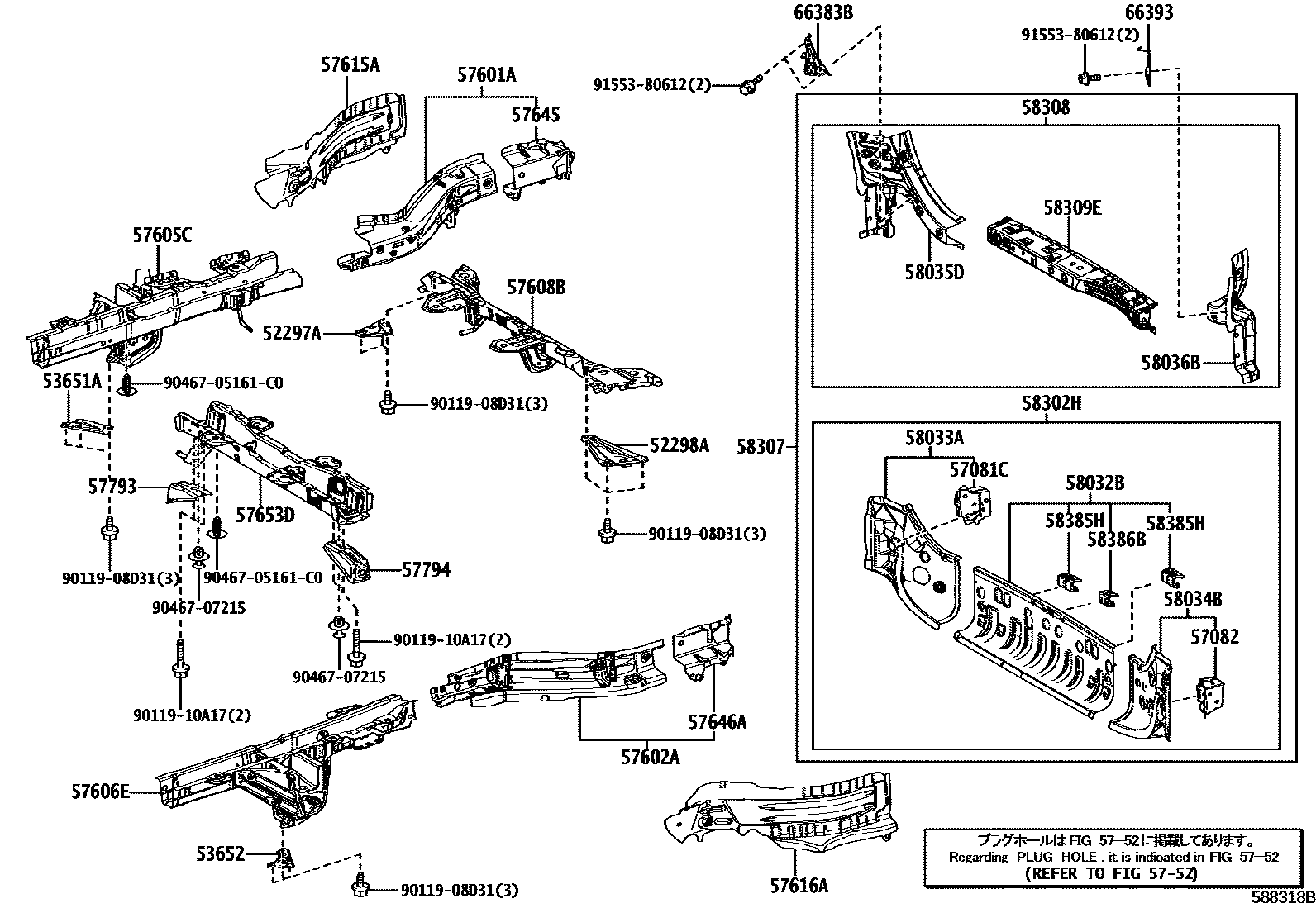

REAR FLOOR PANEL & REAR FLOOR MEMBER
52297ABRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52298ABRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
53651ABRACE, REAR SUSPENSION, UPPER RH
53652BRACE, REAR SUSPENSION, UPPER LH
57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
5752HOLE PLUG
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57653DMEMBER, REAR FLOOR CROSS, NO.2
57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
58032BPANEL SUB-ASSY, REAR FLOOR, CENTER
58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH
58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
58302HPANEL SUB-ASSY, LOWER BACK
58307PANEL SUB-ASSY, BODY LOWER BACK
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58309EPLATE SUB-ASSY, REAR FLOOR
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
66383BBRACKET, ROPE HOOK, NO.1 RH
66393BRACKET, ROPE HOOK, NO.1 LH
9011908D31
main90119-08D31
9011910A17
main90119-10A17
9046705161C0
main90467-05161C0
9046707215
main90467-07215
9155380612
main91553-80612
37 parts on this diagram · 2 diagrams in section
