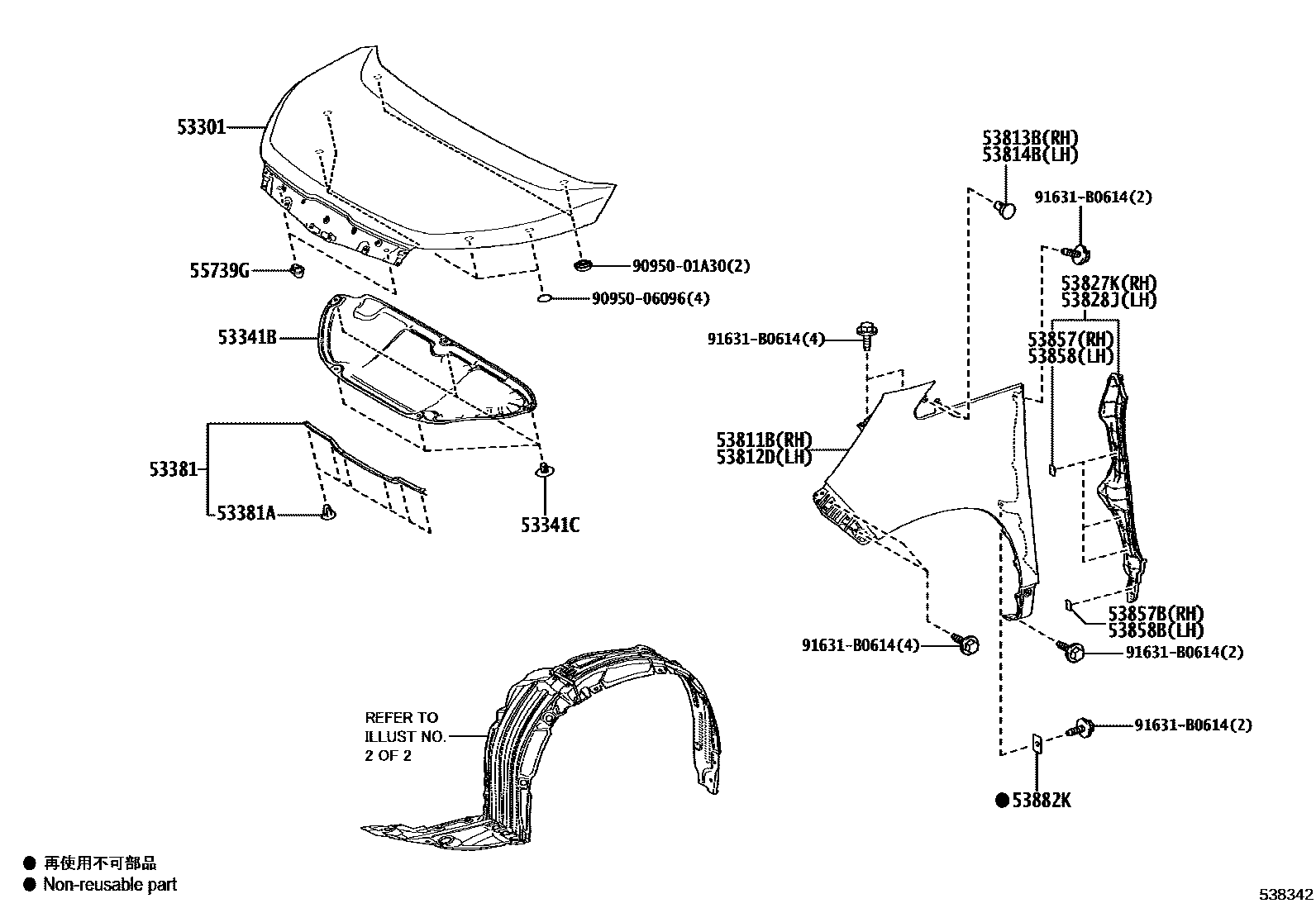

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-V1010iMZRA90..S202201-202501

main53301-V1020iMZRA90..R202201

53341BINSULATOR, HOOD

main53341-V1010iMZRA90..S202201-202501

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iMZRA90..S202201-202501

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-V1010iMZRA90..S202201-202501

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iMZRA90..S202201-202501

53811BPANEL, FRONT FENDER, RH

main53811-V1010iMZRA90..S202201-202501

main53811-V1020iMZRA90..R202201

53812DPANEL, FRONT FENDER, LH

main53812-V1010iMZRA90..S202201-202501

main53812-V1020iMZRA90..R202201

53813BEXTENSION, FRONT FENDER, RH

main53813-71010×2iMZRA90..S202201-202501

53814BEXTENSION, FRONT FENDER, LH

main53813-71010×2iMZRA90..S202201-202501

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-V1010iMZRA90..S202201-202501

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-V1010iMZRA90..S202201-202501

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iMZRA90..S202201-202501

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZRA90..S202201-202501

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×3iMZRA90..S202201-202501

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMZRA90..S202201-202501

53882KSEAL, FRONT FENDER

main53882-16030×2iMZRA90..S202201-202501

55739GSTOPPER, HOOD

main55739-28010×2iMZRA90..S202201-202501

9095001A30

main90950-01A30

9095006096

main90950-06096

91631B0614

main91631-B0614

20 parts on this diagram · 3 diagrams in section
