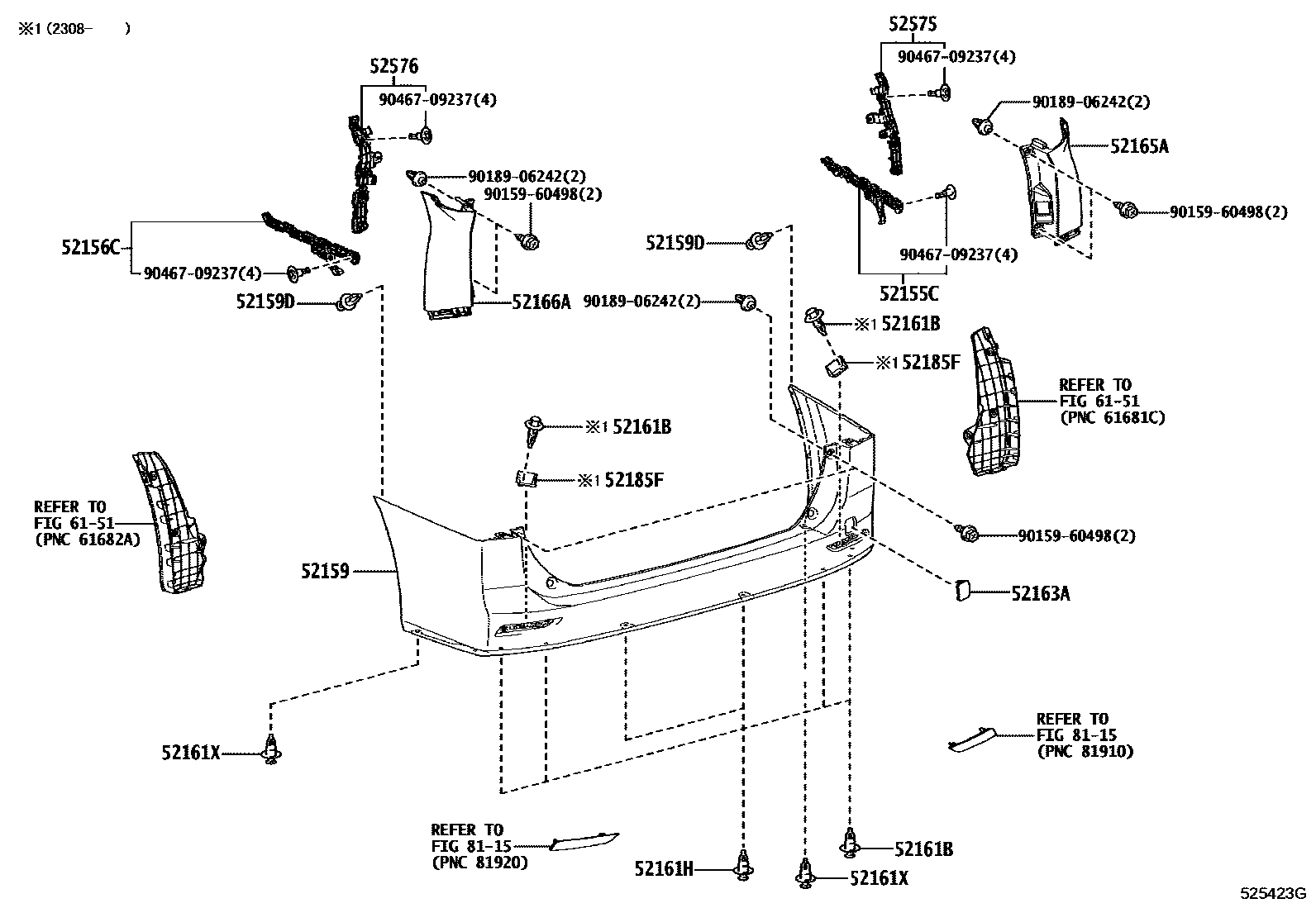

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-V1010iMZRA90..S202201-202501

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-V1010iMZRA90..S202201-202501

52159COVER, REAR BUMPER

main52159-V1901iMZRA90..G202201

PAINT REQ.

main52159-V1906iMZRA90..S202201-202501

PAINT REQ.

52159DCLIP, REAR BUMPER COVER

main90467-05170×2iMZRA90..S202201-202501

52161BPIECE, REAR BUMPER

main52161-16010×6iMZRA90..S202309-202501

52161HPIECE, REAR BUMPER

main52161-16010×2iMZRA90..S202201-202501

52161XPIECE, REAR BUMPER

main52161-16010×2iMZRA90..S202201-202501

52163APLATE, REAR BUMPER, RH

main52163-V1030iMZRA90..S202201-202501

main52163-V1900iMZRA90..G202201

52165ACOVER, REAR BUMPER, UPR RH

main52165-V1901iMZRA90..S202201-202501

PAINT REQ.

52166ACOVER, REAR BUMPER, UPR LH

main52166-V1901iMZRA90..S202201-202501

PAINT REQ.

52185FBRACKET, REAR BUMPER SIDE MOUNTING

main52185-V1040×2iMZRA90..S202309-202501

52575RETAINER, REAR BUMPER SIDE, RH

main52575-V1010iMZRA90..S202201-202501

52576RETAINER, REAR BUMPER SIDE, LH

main52576-V1010iMZRA90..S202201-202501

6151SIDE MEMBER

→ Go to FIG 61-51

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9015960498

main90159-60498

9018906242

main90189-06242

9046709237

main90467-09237

18 parts on this diagram · 2 diagrams in section
