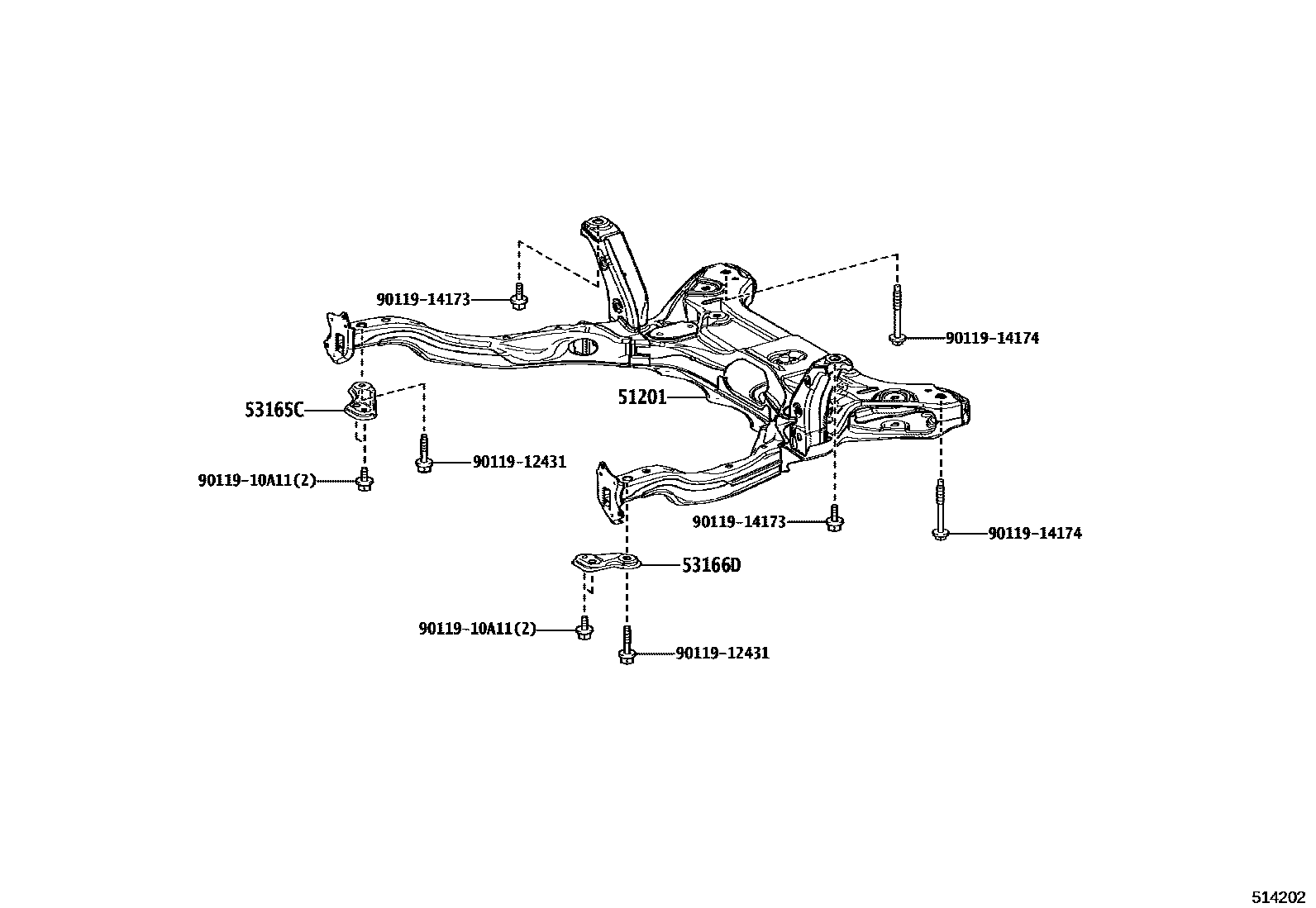

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-V1010iMZRA90..S202201-202501

53165CSUPPORT, RADIATOR, CENTER RH

main53165-V1010iMZRA90..S202201-202501

53166DSUPPORT, RADIATOR, CENTER LH

main53166-V1010iMZRA90..S202201-202501

9011910A11

main90119-10A11

9011912431

main90119-12431

9011914173

main90119-14173

9011914174

main90119-14174

7 parts on this diagram · 2 diagrams in section
