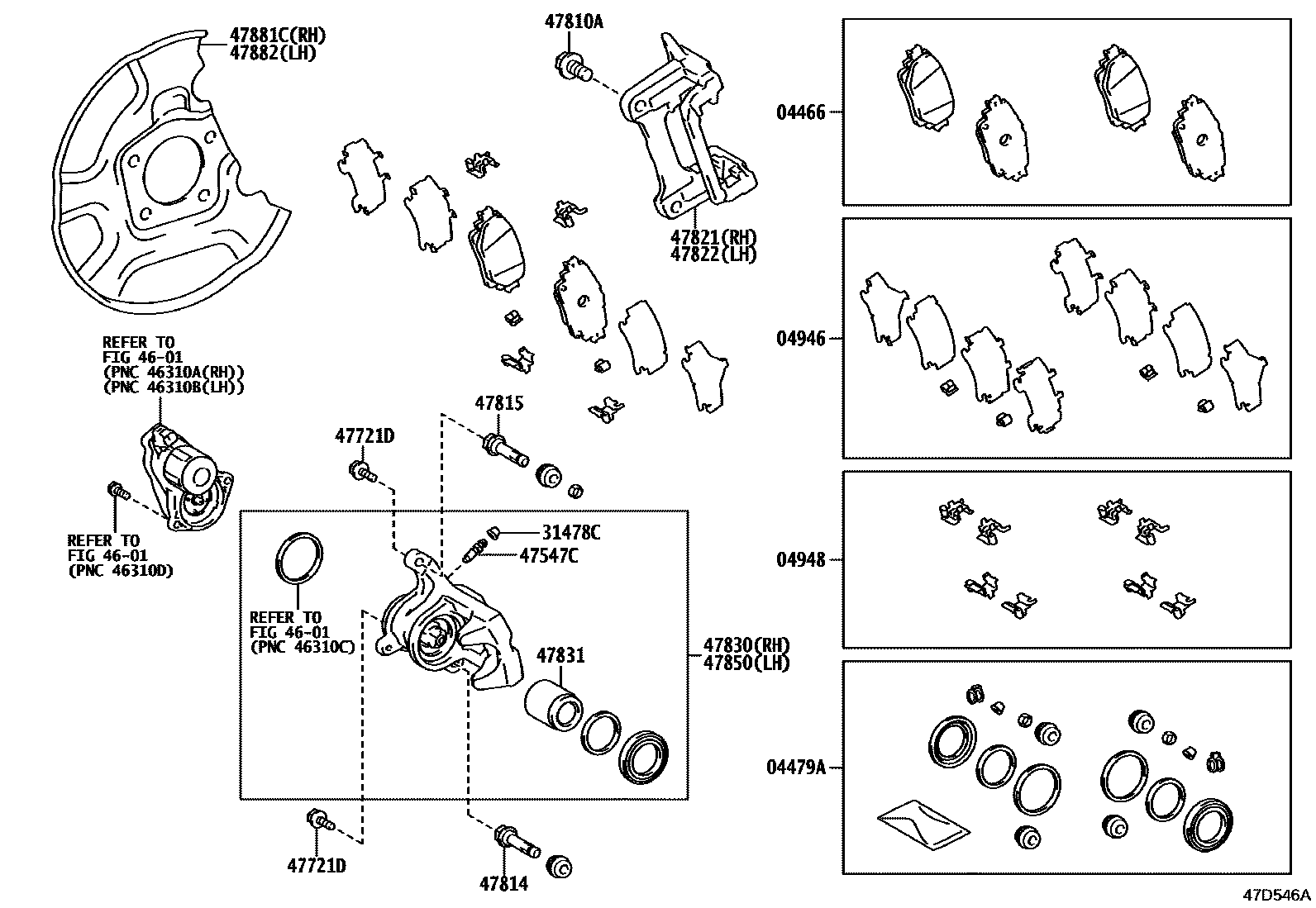

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28160iMZRA90..S202201-202501

MARK ADVICS VC123

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28210iMZRA90..S202201-202501

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28040iMZRA90..S202201-202501

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iMZRA90..S202201-202501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMZRA90..S202201-202501

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMZRA90..S202201-202501

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iMZRA90..S202201-202501

*8-1.00PX23-12.5

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14196×4iMZRA90..S202201-202501

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iMZRA90..S202201-202501

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iMZRA90..S202201-202501

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-28100iMZRA90..S202201-202501

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-28100iMZRA90..S202201-202501

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-28100iMZRA90..S202201-202501

47831PISTON, REAR DISC BRAKE

main47831-28100×2iMZRA90..S202201-202501

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-28100iMZRA90..S202201-202501

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-V1010iMZRA90..S202201-202501

47882COVER, DISC BRAKE DUST, REAR LH

main47882-V1010iMZRA90..S202201-202501

18 parts on this diagram · 1 diagram in section
