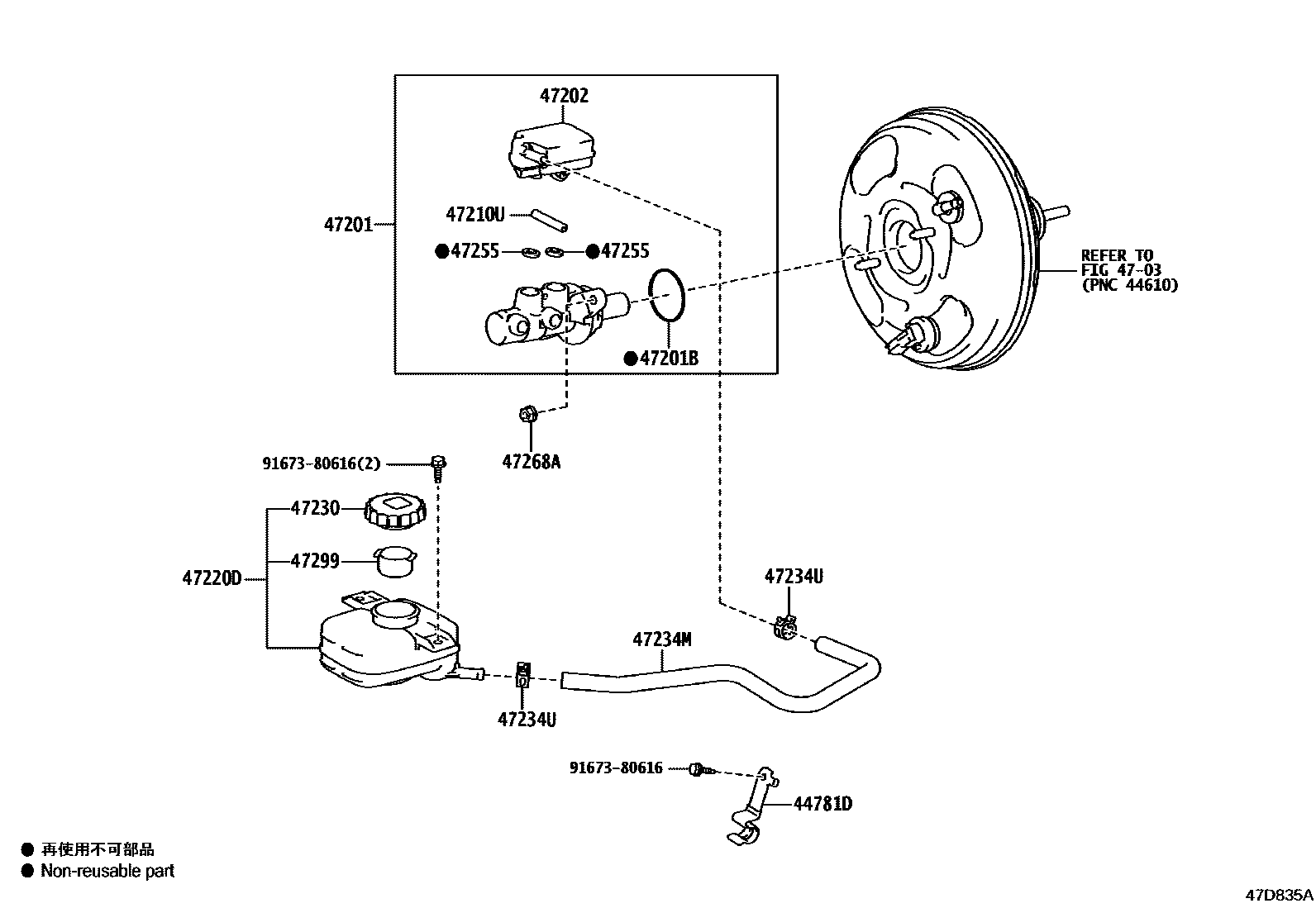

BRAKE MASTER CYLINDER

44781DBRACKET, RESERVOIR HOSE

main44781-V1010iMZRA90..S202201-202501

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28740iMZRA90..S202201-202501

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMZRA90..S202201-202501

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28360iMZRA90..S202201-202501

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMZRA90..S202201-202501

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-V1010iMZRA90..S202201-202501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMZRA90..S202201-202501

47234MHOSE, RESERVOIR, NO.1

main47234-V1010iMZRA90..S202201-202501

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801×2iMZRA90..S202201-202501

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iMZRA90..S202201-202501

47268ANUT, BRAKE MASTER CYLINDER

main90179-08204×2iMZRA90..S202201-202501

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZRA90..S202201-202501

9167380616

main91673-80616

14 parts on this diagram · 1 diagram in section
