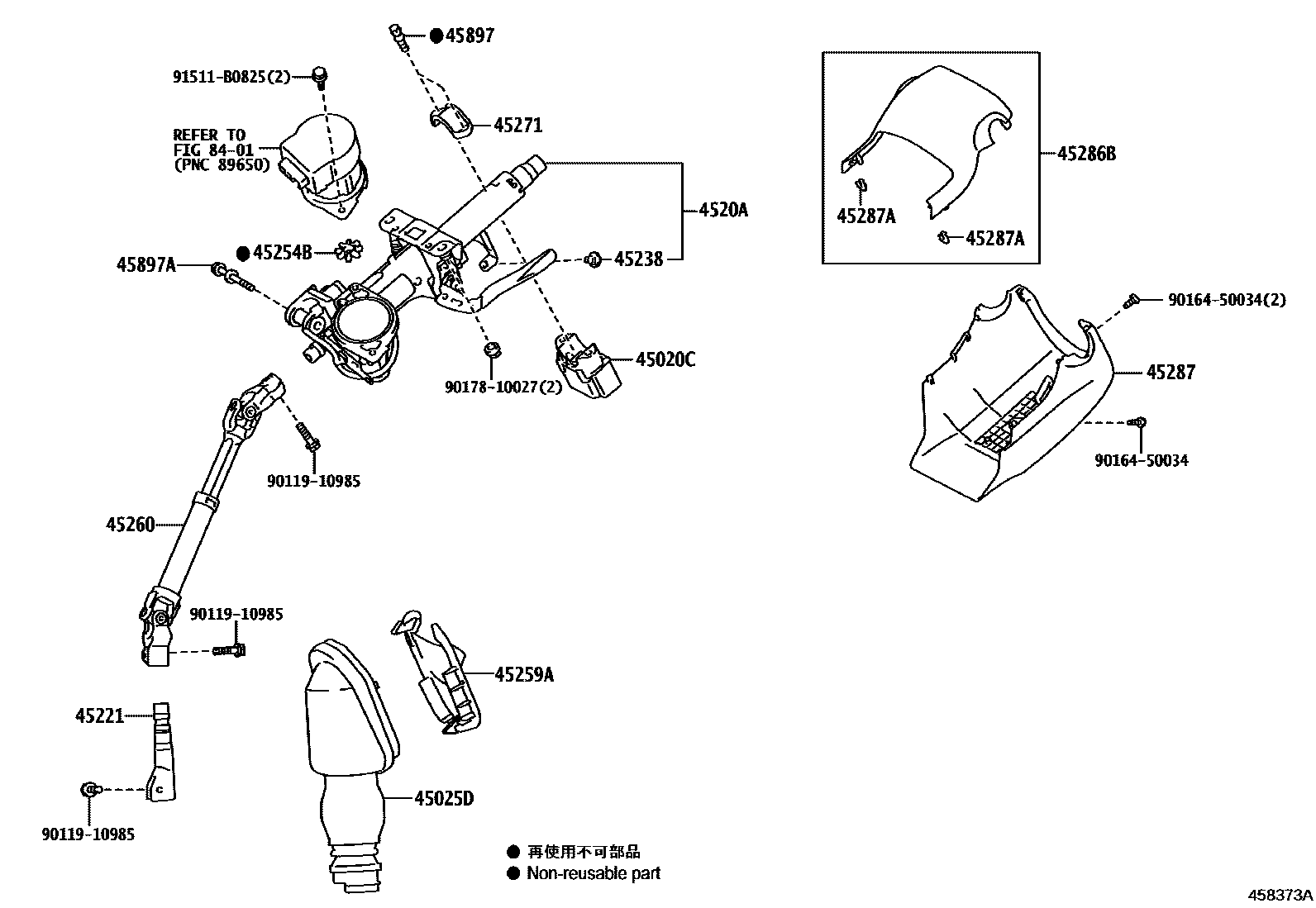

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010iMZRA90202201-202501

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-V1010iMZRA90..S202201-202501

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-28180iMZRA90202201-202501

45221SHAFT, STEERING INTERMEDIATE

main45221-28160iMZRA90..S202201-202501

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMZRA90202201-202501

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMZRA90202201-202501

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-V1010iMZRA90..S202201-202501

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28200iMZRA90..S202201-202501

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMZRA90202201-202501

45286BCOVER, STEERING COLUMN, UPR

main45286-28400-C0iMZRA90..S202201-202501

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-12110-C0iMZRA90..S202201-202501

BLACK,TRIM2#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171×2iMZRA90..S202201-202501

45897BOLT, STEERING LOCK SET

main45897-12020×2iMZRA90202201-202501

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMZRA90..S202201-202501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910985

main90119-10985

9016450034

main90164-50034

9017810027

main90178-10027

91511B0825

main91511-B0825

19 parts on this diagram · 1 diagram in section
