STANDARD TOOL

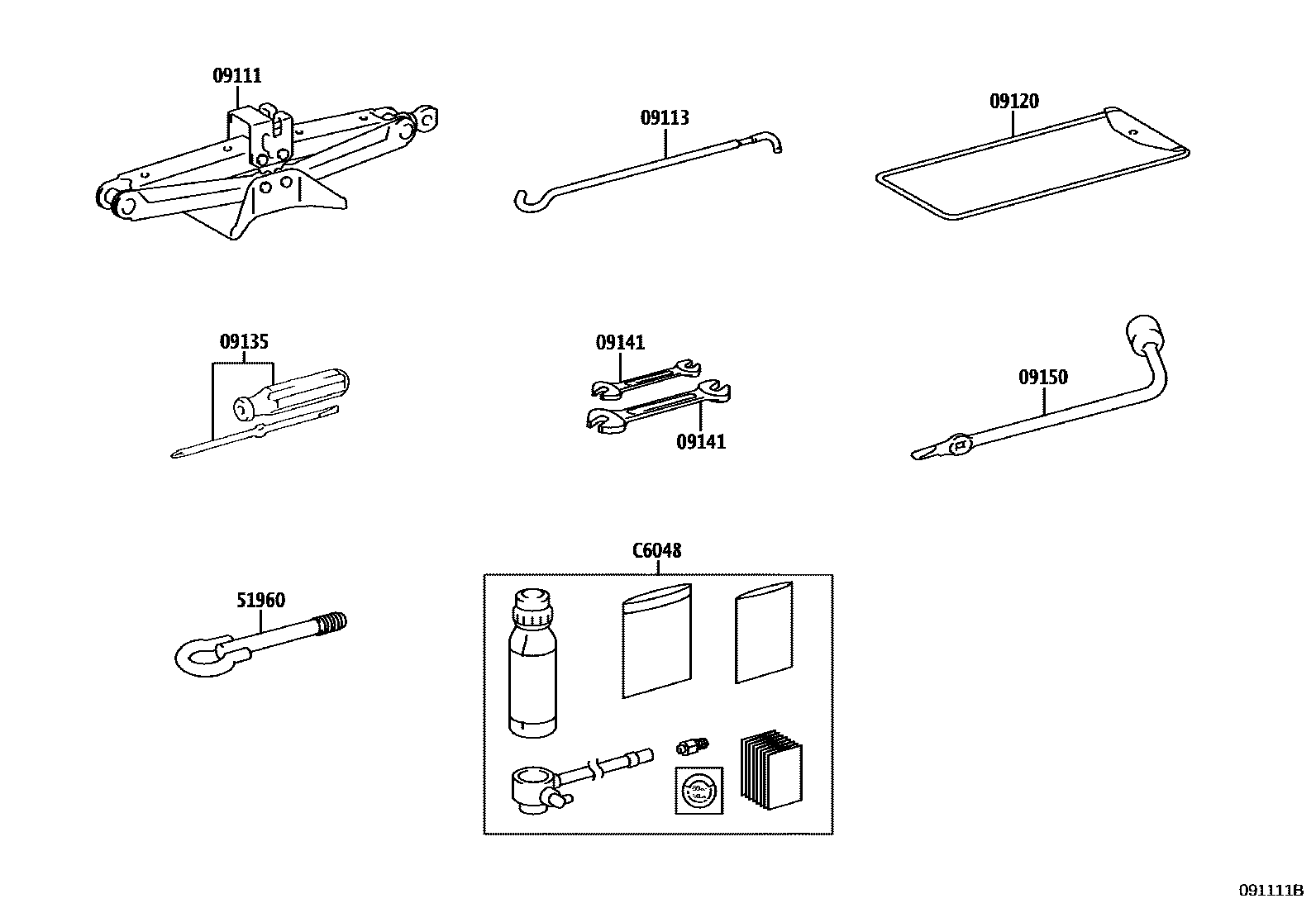

Parts diagram

09111JACK SUB-ASSY

main09111-28150i202201

09113HANDLE, JACK

main09113-42030i202201-202501

09120BAG, TOOL

main09120-37030i202201

09135DRIVER, SCREW

main99915-10700i202201-202501

09141SPANNER

main99914-10810i202201-202501

8 X 10

main99914-11214i202201-202501

12 X 14

09150WRENCH, HUB NUT BOX

main09150-42010i202201-202501

51960HOOK ASSY, FRONT

main51960-V1010i202201-202501

C6048REPAIR SET, TIRE

main42683-K0010i202201-202501

8 parts on this diagram · 1 diagram in section
