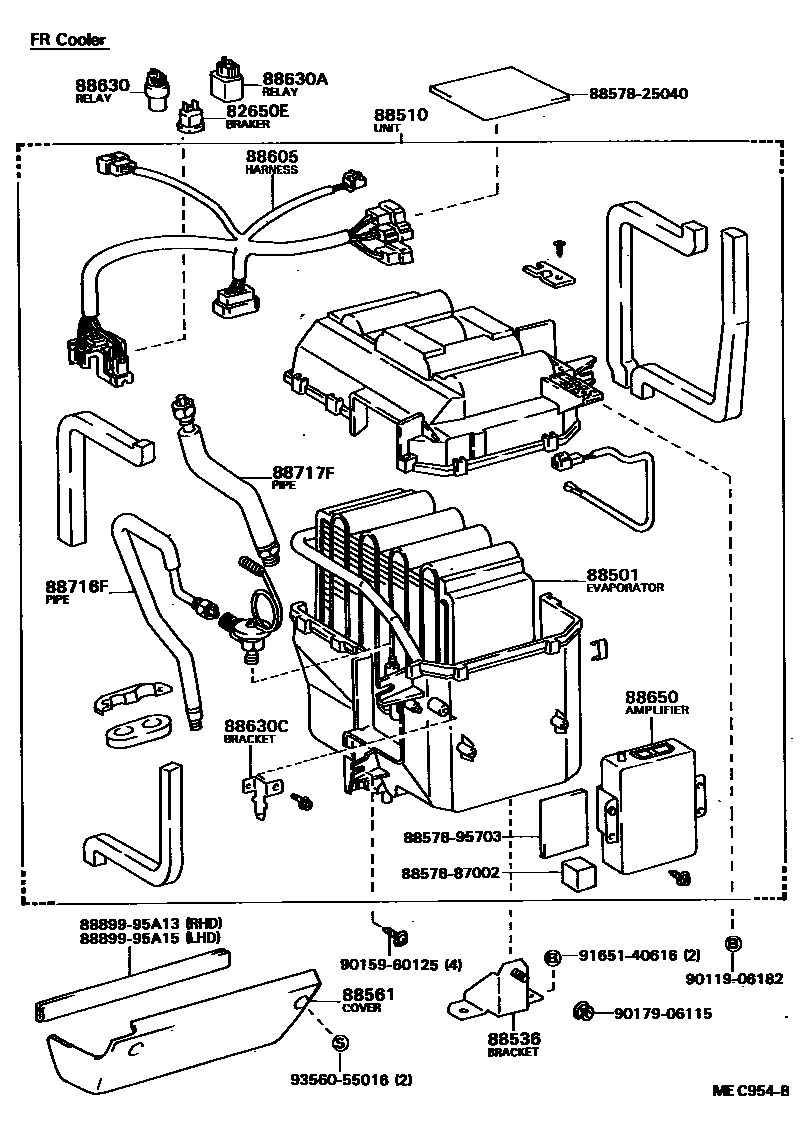

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-35010iCR21,YR20,21..RHD..(ARL,GEN)198211-198808

20A

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28010iYR20,21..LHD..GEN198211-198603

FR

main88501-28011iYR21..GEN198603-198808

FR

main88501-87006iCR21,YR2#..RHD..(ARL,GEN)198211-198808

FR

main88501-87007iCR21,YR2#..ARL,GEN198211-198706

RR

main88501-87008iCR21,YR2#,31..ARL,GEN198211-198808

COOL BOX

main88501-87010iYR21..GEN198706-198808

RR

main88501-87011iCR21,YR2#..ARL198706-198808

RR

88510UNIT ASSY, COOLER

main88510-28020iYR2#..LHD..GEN198211-198408

FR,W/FR HEATER

main88510-28030iYR2#..LHD..GEN198211-198408

FR,W/BOOST VENTILATOR

main88510-28070iYR21..LHD..GEN198408-198508

FR,W/FR HEATER

main88510-28080iYR21..LHD..GEN198408-198508

FR,W/BOOST VENTILATOR

main88510-28131iYR21..GEN198508-198808

main88510-28141iYR21..GEN198508-198808

W/*BV

main88510-87011iCR21,YR2#..ARL,GEN198211-198808

RR

main88510-87013iYR2#..RHD..(ARL,GEN)198211-198408

FR,W/FR HEATER

main88510-87014iYR20..RHD..GEN198211-198408

FR,W/BOOST VENTILATOR

main88510-87015iCR21..ARL,GEN198305-198408

FR,W/FR HEATER

main88510-87016iCR21..GEN198305-198408

FR,W/BOOST VENTILATOR

main88510-87017iCR21..ARL198408-198508

SINGLE AIR CONDITIONER

main88510-87019iYR21..RHD..(ARL,GEN)198408-198508

FR,W/FR HEATER

main88510-87020iYR21..RHD..GEN198408-198508

FR,W/BOOST VENTILATOR

main88510-87023iCR21198408-198508

FR,W/FR HEATER

main88510-87024iCR21..GEN198408-198508

FR,W/BOOST VENTILATOR

main88510-87032iCR21,YR2#..ARL198508-198808

FR

88536BRACKET, COOLING UNIT, NO.1

main88536-28010iYR20,21..LHD..GEN198211-198808

main88536-87013iCR21,YR2#..RHD..(ARL,GEN)198211-198808

88561COVER, COOLER UNIT

main88899-28010iYR20,21..LHD..GEN198211-198808

main88899-87012iCR21,YR20,21..RHD..(ARL,GEN)198211-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-28010iYR2#..LHD..GEN198211-198408

W/FR HEATER

main88605-28020iYR2#..LHD..GEN198211-198408

W/BOOST VENTILATOR

main88605-28060iYR21..LHD..GEN198408-198508

W/FR HEATER

main88605-28070iYR21..LHD..GEN198408-198508

W/BOOST VENTILATOR

main88605-28151iYR21..GEN198508-198808

W/*BV

main88605-28161iYR21..GEN198508-198808

main88605-87026iCR21..ARL198408-198508

SINGLE AIR CONDITIONER

main88605-87029iYR2#..RHD..(ARL,GEN)198211-198508

W/FR HEATER

main88605-87030iCR21..ARL,GEN198305-198508

W/FR HEATER

main88605-87031iYR20..RHD..GEN198211-198508

W/BOOST VENTILATOR

main88605-87032iCR21..GEN198305-198508

W/BOOST VENTILATOR

main88605-87034iYR21..RHD..GEN198408-198508

W/BOOST VENTILATOR

main88605-87042iCR21,YR21..RHD..(ARL,GEN)198408-198508

W/RR COOLER SWITCH(FR)

main88605-87064iCR21,YR21..ARL198508-198808

main88605-87065iYR22,31..ARL198508-198808

88630RELAY ASSY, COOLER

main90987-03001iCR21,YR2#..ARL,GEN198211-198508

88630ARELAY ASSY, COOLER

main85913-30020iCR21,YR2#..RHD..(ARL,GEN)198211-198508

main90987-02004iYR2#..LHD..GEN198211-198508

88630CBRACKET, COOLER RELAY

main88631-28010iYR20,21..LHD..GEN198211-198808

main88631-87001iCR21,YR2#..RHD..(ARL,GEN)198211-198808

(NO.1)

main88631-87002iCR21,YR2#..ARL198508-198808

(NO.2)

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iCR21..ARL198408-198508

SINGLE AIR CONDITIONER

main88650-28020iYR2#..ARL198508-198808

(NO.2)

main88650-87002iCR21..GEN198305-198408

FR COOLING UNIT,W/*BV

main88650-87006iCR21..ARL,GEN198305-198408

FR COOLING UNIT,W/FR HEATER

main88650-87009iCR21,YR2#..ARL,GEN198211-198405

COOL BOX

main88650-87011iCR21,YR2#,31..ARL,GEN198405-198808

COOL BOX

main88650-87012iYR21..GEN198508-198808

FR COOLING UNIT

main88650-87013iCR21198408-198508

FR COOLING UNIT,W/FR HEATER

main88650-87015iYR22..ARL198508-198808

(NO.1)

main88650-87019iCR21198508-198808

(NO.2)

main88650-87020iYR21..ARL198508-198808

(NO.1)

main88650-87021iCR21198508-198808

(NO.1)

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-87042iCR21,YR2#,31..ARL,GEN198211-198808

COOL BOX

main88716-87051iCR21,YR21..RHD..(ARL,GEN)198408-198508

COOLER UNIT

88717FPIPE, COOLER REFRIGERANT SUCTION, F

main88717-87036iCR21,YR2#..ARL,GEN198211-198808

COOL BOX

main88717-87048iCR21,YR21..RHD..(ARL,GEN)198408-198508

COOLER UNIT

8857825040PAKING, COOLER AIR DUCT

main88578-25040

8857887002PAKING, COOLER AIR DUCT

main88578-87002

8857895703PAKING, COOLER AIR DUCT

main88578-95703

8889995A13COVER, EVAPORATOR

main88899-95A13

8889995A15COVER, EVAPORATOR

main88899-95A15

9011906182

main90119-06182

9015960125

main90159-60125

9017906115

main90179-06115

9165140616

main91651-40616

9356055016

main93560-55016

22 parts on this diagram · 7 diagrams in section
