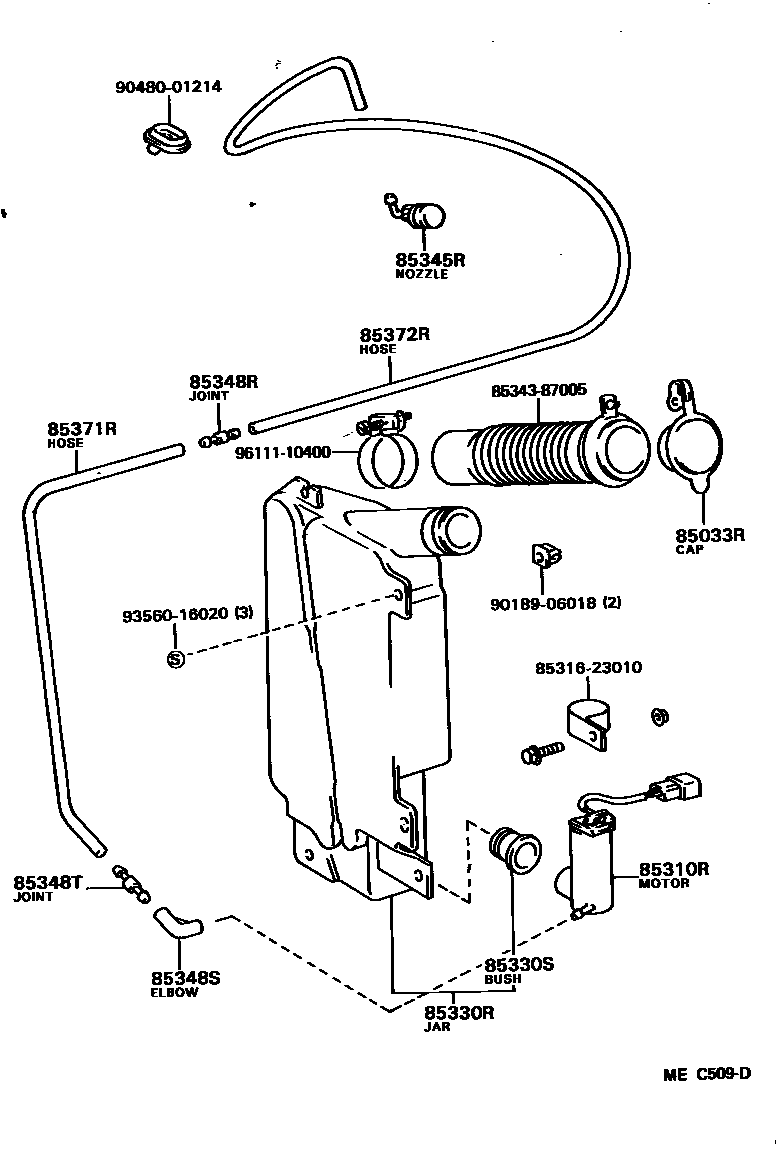

REAR WASHER

0001 1 0002 1

85033RCAP ASSY, REAR WASHER

main85332-87001iCR21,YR2#198211-198408

85310RMOTOR ASSY, REAR WASHER

main85310-22080iCR21,YR2#198211-198408

85330RJAR ASSY, REAR WASHER

main85330-87004iCR21,YR2#198211-198408

85330SBUSH, REAR WASHER JAR

main90099-32089iCR21,YR2#198211-198408

85345RNOZZLE, REAR WASHER

main85035-16040iCR21,YR2#,31..MRF198408-198808

main85035-23030iCR21,YR2#198211-198408

main85035-87006iYR22..HRF198508-198808

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-12250iCR21,YR2#,31198408-198808

main85355-87201iCR21,YR2#198211-198408

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iCR21,YR2#198211-198408

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iCR21,YR2#,31198211-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iCR21,YR2#198211-198408

L=1450(*H,L=400)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iCR21,YR2#,31198211-198808

L=1800(*H,L=150)

8531623010SUPPORT, WINDSHIELD WASHER MOTOR

main85316-23010

8534387005HOSE, WINDSHIELD WASHER SUCTION

main85343-87005

9018906018

main90189-06018

9048001214

main90480-01214

9356016020

main93560-16020

9611110400

main96111-10400

16 parts on this diagram · 2 diagrams in section
