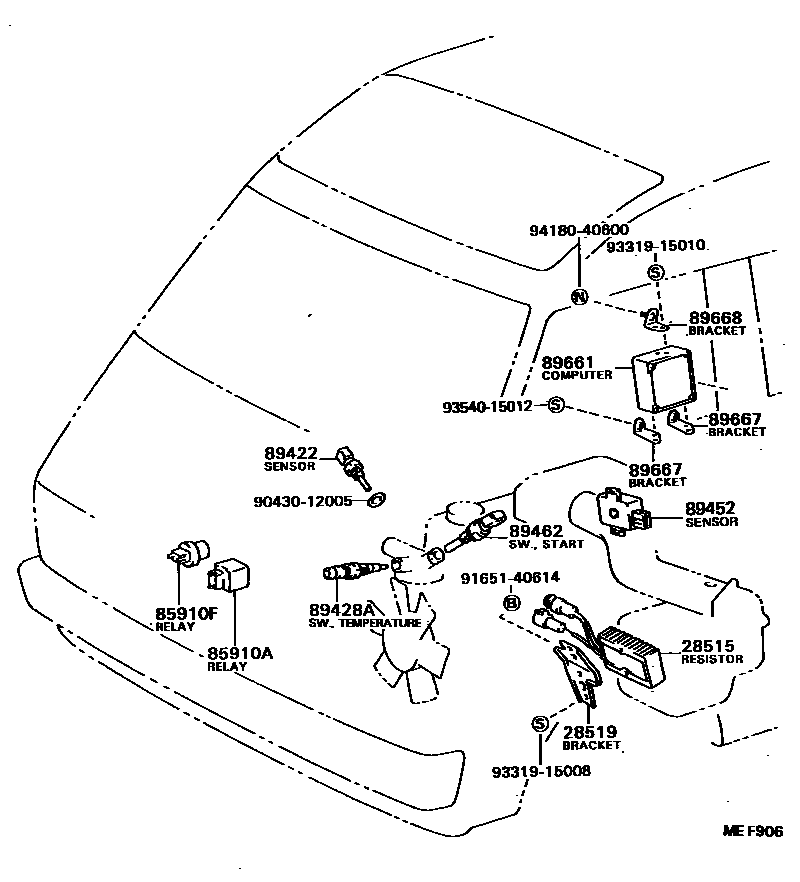

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-26020i4YEC..YR22,31198508-198808

sub28515-35010

28519BRACKET, SOLENOID RESISTOR

main28519-28010i4YEC..YR22,31198508-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iYR22,31198508-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR22,31198508-198808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iYR22,31198508-198808

sub89422-12010

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iYR22,31198508-198808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iYR22,31198508-198808

89462SWITCH, START INJECTOR TIME

main89462-30011iYR22..DLX..EUR198708-198808

SWEDEN SPEC

main89462-30011iYR22,31198508-198708

main89462-40010iYR22..GL..EUR198708-198808

89661COMPUTER, ENGINE CONTROL

main89661-28040iYR22,31198508-198708

main89661-28040iYR22..DLX..EUR198708-198808

SWEDEN SPEC

main89661-28060iYR22..4FC..EUR198608-198708

main89661-28080iYR31..EUR198708-198804

sub89661-28081

main89661-28081iYR31..EUR198804-198808

main89661-28100iYR22,31..ARL198608-198808

89667BRACKET, ENGINE CONTROL COMPUTER

main89567-28010iYR22,31198508-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR22,31198508-198808

main89661-28040iYR31..ARL198608-198808

main89661-28060iYR31..EUR198608-198808

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

9354015012

main93540-15012

9418040600

main94180-40600

17 parts on this diagram · 1 diagram in section
