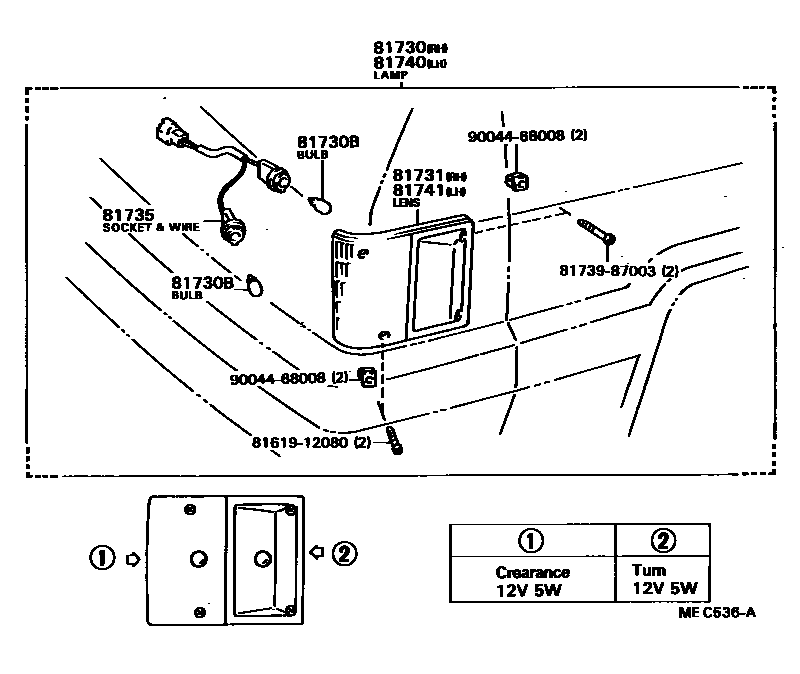

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-29235iCR21,YR2#198211-198508

main81730-29265iCR21,YR2#,31..ARL198508-198808

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iCR21,YR2#,31198211-198808

12V 5W,12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-87004iCR21,YR2#198211-198508

main81731-87007iCR21,YR2#,31..ARL198508-198808

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iCR21,YR2#,31..ARL198508-198808

main81735-87004×2iCR21,YR2#198211-198508

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-29225iCR21,YR2#198211-198508

main81740-29255iCR21,YR2#,31..ARL198508-198808

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-87004iCR21,YR2#198211-198508

main81741-87007iCR21,YR2#,31..ARL198508-198808

8161912080

main81619-12080

8173987003

main81739-87003

9004468008

main90044-68008

9 parts on this diagram · 2 diagrams in section
