ARMREST & VISOR

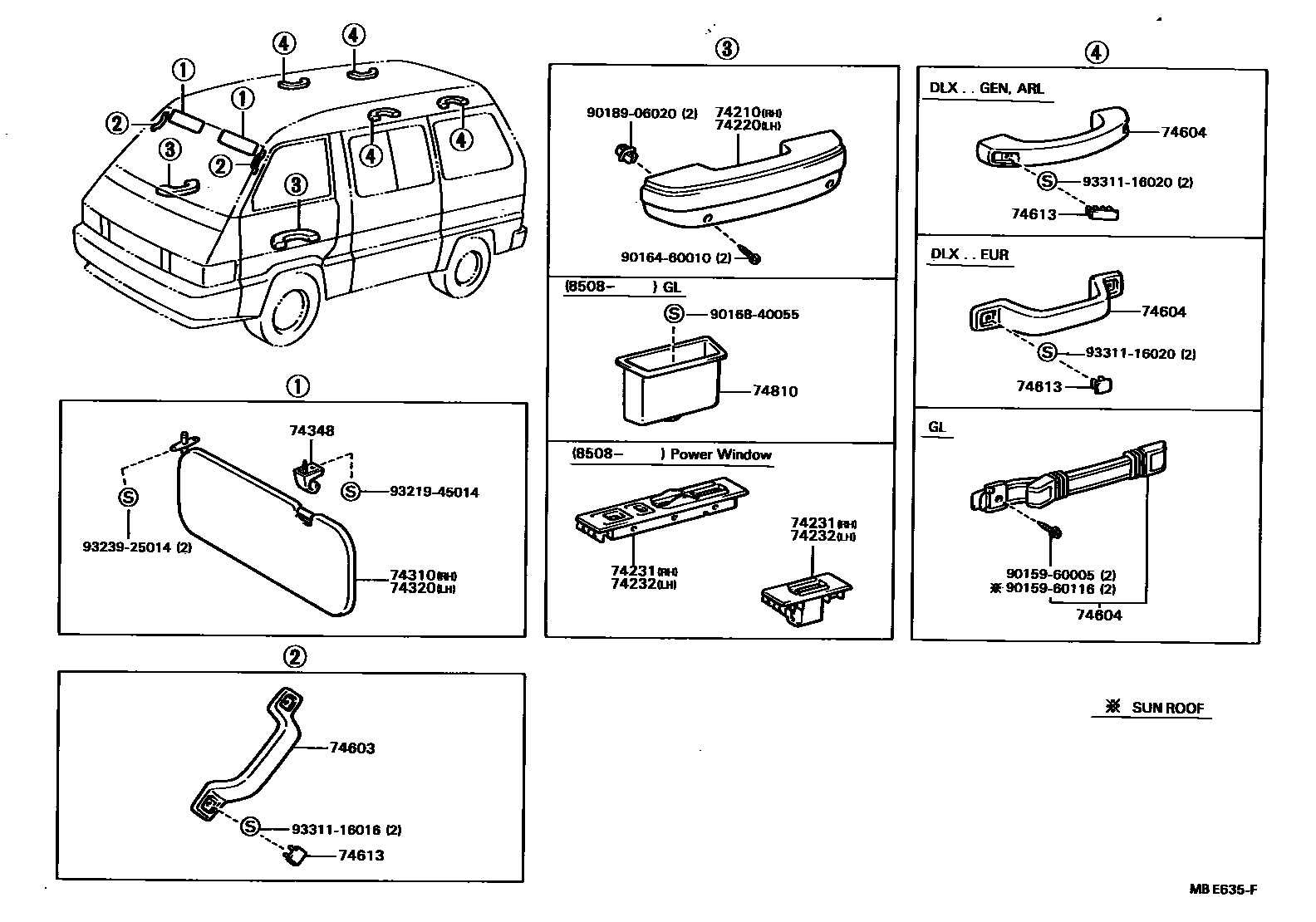

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74250-20010-02i198408-198508
WINE,RED/MAROON,TRIM4#
main74250-20010-03i198211-198408
GRAY,GRAY,TRIM1#
main74250-20010-14i198408-198508
BLUE,BLUE,TRIM1#
main74250-20010-15i198211-198408
BEIGE,BEIGE,TRIM4#
main74250-20010-45i198508-198808
BEIGE,BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74250-20010-02i198408-198508
WINE,RED/MAROON,TRIM4#
main74250-20010-03i198211-198408
GRAY,GRAY,TRIM1#
main74250-20010-14i198408-198508
BLUE,BLUE,TRIM1#
main74250-20010-15i198211-198408
BEIGE,BEIGE,TRIM4#
main74250-20010-45i198508-198808
BEIGE,BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-87001-04i198508-198601
W/*PW,BLUE,BLUE,TRIM8#
main74231-87001-06i198508-198601
W/*PW,BROWN,BROWN,TRIM4#
main74231-87002-04i198601-198808
W/*PW,BLUE,BLUE,TRIM8#
main74231-87002-06i198601-198808
W/*PW,BROWN,BROWN,TRIM4#
main74232-87001-03i198608-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main74232-87001-04i198508-198608
W/*PW,BLUE,BLUE,TRIM8#
main74232-87001-06i198508-198808
W/*PW,BROWN,BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-87001-04i198508-198601
W/*PW,BLUE,BLUE,TRIM8#
main74231-87001-06i198508-198601
W/*PW,BROWN,BROWN,TRIM4#
main74231-87002-03i198608-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main74231-87002-04i198601-198608
W/*PW,BLUE,BLUE,TRIM8#
main74231-87002-06i198601-198808
W/*PW,BROWN,BROWN,TRIM4#
main74232-87001-04i198508-198808
W/*PW,BLUE,BLUE,TRIM8#
main74232-87001-06i198508-198808
W/*PW,BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-28020-03i198211-198603
W/MIRROR,GRAY,GRAY,TRIM1#,8#
main74310-28020-05i198211-198408
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74310-28020-15i198408-198508
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74310-28020-25i198508-198603
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74310-28021-03i198603-198808
W/MIRROR,GRAY,GRAY,TRIM1#,8#
main74310-28021-05i198603-198808
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74310-28030-03i198211-198308
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-28030-05i198211-198308
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28031-03i198308-198408
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-28031-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28031-13i198408-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-28031-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28031-23i198508-198603
W/SUN ROOF,GRAY,GRAY,TRIM8#
main74310-28031-25i198508-198603
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28032-03i198603-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-28032-05i198603-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87011-03i198603-198608
GRAY,GRAY,TRIM8#; SWEDEN SPEC,GRAY,GRAY,TRIM8#
main74310-87011-05i198603-198608
BEIGE,BEIGE,TRIM4#; SWEDEN SPEC,BEIGE,BEIGE,TRIM4#
main74310-87013-03i198603-198608
W/SUN ROOF,GRAY,GRAY,TRIM8#
main74310-87013-05i198603-198701
SWEDEN SPEC,W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87014-03i198608-198808
GRAY,GRAY,TRIM1#,8#
main74310-87014-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74310-87015-03i198211-198310
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87015-05i198211-198310
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87017-03i198211-198408
GRAY,GRAY,TRIM1#
main74310-87017-05i198211-198408
BEIGE,BEIGE,TRIM4#
main74310-87017-13i198408-198603
GRAY,GRAY,TRIM1#,8#; SWEDEN SPEC,GRAY,GRAY,TRIM1#,8#
main74310-87017-15i198408-198508
BEIGE,BEIGE,TRIM4#; SWEDEN SPEC,BEIGE,BEIGE,TRIM4#
main74310-87017-35i198508-198603
BEIGE,BEIGE,TRIM4#; SWEDEN SPEC,BEIGE,BEIGE,TRIM4#
main74310-87018-03i198211-198408
GRAY,GRAY,TRIM1#
main74310-87018-05i198211-198408
BEIGE,BEIGE,TRIM4#
main74310-87018-13i198408-198608
GRAY,GRAY,TRIM1#,8#
main74310-87018-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74310-87018-25i198508-198608
BEIGE,BEIGE,TRIM4#
main74310-87019-03i198211-198310
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87019-05i198211-198310
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87030-03i198310-198408
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87030-05i198310-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87030-13i198408-198508
SWEDEN SPEC,W/SUN ROOF,GRAY,GRAY,TRIM1#; W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87030-15i198408-198508
SWEDEN SPEC,W/SUN ROOF,BEIGE,BEIGE,TRIM4#; W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87030-23i198508-198603
SWEDEN SPEC,W/SUN ROOF,GRAY,GRAY,TRIM8#; W/SUN ROOF,GRAY,GRAY,TRIM8#
main74310-87030-25i198508-198603
SWEDEN SPEC,W/SUN ROOF,BEIGE,BEIGE,TRIM4#; W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87031-03i198310-198408
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87031-05i198310-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87031-13i198408-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-87031-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87031-25i198508-198608
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-87043-03i198508-198608
GRAY,GRAY,TRIM8#
main74310-87043-05i198508-198608
BEIGE,BEIGE,TRIM4#
main74310-95D04-03i198601-198608
GRAY,GRAY,TRIM8#
main74310-95D04-05i198601-198608
BEIGE,BEIGE,TRIM4#
main74310-95D09-03i198608-198808
GRAY,GRAY,TRIM1#,8#
main74310-95D09-05i198608-198808
BEIGE,BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-28020-03i198211-198308
W/*SNR,GRAY,GRAY,TRIM1#
main74320-28020-05i198211-198308
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-28021-03i198308-198408
W/*SNR,GRAY,GRAY,TRIM1#
main74320-28021-05i198308-198408
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-28021-13i198408-198508
W/*SNR,GRAY,GRAY,TRIM1#
main74320-28021-15i198408-198508
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-28021-23i198508-198603
W/*SNR,GRAY,GRAY,TRIM8#
main74320-28021-25i198508-198603
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-28022-03i198603-198808
W/*SNR,GRAY,GRAY,TRIM1#,8#
main74320-28022-05i198603-198808
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-28050-03i198603-198808
GRAY,GRAY,TRIM1#,8#
main74320-28050-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74320-87004-03i198608-198808
GRAY,GRAY,TRIM8#
main74320-87004-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74320-87007-03i198608-198808
W/*SNR OR *SKR,GRAY,GRAY,TRIM8#
main74320-87007-05i198608-198808
W/*SNR OR *SKR,BEIGE,BEIGE,TRIM4#
main74320-87009-03i198211-198310
W/*SNR,GRAY,GRAY,TRIM1#
main74320-87009-05i198211-198310
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87010-03i198211-198408
GRAY,GRAY,TRIM1#
main74320-87010-05i198211-198408
BEIGE,BEIGE,TRIM4#
main74320-87010-13i198408-198603
GRAY,GRAY,TRIM1#,8#
main74320-87010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74320-87010-25i198508-198603
BEIGE,BEIGE,TRIM4#
main74320-87011-03i198211-198408
GRAY,GRAY,TRIM1#
main74320-87011-05i198211-198408
BEIGE,BEIGE,TRIM4#
main74320-87011-13i198408-198608
GRAY,GRAY,TRIM1#,8#
main74320-87011-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74320-87011-25i198508-198608
BEIGE,BEIGE,TRIM4#
main74320-87012-03i198211-198310
W/*SNR,GRAY,GRAY,TRIM1#
main74320-87012-05i198211-198310
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87013i198211-198408
BEIGE
main74320-87013-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74320-87013-25i198508-198608
BEIGE,BEIGE,TRIM4#
main74320-87014-03i198211-198603
GRAY,GRAY,TRIM1#,8#
main74320-87014-05i198211-198408
BEIGE,BEIGE,TRIM4#
main74320-87014-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74320-87014-35i198508-198603
BEIGE,BEIGE,TRIM4#
main74320-87017-03i198310-198408
W/*SNR,GRAY,GRAY,TRIM1#
main74320-87017-05i198310-198408
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87017-13i198408-198508
W/*SNR,GRAY,GRAY,TRIM1#
main74320-87017-15i198408-198508
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87017-23i198508-198603
W/*SNR,GRAY,GRAY,TRIM8#
main74320-87017-25i198508-198603
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87018-03i198310-198408
W/*SNR,GRAY,GRAY,TRIM1#
main74320-87018-05i198310-198408
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87018-13i198508-198608
W/*SNR OR *SKR,GRAY,GRAY,TRIM8#
main74320-87018-15i198408-198508
W/*SNR,BEIGE,BEIGE,TRIM4#
main74320-87018-25i198508-198608
W/*SNR OR *SKR,BEIGE,BEIGE,TRIM4#
main74320-95D03-03i198608-198808
GRAY,GRAY,TRIM1#
main74320-95D03-05i198608-198808
BEIGE,BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-32010-13×2i198211-198808
GRAY,GRAY,TRIM1#,8#
main74348-32010-15×2i198211-198408
BEIGE,BEIGE,TRIM4#
main74348-32010-25×2i198408-198508
BEIGE,BEIGE,TRIM4#
main74348-32010-35×2i198508-198808
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-16010-03×2i198211-198808
GRAY,GRAY,TRIM1#,8#
main74603-16010-05×2i198211-198408
BEIGE,BEIGE,TRIM4#
main74603-16010-15×2i198408-198505
BEIGE,BEIGE,TRIM4#
main74603-16010-25×2i198508-198808
BEIGE,BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-16010-05×3i198211-198408
BEIGE,BEIGE,TRIM4#
main74603-16010-15×4i198408-198508
BEIGE,BEIGE,TRIM4#
main74603-16010-25×4i198508-198808
BEIGE,BEIGE,TRIM4#
main74610-10020-15×4i198211-198408
BEIGE,BEIGE,TRIM4#
main74610-10020-35×4i198408-198508
BEIGE,BEIGE,TRIM4#
main74610-10020-45×4i198508-198808
BEIGE,BEIGE,TRIM4#
main74610-14030-05×4i198211-198408
W/*SNR,BEIGE,BEIGE,TRIM4#
main74610-14030-13×4i198508-198808
W/*SNR OR *SKR,GRAY,GRAY,TRIM1#,8#
main74610-14030-25×4i198408-198508
W/*SNR,BEIGE,BEIGE,TRIM4#
main74610-14030-35×4i198508-198808
W/*SNR OR *SKR,BEIGE,BEIGE,TRIM4#
main74610-87005-03×4i198211-198808
GRAY,GRAY,TRIM1#,8#
main74610-87005-05×4i198211-198408
BEIGE,BEIGE,TRIM4#
main74610-87005-15×4i198408-198508
BEIGE,BEIGE,TRIM4#
main74610-87005-25×4i198508-198808
BEIGE,BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
main74617-14010-05×8i198211-198408
RR,BEIGE,BEIGE,TRIM4#
main74617-14010-25×8i198408-198508
RR,BEIGE,BEIGE,TRIM4#
main74617-14010-45×8i198508-198808
RR,BEIGE,BEIGE,TRIM4#
main74617-16010-05×6i198211-198408
FR,BEIGE,BEIGE,TRIM4#; RR,BEIGE,BEIGE,TRIM4#
main74617-16010-13×4i198211-198808
FR,GRAY,GRAY,TRIM1#,8#
main74617-16010-35×4i198408-198508
FR,BEIGE,BEIGE,TRIM4#; RR,BEIGE,BEIGE,TRIM4#
main74617-16010-45×4i198508-198808
FR,BEIGE,BEIGE,TRIM4#; RR,BEIGE,BEIGE,TRIM4#
74810PULL ASSY, DOOR, INSIDE
main74811-87001-03×2i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main74811-87001-04×2i198508-198608
BLUE,BLUE,TRIM8#
main74811-87001-06×2i198508-198808
BROWN,BROWN,TRIM4#
9015960005
main90159-60005
9015960116
main90159-60116
9016460010
main90164-60010
9016840055
main90168-40055
9018906020
main90189-06020
9321945014
main93219-45014
9323925014
main93239-25014
9331116016
main93311-16016
9331116020
main93311-16020

20 parts on this diagram · 1 diagram in section
