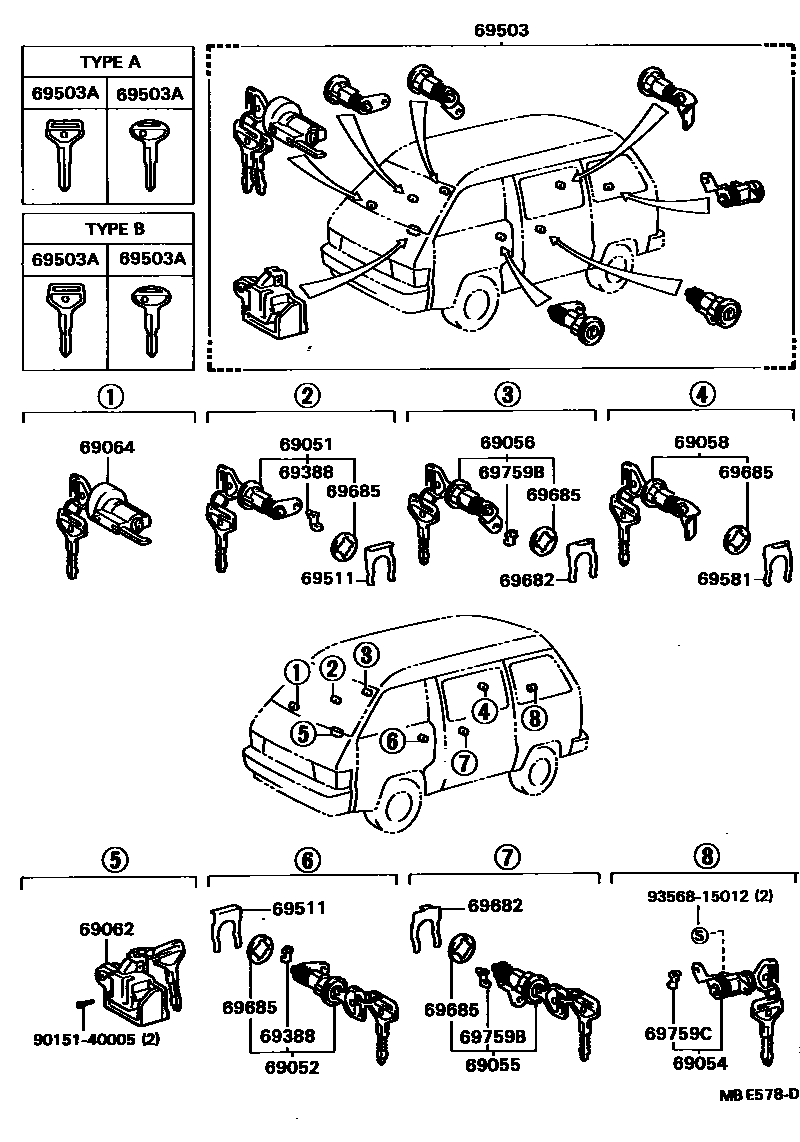

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-28010iCR21,YR20..EUR198211-198408

main69051-28011iYR2#,31..EUR198408-198708

sub69051-28012

main69051-28012iYR2#,31..EUR198708-198808

main69051-87003iCR21,YR2#..ARL,GEN198211-198408

sub69051-28020

main69051-87005iCR21,YR2#,31..ARL,GEN198408-198708

sub69051-28021

main69051-87007iYR21..GEN198708-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-28010iCR21,YR20..EUR198211-198408

main69052-28011iYR2#,31..EUR198408-198708

sub69052-28012

main69052-28012iYR2#,31..EUR198708-198808

main69052-87003iCR21,YR2#..ARL,GEN198211-198408

sub69052-28020

main69052-87005iCR21,YR2#,31..ARL,GEN198408-198708

sub69052-28021

main69052-87007iYR21..GEN198708-198808

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-28010iCR21,YR20..EUR198211-198408

main69055-28011iYR2#,31..EUR198408-198708

sub69055-28012

main69055-28012iYR2#,31..EUR198708-198808

main69055-87005iCR21,YR2#..ARL,GEN198211-198408

sub69055-28020

main69055-87007iCR21,YR2#,31..ARL,GEN198408-198708

sub69055-28021

main69055-87009iYR21..GEN198708-198808

sub69055-28012

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-28010iCR21,YR20..RHD..EUR198211-198408

main69054-28011iYR21..RHD..EUR198408-198708

sub69054-28012

main69054-28012iYR21..RHD..EUR198708-198808

main69054-87001iCR21,YR2#..RHD..(ARL,GEN)198211-198408

sub69054-87003

main69054-87003iCR21,YR21,31..RHD..(ARL,GEN)198408-198708

main69054-87005iCR21,YR21,31..ARL198708-198808

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-28010iCR21,YR20..LHD..EUR198211-198408

main69053-28011iYR2#,31..LHD..EUR198408-198708

sub69053-28012

main69053-28012iYR2#,31..LHD..EUR198708-198808

main69053-87003iYR2#..LHD..GEN198211-198408

sub69053-28020

main69053-87005iYR21..LHD..GEN198408-198708

sub69053-28021

main69053-87007iYR21..GEN198708-198808

sub69053-28012

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-28010iCR21,YR20,21..EUR198211-198708

main69058-87005iCR21,YR2#,31..ARL,GEN198211-198808

sub69058-28020

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-28010-02iCR21,YR20..DLX..EUR198211-198508

WINE,RED/MAROON,TRIM4#

sub69056-28010

main69056-28010-03iCR21,YR20..GL..EUR198211-198408

GRAY,GRAY,TRIM1#

sub69056-28010

main69056-28010-04iYR21..GL..EUR198408-198508

BLUE,BLUE,TRIM1#

sub69056-28010

main69056-28010-05iCR21,YR20..GL..EUR198211-198408

BEIGE,BEIGE,TRIM4#

sub69056-28010

main69056-28010-06iYR2#,31..GL..EUR198508-198808

BROWN,BROWN,TRIM4#

sub69056-28010

main69056-28010-13iYR2#,31..LHD..GL..EUR198608-198808

GRAY,GRAY,TRIM1#,8#

sub69056-28010

main69056-28010-14iYR21..GL..EUR198508-198808

BLUE,BLUE,TRIM8#

sub69056-28010

main69056-87001-02iCR21,YR2#..DLX..(ARL,GEN)198211-198508

WINE,RED/MAROON,TRIM4#

sub69056-28020

sub69056-87001

main69056-87001-03iYR2#..GL..(ARL,GEN)198211-198408

GRAY,GRAY,TRIM1#

sub69056-28020

sub69056-87001

main69056-87001-04iYR21..GL..(ARL,GEN)198408-198508

BLUE,BLUE,TRIM1#

sub69056-28020

sub69056-87001

main69056-87001-05iYR2#..GL..(ARL,GEN)198211-198408

BEIGE,BEIGE,TRIM4#

sub69056-28020

sub69056-87001

main69056-87001-06iYR2#,31..GL..(ARL,GEN)198508-198808

BROWN,BROWN,TRIM4#

sub69056-28020

sub69056-87001

main69056-87001-13iYR21..GL..GEN198608-198808

GRAY,GRAY,TRIM1#

sub69056-28020

sub69056-87001

main69056-87001-14iYR2#,31..GL..(ARL,GEN)198508-198808

BLUE,BLUE,TRIM8#

sub69056-28020

sub69056-87001

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-28010iCR21,YR2#,31..EUR198211-198708

main69057-28011iYR2#,31..EUR198708-198808

main69057-87001iCR21,YR2#,31..ARL,GEN198211-198708

sub69057-28020

main69057-87004iYR21..GEN198708-198808

sub69057-28021

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iYR2#,31..EUR198408-198808

LH

main69759-20080iYR2#,31..EUR198408-198808

RH

main69759-20090iCR21,YR2#,31..ARL,GEN198408-198808

LH

main69759-20090iYR2#,31..EUR198408-198808

RH

main69759-24080iCR21,YR2#198211-198408

RH

main69759-24090iCR21,YR2#198211-198408

LH

69503CYLINDER SET, LOCK

main69005-28010-02iYR20..LHD..DLX..GEN198211-198408

WINE,RED/MAROON,TRIM4#

main69005-28010-03iYR2#..GL..GEN198211-198408

GRAY,GRAY,TRIM1#

main69005-28010-05iYR2#..GL..GEN198211-198408

BEIGE,BEIGE,TRIM4#

main69005-28011-02iYR21..GL..GEN198408-198508

WINE,WINE,TRIM4#

sub69005-28011

sub69005-28012

main69005-28011-04iYR21..GL..GEN198408-198508

BLUE,BLUE,TRIM1#

sub69005-28011

sub69005-28012

main69005-28011-06iYR21..GL..GEN198508-198608

BROWN,BROWN,TRIM4#

sub69005-28011

sub69005-28012

main69005-28011-14iYR21..GL..GEN198508-198608

BLUE,BLUE,TRIM8#

sub69005-28011

sub69005-28012

main69005-28012-03iYR21..GL..GEN198608-198708

GRAY,SHADOW GRAY,TRIM1#

sub69005-28090

main69005-28012-06iYR21..GL..GEN198608-198708

BROWN,BROWN,TRIM4#

sub69005-28090

main69005-28013-03iYR21..GL..GEN198708-198808

GRAY,SHADOW GRAY,TRIM1#

sub69005-28091

main69005-28013-06iYR21..GL..GEN198708-198808

BROWN,BROWN,TRIM4#

sub69005-28091

main69005-28020-02iCR21,YR20..LHD..DLX..EUR198211-198408

WINE,RED/MAROON,TRIM4#

main69005-28020-03iCR21,YR20..LHD..GL..EUR198211-198408

GRAY,GRAY,TRIM1#

main69005-28020-05iCR21,YR20..LHD..GL..EUR198211-198408

BEIGE,BEIGE,TRIM4#

main69005-28021-02iYR21..LHD..GL..EUR198408-198508

WINE,WINE,TRIM4#

sub69005-28021

sub69005-28022

main69005-28021-04iYR21..LHD..GL..EUR198408-198508

BLUE,BLUE,TRIM1#

sub69005-28021

sub69005-28022

main69005-28021-06iYR21..LHD..GL..EUR198508-198608

BROWN,BROWN,TRIM4#

sub69005-28021

sub69005-28022

main69005-28021-14iYR21..LHD..GL..EUR198508-198608

BLUE,BLUE,TRIM8#

sub69005-28021

sub69005-28022

main69005-28022-03iYR2#,31..LHD..GL..EUR198608-198708

GRAY,SHADOW GRAY,TRIM1#

sub69005-28022

main69005-28022-06iYR2#,31..LHD..GL..EUR198608-198708

BROWN,BROWN,TRIM4#

sub69005-28022

main69005-28023-03iYR2#,31..LHD..GL..EUR198708-198808

GRAY,SHADOW GRAY,TRIM1#

sub69005-28023

main69005-28023-06iYR2#,31..LHD..GL..EUR198708-198808

BROWN,BROWN,TRIM4#

sub69005-28023

main69005-28030-02iCR21,YR20..RHD..DLX..EUR198211-198408

WINE,RED/MAROON,TRIM4#

main69005-28030-03iYR20..RHD..GL..EUR198211-198408

GRAY,GRAY,TRIM1#

main69005-28030-05iYR20..RHD..GL..EUR198211-198408

BEIGE,BEIGE,TRIM4#

main69005-28031-02iYR21..RHD..GL..EUR198408-198508

WINE,WINE,TRIM4#

sub69005-28031

sub69005-28032

main69005-28031-04iYR21..RHD..GL..EUR198408-198508

BLUE,BLUE,TRIM1#

sub69005-28031

sub69005-28032

main69005-28031-06iYR21..RHD..EUR198508-198608

BROWN,BROWN,TRIM4#

sub69005-28031

sub69005-28032

main69005-28031-14iYR21..RHD..EUR198508-198608

BLUE,BLUE,TRIM8#

sub69005-28031

sub69005-28032

main69005-28032-04iYR21..RHD..EUR198608-198708

BLUE,BLUE,TRIM8#

main69005-28032-06iYR21..RHD..EUR198608-198708

BROWN,BROWN,TRIM4#

main69005-28033-04iYR21..RHD..EUR198708-198808

BLUE,BLUE,TRIM8#

sub69005-28033

main69005-28033-06iYR21..RHD..EUR198708-198808

BROWN,BROWN,TRIM4#

sub69005-28033

main69005-28060iYR21..LHD..DLX..GEN198408-198708

main69005-28070iYR2#,31..LHD..DLX..EUR198408-198708

main69005-28080iYR21..RHD..DLX..EUR198408-198508

main69005-28110iYR21..DLX..GEN198608-198708

W/*FLO

sub69005-28100

main69005-28111iYR21..DLX..GEN198708-198808

sub69005-28101

main69005-28120iYR2#,31..DLX..EUR198608-198708

W/*FLO

main69005-28121iYR2#,31..DLX..EUR198708-198808

main69005-87021-02iCR21,YR2#..RHD..DLX..(ARL,GEN)198211-198408

WINE,RED/MAROON,TRIM4#

main69005-87021-03iYR2#..GL..ARL198211-198408

GRAY,GRAY,TRIM1#

main69005-87021-05iYR2#..GL..ARL198211-198408

BEIGE,BEIGE,TRIM4#

main69005-87028-06iYR2#,31..GL..ARL198508-198708

W/FUEL LID OPENER,BROWN,BROWN,TRIM4#

sub69005-87028

main69005-87028-14iYR2#,31..GL..ARL198508-198708

W/FUEL LID OPENER,BLUE,BLUE,TRIM8#

sub69005-87028

main69005-87029iCR21,YR2#..DLX..ARL198508-198708

W/FUEL LID OPENER

main69005-87030iCR21,YR2#..RHD..DLX..(ARL,GEN)198408-198708

main69005-87036-02iYR21..GL..ARL198408-198508

WINE,WINE,TRIM4#

sub69005-87036

main69005-87036-04iYR21..GL..ARL198408-198508

GRAY,BLUE,TRIM1#

sub69005-87036

main69005-87036-06iYR2#,31..GL..ARL198508-198608

BROWN,BROWN,TRIM4#

sub69005-87036

main69005-87036-14iYR2#,31..GL..ARL198508-198608

BLUE,BLUE,TRIM8#

sub69005-87036

main69005-87041-04iYR2#,31..GL..ARL198708-198808

BLUE,BLUE,TRIM8#

main69005-87041-06iYR2#,31..GL..ARL198708-198808

BROWN,BROWN,TRIM4#

main69005-87042iCR21,YR2#..DLX..ARL198708-198808

main90999-00124iCR21,YR2#,31..ARL,GEN198608-198808

TYPE A,MASTER KEY,W/PROTECTOR

69503AKEY, BLANK

main90999-00067iCR21,YR2#,31..ARL,GEN198211-198808

MASTER KEY,TYPE A,MASTER KEY

main90999-00071iCR21,YR2#..ARL,GEN198211-198808

SUB KEY,TYPE A,SUB KEY

main90999-00097iCR21,YR2#,31..EUR198211-198808

MASTER KEY,W(*68),TYPE A,MASTER KEY

main90999-00098iCR21,YR20..EUR198211-198808

SUB KEY,W(*68),TYPE A,SUB KEY

main90999-00101iCR21,YR2#,31..EUR198211-198808

MASTER KEY,W(*68),TYPE B,MASTER KEY

main90999-00102iYR2#,31..GL..EUR198211-198808

W(*68),TYPE B,SUB KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iCR21,YR2#,31198211-198808

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iCR21,YR2#,31198211-198708

69682RETAINER, LOCK CYLINDER

main69512-87001iCR21,YR2#,31198211-198808

69685PAD, LOCK CYLINDER

main69513-87001iCR21,YR2#,31198211-198808

sub69513-32010

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-20080iYR2#,31..LHD..EUR198408-198808

main69759-20090iYR21..LHD..GEN;CR21,YR2#,31..RHD198408-198808

main69759-24080iCR21,YR2#..LHD198211-198408

main69759-24090iCR21,YR2#..RHD198211-198408

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iCR21,YR2#,31198408-198808

main69759-24090iCR21,YR2#198211-198408

9015140005

main90151-40005

9356815012

main93568-15012
