FRONT VENTILATOR

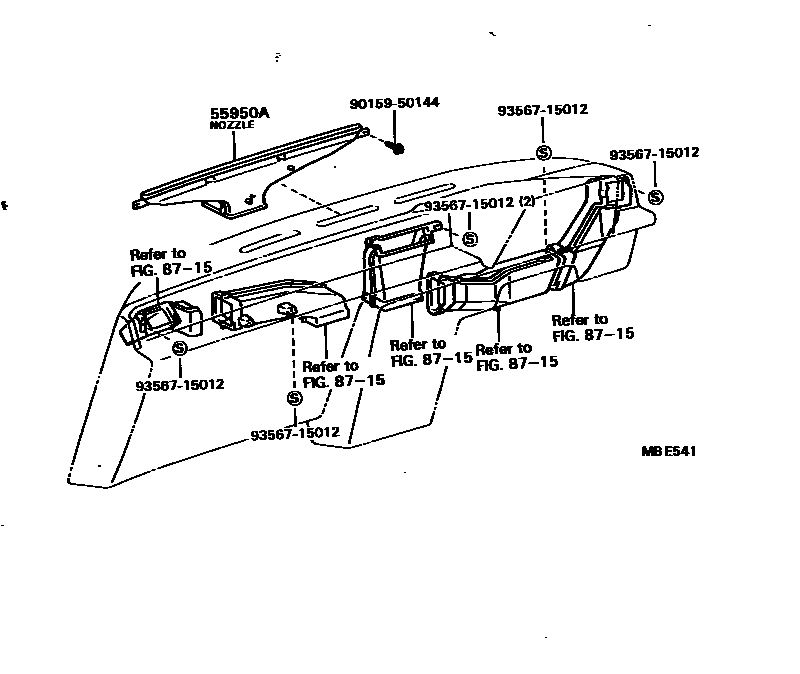

Parts diagram

55950ANOZZLE ASSY, DEFROSTER

main55950-28010i198211-198808

main55950-87003i198211-198808

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950144

main90159-50144

9356715012

main93567-15012

4 parts on this diagram · 1 diagram in section
