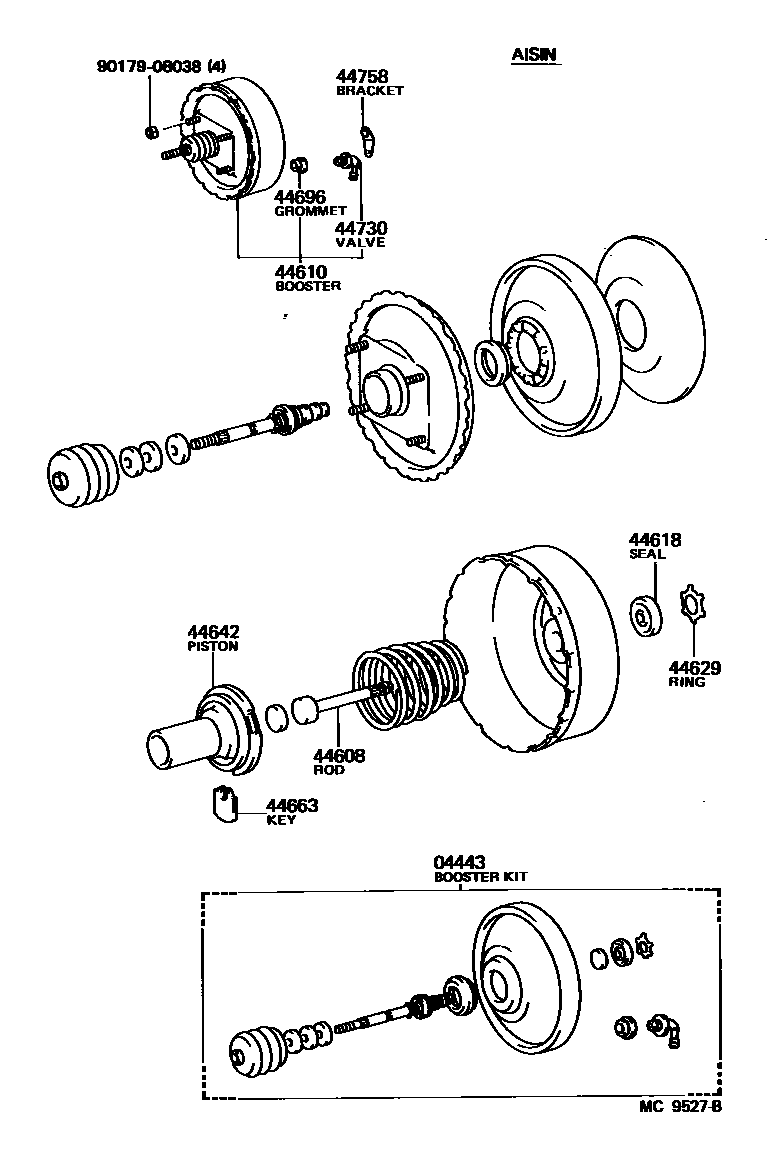

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04443BOOSTER KIT, BRAKE

main04443-28070iYR2#..ARL,GEN198211-198408

sub04443-28071

main04443-28071iYR21..ARL,GEN198408-198508

main04443-28090iCR21..ARL,GEN198305-198408

sub04443-28091

main04443-28091iCR21198408-198508

main04443-28120iYR20..EUR198211-198408

sub04443-28121

main04443-28121iYR21..EUR198408-198508

main04443-28130iCR21..EUR198305-198408

main04443-28200iYR22,31..ARL198508-198808

JKC

main04443-28210iYR21..RHD..EUR198508-198808

JKC

main04443-28230iYR21..RHD..EUR198508-198608

AISIN

main04443-28240iYR2#,31..ARL198508-198808

AISIN

main04443-28250iCR21198508-198808

AISIN

main04443-28260iCR21198508-198808

JKC

main04443-28270iYR21,31..LHD..EUR198608-198808

JKC

main04443-28280iYR21..RHD..EUR198608-198808

AISIN

main04443-28290iYR21..EUR198611-198808

AISIN

main04443-28300iYR21..EUR198611-198808

JKC

main04443-28310iYR21..ARL,GEN198611-198808

AISIN

main04443-28320iYR21..ARL,GEN198611-198808

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCR21,YR21..ARL,GEN198408-198508

main44606-20800iCR21,YR2#,31198508-198808

AISIN

main44606-32010iCR21,YR2#..ARL,GEN198211-198408

main44608-17090iCR21,YR2#,31198709-198808

JKC

main44608-20810iCR21,YR2#,31198508-198709

JKC

main44608-32020iCR21,YR2#..EUR198211-198508

44610BOOSTER ASSY, BRAKE

main44610-28140iYR2#..RHD..(ARL,GEN)198211-198408

sub44610-28141

main44610-28141iYR21..RHD..(ARL,GEN)198408-198508

main44610-28160iCR21..ARL,GEN198305-198408

sub44610-28161

main44610-28161iCR21198408-198508

main44610-28190iYR20..RHD..EUR198211-198408

sub44610-28191

main44610-28191iYR21..RHD..EUR198408-198508

main44610-28200iCR21..RHD..EUR198305-198408

main44610-28210iYR20..LHD..EUR198211-198408

sub44610-28211

main44610-28211iYR21..LHD..EUR198408-198508

main44610-28220iCR21..LHD198305-198408

main44610-28230iYR2#..LHD..GEN198211-198408

sub44610-28231

main44610-28231iYR21..LHD..GEN198408-198508

main44610-28300iYR21..GEN198508-198602

main44610-28350iYR21..RHD..EUR198508-198608

main44610-28360iYR21..LHD..EUR198508-198608

main44610-28380iCR21198508-198808

sub44610-28650

main44610-28400iYR2#,31..ARL198508-198808

main44610-28460iYR21..GEN198602-198611

sub44610-28300

main44610-28470iYR22,31..EUR198608-198808

AISIN

sub44610-28720

main44610-28480iYR2#,31..LHD..EUR198608-198808

JKC

main44610-28490iYR21..RHD..EUR198608-198611

main44610-28520iYR21..GEN198611-198808

main44610-28530iYR21..EUR198611-198808

sub44610-28700

main44610-28560iYR21..LHD..EUR198611-198808

main44610-28570iYR21..ARL198611-198808

sub44610-28670

44618SEAL, BOOSTER BODY

main44621-14030iCR21,YR2#,31198508-198808

main44621-28120iCR21,YR2#..ARL,GEN198211-198508

44629RING, CIRCULAR INTERNAL

main44628-28120iCR21,YR2#..ARL,GEN198211-198508

main44628-60010iCR21,YR2#,31198508-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iCR21,YR2#,31198508-198808

main44642-32010iCR21,YR2#..ARL,GEN198211-198508

44663KEY, VALVE STOPPER

main44635-20800iCR21,YR2#,31198508-198808

main44635-28120iCR21,YR2#..ARL,GEN198211-198508

44696GROMMET, CHECK VALVE

main90480-24015iYR22,31..EUR198705-198808

main90480-24439iYR2#,31..RHD198508-198705

AISIN

main90480-24439iYR2#..ARL,GEN198211-198508

main90480-24517iYR22,31..ARL198508-198705

JKC

sub90480-24015

main90480-24517iCR21,YR2#..EUR198211-198508

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iYR21..LHD198508-198705

AISIN

main44730-14060iYR21,31..ARL198508-198705

JKC

sub44730-28010

sub90480-24015

main44730-20060iYR2#..ARL,GEN198211-198508

main44730-22090iYR2#..EUR198211-198508

main44730-24020iYR21198611-198808

main44730-28010iYR22,31..EUR198705-198808

main44730-60040iCR21198305-198808

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iYR2#..LHD198211-198508

main44758-28050iYR2#..RHD198211-198508

main44758-28060iYR22,31..ARL198508-198808

main44758-28070iYR21..LHD198508-198611

main44758-28080iYR21198611-198808

9017908038

main90179-08038

11 parts on this diagram · 8 diagrams in section
