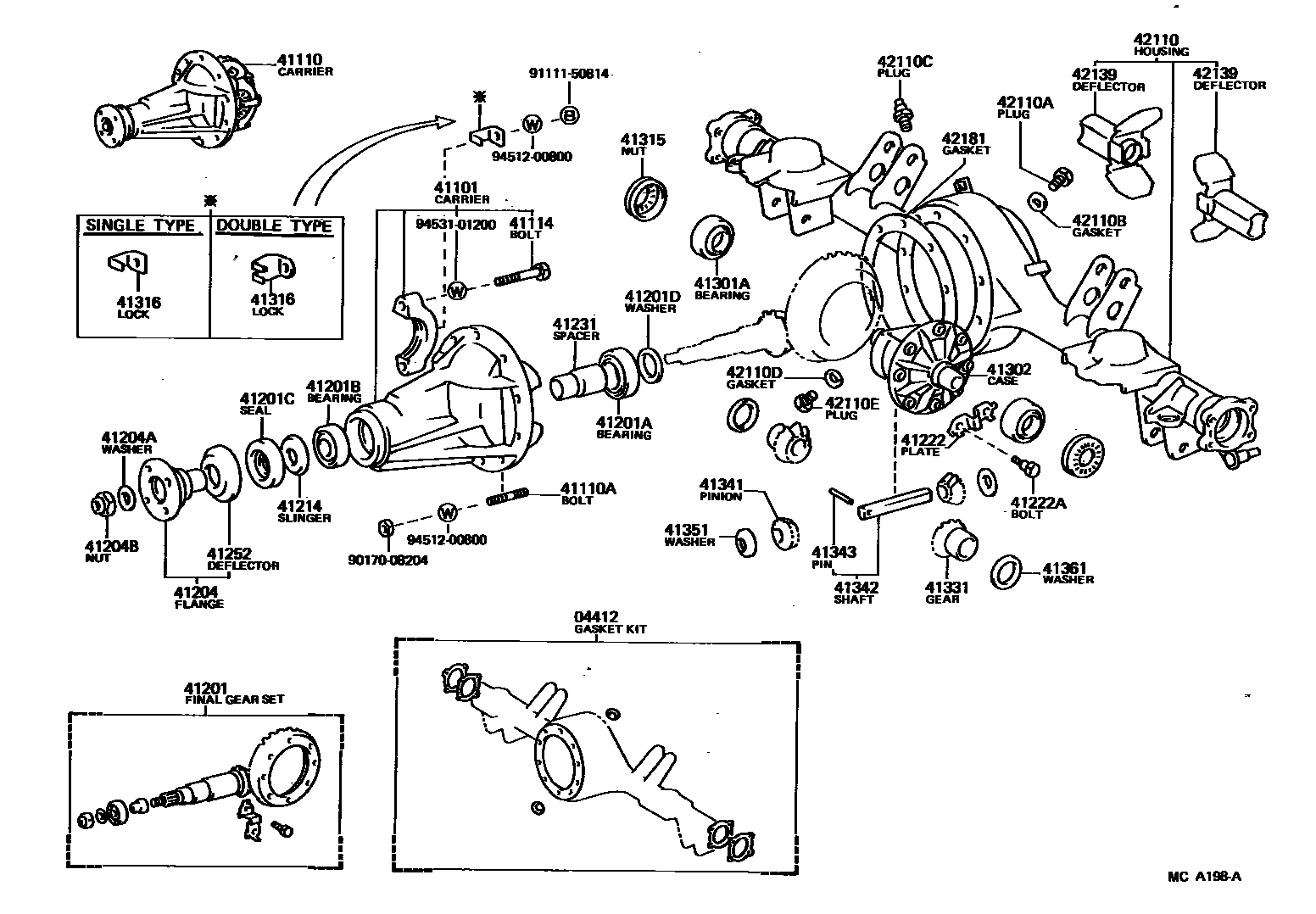

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
W/LSD
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:10=4.100,R=41:10,*AXC=E292
*FGR=43:10=4.300,R=43:10,*AXC=E282
*FGR=41:10=4.100,R=41:10,*AXC=F292
*FGR=43:10=4.300,R=43:10,*AXC=E282
*FGR=41:9=4.555,R=41:9,*AXC=E252
*FGR=43:10=4.300,R=43:10,*AXC=F283
*FGR=41:9=4.555,R=41:9,*AXC=F253,W(LSD)
*FGR=41:10=4.100,R=41:10,*AXC=F293
*FGR=43:10=4.300,R=43:10,*AXC=F282
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
R=43:10,*AXC=E282
*FGR=43:10=4.300,R=43:10,*AXC=E282
*FGR=41:10=4.100,R=41:10,*AXC=E292
*FGR=41:10=4.100,R=41:10,*AXC=E292
*FGR=41:10=4.100,R=41:10,*AXC=F292
41201ABEARING (FOR REAR DRIVE PINION REAR)
NACHI
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
sub90311-38047
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.36
T=2.39,MARK 06,T=2.39
T=2.42,MARK 07,T=2.42
T=2.43,MARK 08,T=2.45
T=2.48,MARK 09,T=2.48
T=2.51,MARK 10,T=2.51
T=2.54,MARK 11,T=2.54
T=2.57,MARK 12,T=2.57
T=2.60,MARK 13,T=2.60
T=2.63,MARK 14,T=2.63
T=2.66,MARK 15,T=2.66
T=2.69,MARK 16,T=2.69
T=2.72,MARK 17,T=2.72
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02,T=1.0
T=1.10,MARK 03,T=1.1
T=1.20,MARK 04,T=1.2
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
T=1.76,MARK 1,W/LSD,T=1.76,MARK 1
T=1.80,MARK 2,W/LSD,T=1.80,MARK 2
T=1.84,MARK 3,W/LSD,T=1.84,MARK 3
T=1.88,MARK 4,W/LSD,T=1.88,MARK 4
T=1.92,MARK 5,W/LSD,T=1.92,MARK 5
T=1.96,MARK 6,W/LSD,T=1.96,MARK 6
T=2.00,MARK 7,W/LSD,T=2.00,MARK 7
T=2.04,MARK 8,W/LSD,T=2.04,MARK 8
T=2.08,MARK 9,W/LSD,T=2.08,MARK 9
T=2.12,MARK 0,W/LSD,T=2.12,MARK 0
T=1.76,MARK A,W/LSD,T=1.76,MARK A
T=1.80,MARK B,W/LSD,T=1.80,MARK B
T=1.84,MARK C,W/LSD,T=1.84,MARK C
T=1.88,MARK D,W/LSD,T=1.88,MARK D
T=1.92,MARK E,W/LSD,T=1.92,MARK E
T=1.96,MARK F,W/LSD,T=1.96,MARK F
T=2.00,MARK G,W/LSD,T=2.00,MARK G
T=2.04,MARK H,W/LSD,T=2.04,MARK H
T=2.08,MARK J,W/LSD,T=2.08,MARK J
T=2.12,MARK K,W/LSD,T=2.12,MARK K
T=1.0,T=1.0
T=1.1,T=1.1
T=1.2,T=1.2
T=1.3,T=1.3
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
W/LSD
42181GASKET, REAR DIFFERENTIAL CARRIER
W/LSD
9017008204
main90170-08204
9111150814
main91111-50814
9451200800
main94512-00800
9453101200
main94531-01200
40 parts on this diagram · 4 diagrams in section
