TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

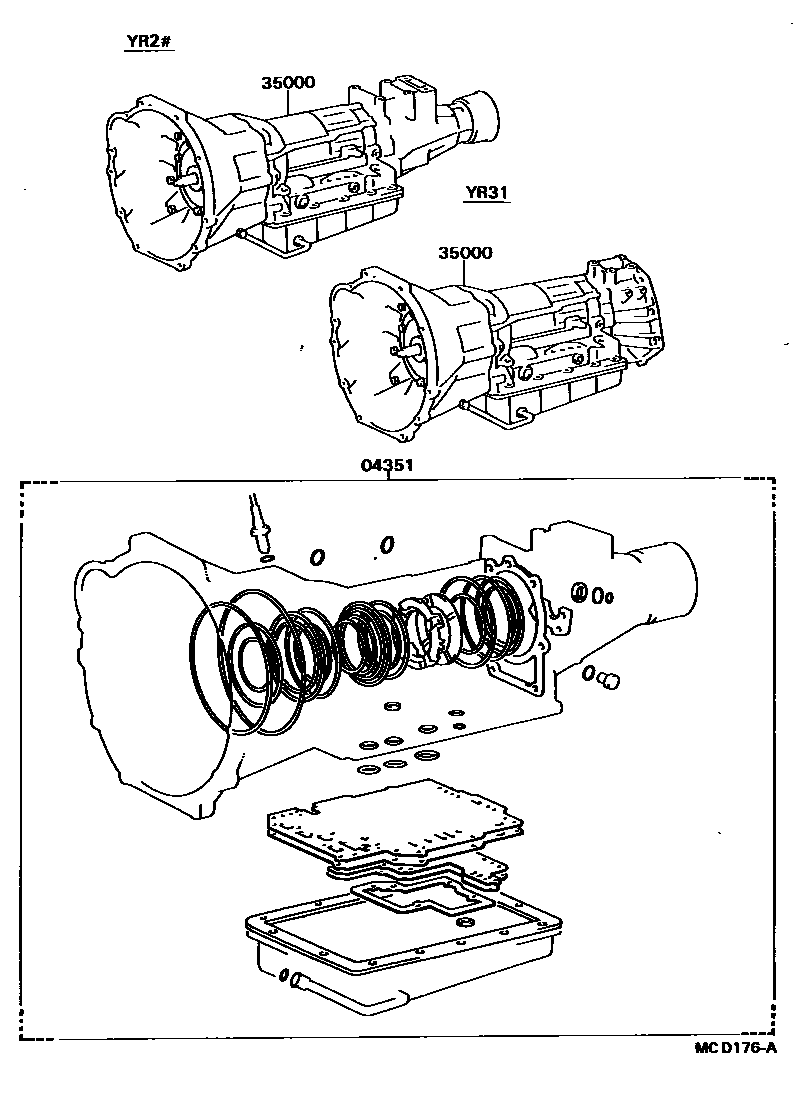

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-28020i198508-198808

main04351-30063i198211-198409

main04351-30064i198409-198505

main04351-30100i198505-198808

35000TRANSMISSION ASSY, AUTOMATIC

main35000-28040i198211-198408

main35000-28041i198408-198508

main35000-28050i198211-198401

main35000-28080i198401-198408

main35000-28081i198408-198508

main35000-28120i198508-198707

main35000-28121i198707-198808

main35000-28140i198508-198808

main35000-28150i198508-198708

main35000-28190i198601-198808

main35000-28230i198708-198808

main35000-28240i198701-198707

main35000-28241i198707-198808

2 parts on this diagram · 1 diagram in section
