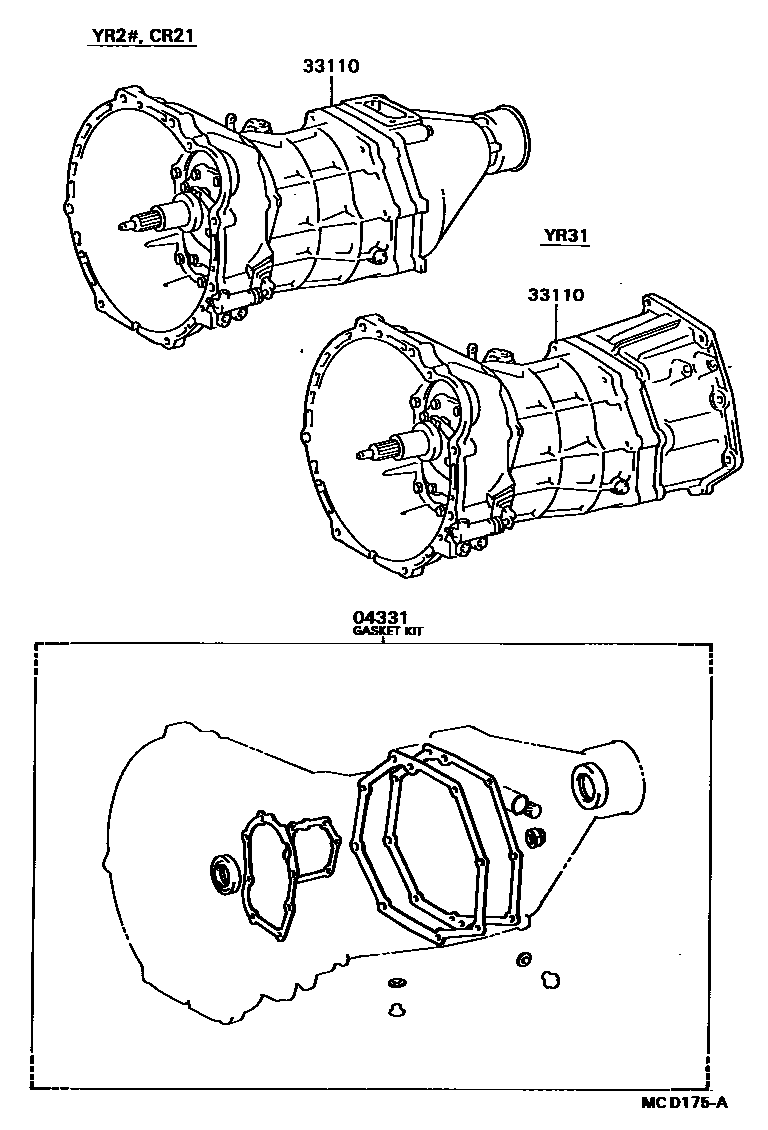

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35080iCR21,YR2#,31..5F198211-198808

33110TRANSMISSION ASSY, MANUAL

main33030-28190iCR21198508-198808

*AXC=E282

main33030-28250iCR21198608-198808

*AXC=E292

main33110-28200iCR21198305-198508

main33110-28210iYR20..5F..(EUR,GEN)198211-198408

*AXC=E292

main33110-28220iYR21..5F198401-198408

main33110-28221iYR21..5F198408-198508

*AXC=E282

main33110-28231iYR21..LHD..5F..EUR198411-198508

*AXC=E292

main33110-28240iYR20..GEN198211-198408

*AXC=E282

main33110-28906iYR21..5F198508-198808

*AXC=E282

main33110-28907iYR31..5F198601-198808

main33110-28909iYR21..5F..ARL198508-198808

*AXC=E292

2 parts on this diagram · 1 diagram in section
