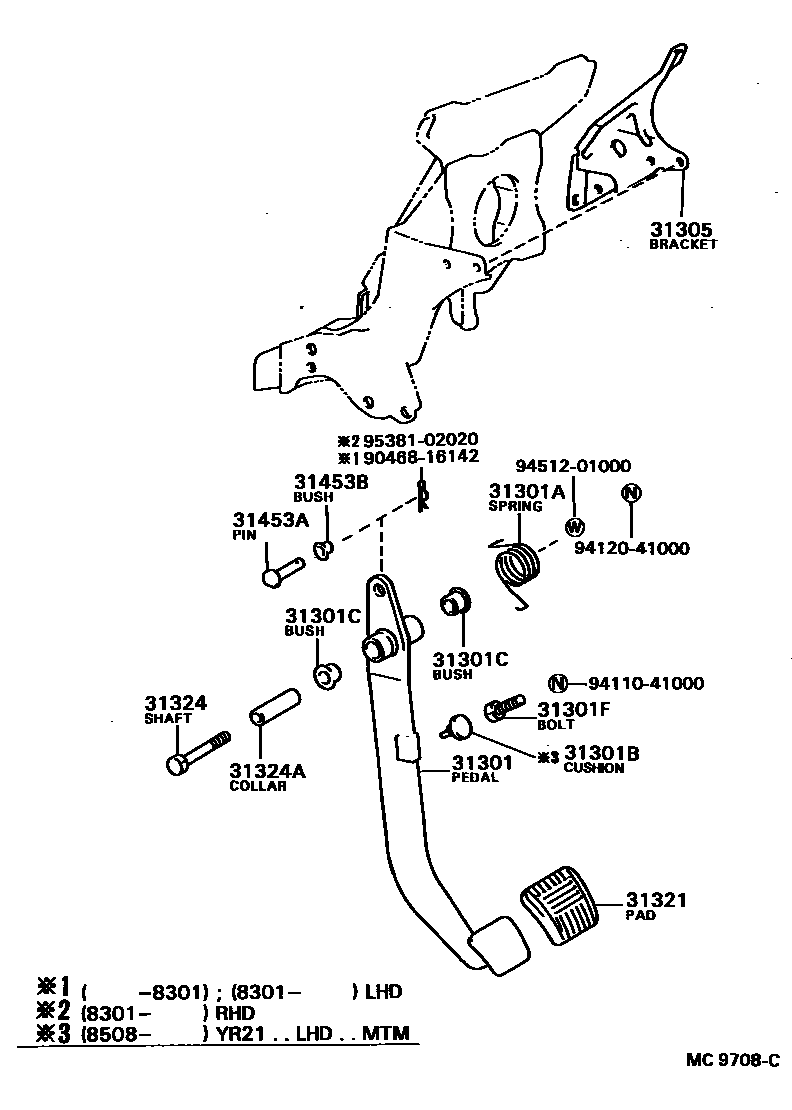

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28060iCR21,YR2#,31..RHD..5F198211-198808

main31301-28080iCR21,YR20,21..LHD..5F198211-198808

main31301-28090iYR22..EUR198608-198808

SWEDEN SPEC

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32012iCR21,YR2#,31..RHD..5F198211-198808

main90508-32015iCR21,YR2#..LHD..5F198211-198408

main90508-35021iYR21..LHD..5F198408-198808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iYR21..LHD..5F198508-198808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iCR21,YR2#,31..5F198211-198808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iCR21,YR2#,31..5F198211-198808

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55156-87002iCR21,YR2#,31..RHD..5F198211-198808

main55181-28010iCR21,YR2#,31..LHD..5F198211-198808

31321PAD, CLUTCH PEDAL

main31321-14020iCR21,YR2#,31..5F198211-198808

31324SHAFT, CLUTCH PEDAL

main90101-10043iCR21,YR20,21..LHD..5F198211-198808

main91111-51060iCR21,YR2#,31..RHD..5F198211-198611

main91121-51060iCR21,YR2#,31..RHD..5F198611-198808

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iCR21,YR20,21..LHD..5F198211-198808

main90387-10003iCR21,YR2#,31..RHD..5F198211-198808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iCR21,YR2#,31..5F198211-198808

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCR21,YR2#,31..5F198211-198808

9046816142

main90468-16142

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

9538102020

main95381-02020

16 parts on this diagram · 5 diagrams in section
